Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2050*880*1300mm
-
Machine Weight:
-
442 kg
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1Year
-
Maximum load capacity (KG):
-
500
-
Cargo hopper size: (MM):
-
1050*730*730
-
Tipping method::
-
Hydraulic tipping
-
Cargo hopper capacity: (dm ³):
-
200
-
Tilt angle of cargo hopper: (°):
-
100
-
Climbing ability: (°):
-
20
-
Bucket lifting method::
-
Hydraulic lifting
-
operation mode::
-
Self loading and unloading
-
Emission standards::
-
EPA,Ouwu
Quick Details
-
Engine Brand:
-
Bailitong Pioneer
-
Power:
-
208CC, 6.5HP
-
Brand Name:
-
YHMG
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2050*880*1300mm
-
Machine Weight:
-
442 kg
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1Year
-
Maximum load capacity (KG):
-
500
-
Cargo hopper size: (MM):
-
1050*730*730
-
Tipping method::
-
Hydraulic tipping
-
Cargo hopper capacity: (dm ³):
-
200
-
Tilt angle of cargo hopper: (°):
-
100
-
Climbing ability: (°):
-
20
-
Bucket lifting method::
-
Hydraulic lifting
-
operation mode::
-
Self loading and unloading
-
Emission standards::
-
EPA,Ouwu
Products and services are as follows:
1, Can customize your LOGO
2, Can customize your product nameplate
3, Colors can be customized for multiple devices
4, Can customize product packaging wooden box for you
5, According to your requirements, we can customize your products!
Our factory will take high quality, high standard, high efficiency and high service as the strategic goal of cooperation, and provide first-class products for users all over the world. Support customized service cooperation such as OEM and ODM, and support visual production services!

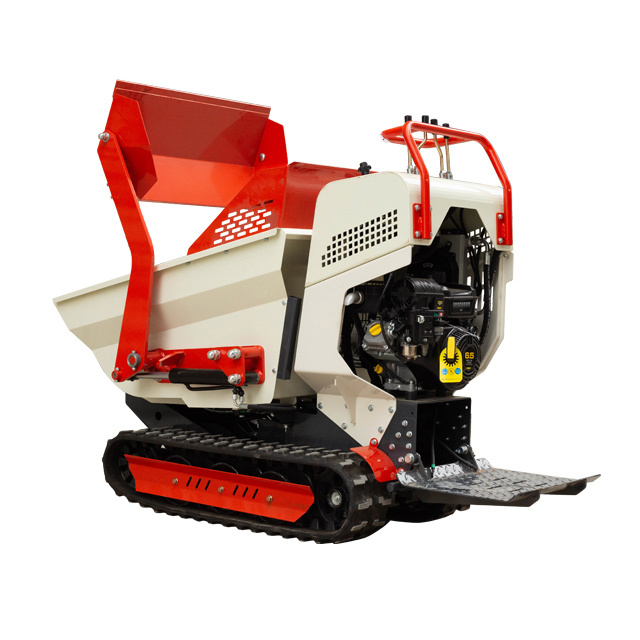

Certified manufacturer CE Approved Gasoline Engine Powered 500Kg Track Small Loader Dumper mini dumper 4x4
| Engine M odel: | Bailitong Pioneer |
| Engine T ype | Single cylinder, OHV, 4-stroke, air cooling |
| displacement:(ML) | 208 CC |
|
Rated P ower:(HP/rpm) |
6.5 HP/3600rpm |
| Fuel T ype | 92 # G asoline |
|
Fuel C onsumption:(g/kw·h) |
≤ 0.395 |
| Fuel Tank capacity:(L) | 3.6 |
| Engine oil capacity:(L) | 0.6 |
| Total Weight:(KG) | 442 |
| Max loading weight:(KG) | 500 |
|
Bucket size with foot pedal:(MM) |
2050*880*1300 |
| Machin size ( Without pedal, without bucket ):(MM) | 1570*880*1300 |
|
Container size :(MM) |
1050*730*730 |
| Chassis width :(MM) | 700 |
| track width :(mm) | 180 |
| Track grounding length :(mm) | 1000 |
| Chassis ground clearance:(mm) | 110 |
| Cargo box Capacity:( dm³ ) | 200 |
| Tipping Systme: | Hydraulic T ipper |
| Tilting A ngle:(°) | 100 |
| Walking Speed:(km/h) | 2.88 |
| Minimu m T urning radius:(m) | 1.15 |
| T rack gauge:(mm) | 520 |
| Chassis ground clearance :(mm) | 100 |
| Climbing abillty:(°) | 20 |
| Hydraulic oil model: | 46 # A nti-wear H ydraulic O il |
| Hydraulic tank capacity:(L) | 15 |
