Quick Details
-
Power:
-
30
-
Weight:
-
4800 kg
-
Product name:
-

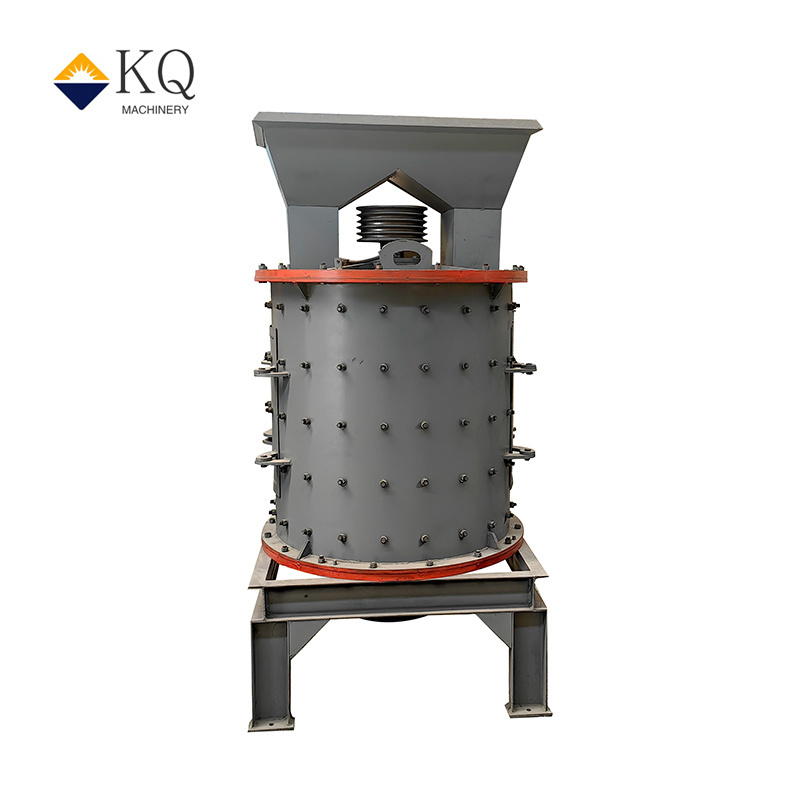

Vertical axis sand making machine
-
Function:
-
Rock Stone Crusher
-
Color:
-
Customised
-
The Machines classification:
-
Stone Crushing Line
-
Installation:
-
Video guide
-
Raw material:
-
Stones Rocks Ores
-
Advantage:
-
Long Service Life
-
Keyword:
-
Vertical axis sand making machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KQ
-
Voltage:
-
380v
-
Power:
-
30
-
Weight:
-
4800 kg
-
Product name:
-
Vertical axis sand making machine
-
Function:
-
Rock Stone Crusher
-
Color:
-
Customised
-
The Machines classification:
-
Stone Crushing Line
-
Installation:
-
Video guide
-
Raw material:
-
Stones Rocks Ores
-
Advantage:
-
Long Service Life
-
Keyword:
-
Vertical axis sand making machine
Products Description
Vertical compound crusher (sand crusher), is one of the common equipment in crushing plant and sand making plant. it can be widely used in crushing raw materials, clinker of cement plant, also available in medium hardness materials fine crushing of dolomite, lead-zinc mine, serpentine, blast furnace slag, coal gangue, phosphate rock and so on.
Applicable Materials
Dealing with the material with the side length 500mm, not more than 320Mpa anti-pressure strength.
Dealing with the material with the side length 500mm, not more than 320Mpa anti-pressure strength.
Details Images
Working Principle
Materials fall into the high-speed rotation impeller from the above of machine, under the action of high-speed centrifugal force, have high-speed impact with another umbrella form materials which flow around the impeller, after they attack each other, then discharged from the bottom, it forms close-circuit and with many times circulation, it can achieve the required product size by screening equipment controlling.
Product Advantages
1.Simple structure low operation cost. using the principle of stone strike stone , smaller wear.
2.High crushing ratio, low energy consumption.
3.It can crush material with high moisture content, humidity can reach 8%.
5.Working noise is less than 75 db, less dust pollution.
6.Suitable for breaking medium hard, especially like clay, limestone and gypsum
Product Paramenters
|
Model
|
PFL-800
|
PFL-1000
|
PFL-1250
|
PFL-1500
|
PFL-1750
|
|
Feed Grain(mm)
|
100
|
120
|
150
|
180
|
200
|
|
Material-in Size (mm)
|
0-5
|
0-5
|
0-5
|
0-5
|
0-5
|
|
Trening Capacity(t/h)
|
10-20
|
20-40
|
40-70
|
70-100
|
130-190
|
|
Motor Power (kw)
|
22
|
45-55
|
75
|
90-110
|
132-160
|
|
Maine Shaft Speed(r/min)
|
934
|
769
|
530
|
495
|
424
|
|
Overall Dimension(mm)
|
2100*1200*1700
|
2600*1400*1900
|
2800*1600*2100
|
3100*1900*2200
|
3710*2360*2390
|
|
Weight(t)
|
2.3
|
4.5
|
6.2
|
8.3
|
12
|
