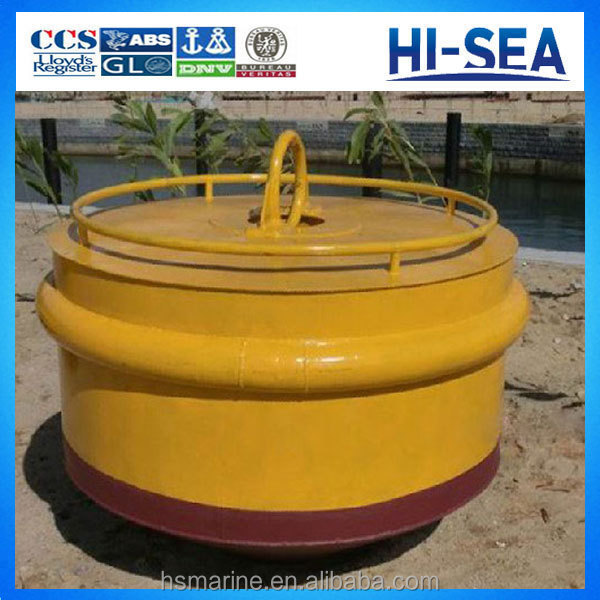

Wharf Type Ship Steel Mooring Buoy

FOB Reference Price: Get Latest Price

≥1 Sets

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Name:: Wharf Type Ship Steel Mooring Buoy

Material:: Marine Steel Plate

Size:: Customized

Application:: Anchorage Berth Area/Harbor/Marina/Breeding Areas

Certificate:: CCS.ABS.LR.BV.GL.DNV.NK

Customized Service:: Yes

Quick Details

Place of Origin:: Chongqing, China

Brand Name:: Hi-Sea

Model Number:: Wharf Type Mooring Buoy

Model Name:: Wharf Type Ship Steel Mooring Buoy

Material:: Marine Steel Plate

Size:: Customized

Application:: Anchorage Berth Area/Harbor/Marina/Breeding Areas

Certificate:: CCS.ABS.LR.BV.GL.DNV.NK

Customized Service:: Yes

Product Description

Wharf Type Ship Steel Mooring Buoy

mooring buoy/steel mooring buoy/ship steel mooring buoy

Mooring buoy is composed of a drum body (floating drum), mooring ring, anchor chain, anchor and other parts of the ship mooring facilities.

Ship steel mooring buoy is a mooring mode that generally used to resist typhoons and moor ships in sheltered anchorage or haven by mooring the ship bow monophyletic to the mooring water drum.

The mooring buoy, shall meet the requirements of the calculation of the mooring force, the anchorage force and so on. Generally processed and produced by marine steel plate.

This product uses the production and processing of steel materials, suitable for delivery in the waters of port, wharf, anchorage.

Product Features

1. Good Stability

2. Long Service Life

3. High Luminous Efficiency

4. Convenient Installation and Maintenance

5. High Safety Performance

6. Energy Saving

7. Environment Protection

8. High Wind Resistance Performance

9. Strong Anti Hail Ability

10. Economical and Practical

Product Specification

Name	HS-1.5	HS-2.0	HS-3.3(G111)	HS-3.7(G111)	HS-4.0(G1)
Mooring Ring(m)	0.4	0.5	0.6	0.6	0.6
Buoy Material	Marine Steel Plate
Buoy Diameter(m)	1.5	2	3.3	3.7	4.0
Buoy Height(m)	1	1.2	1.8	2	2.2
Freeboard(m)	0.7	0.8	1	1.2	1.5
Max Swing Angle(°)	3~5
Max Buoyancy(m)	1.5	3.5	15	21	27.3
Static Buoyancy(t)	1	2	12	18	21
Mooring System(mm)	38	60	90	100	100
Heavy Weight(t)	2	2	3	5	8
Anchor(t)	5	8	10	20	30
Suitable Water Depth for Deployment(m)	5~10	10~15	15~20	20~25	25~30
Suitable Tonnes of Ship(t)	＜1800	＜2000	＜8000	＜10000	＜11000
