Quick Details
-
Warranty:
-
12years, 25 Years Life Time
-
Brand Name:
-
LONGi Jinko JA or other
-
Model Number:
-
455W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Name:
-

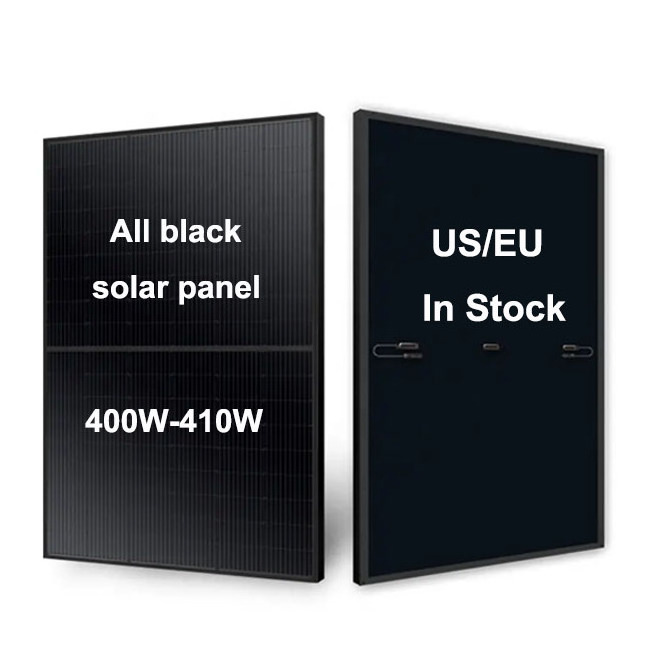

400W all black Monocrystalline Solar PV Panel
-
Solar cell:
-
Mono Half Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP68 Rated,3 by-pass diodes
-
Application:
-
Solar System,Solar Street Light,etc
-
Keyword:
-
Jinko/LONGi full black solar panel
-
OEM Order:
-
Accept Customized Solar Panel
-
Size:
-
1722*1134*30mm
-
Certificate:
-
TUV,,CE
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
12years, 25 Years Life Time
-
Brand Name:
-
LONGi Jinko JA or other
-
Model Number:
-
455W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Name:
-
400W all black Monocrystalline Solar PV Panel
-
Solar cell:
-
Mono Half Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP68 Rated,3 by-pass diodes
-
Application:
-
Solar System,Solar Street Light,etc
-
Keyword:
-
Jinko/LONGi full black solar panel
-
OEM Order:
-
Accept Customized Solar Panel
-
Size:
-
1722*1134*30mm
-
Certificate:
-
TUV,,CE
Product Description
|
166mm Series(STC)
|
|
|
|
|||
|
POWER
|
360~375W
|
395~410W
|
435~450W
|
|||
|
Maximum Power Voltage (Vmp)
|
33.71V-34.34V
|
36.93V-37.64V
|
40.81V-41.4V
|
|||
|
Maximum Power Current (Imp)
|
10.68A-10.92A
|
10.70A-10.89A
|
10.66A-10.87A
|
|||
|
Open-circuit Voltage (Voc)
|
40.79V-41.37V
|
45.56V-46.23V
|
49.4V~49.98V
|
|||
|
Short-circuit Current (Isc)
|
11.18A-11.42A
|
11.19A-11.39A
|
11.36A-11.54A
|
|||
|
Module Efficiency [%]
|
19.73~20.55%
|
19.75~20.5%
|
19.98~20.67%
|
|||
|
182mm Series(STC)
|
|
|
|
|||
|
POWER
|
485~500W
|
530~545W
|
575~590W
|
|||
|
Maximum Power Voltage (Vmp)
|
40.08V-40.62V
|
41.63V-42.12V
|
43.04V-43.48V
|
|||
|
Maximum Power Current (Imp)
|
12.10A-12.31A
|
12.73A-12.94A
|
13.36A~13.57A
|
|||
|
Open-circuit Voltage (Voc)
|
48.34V-48.83V
|
49.74V-50.18V
|
50.45V~51.02V
|
|||
|
Short-circuit Current (Isc)
|
12.99A-13.2A
|
13.62A-13.83A
|
14.41A-14.57A
|
|||
|
Module Efficiency [%]
|
20.42~21.06%
|
20.51~21.09%
|
20.57~21.11%
|
|||
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
Grade A materials
210MM 12BB PERC Mono Half Cells
* PERC Half Cells
* Higher Power Output
* Less Shading Effect
* Appearance Consistency
* Higher Power Output
* Less Shading Effect
* Appearance Consistency
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
FRAME
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
