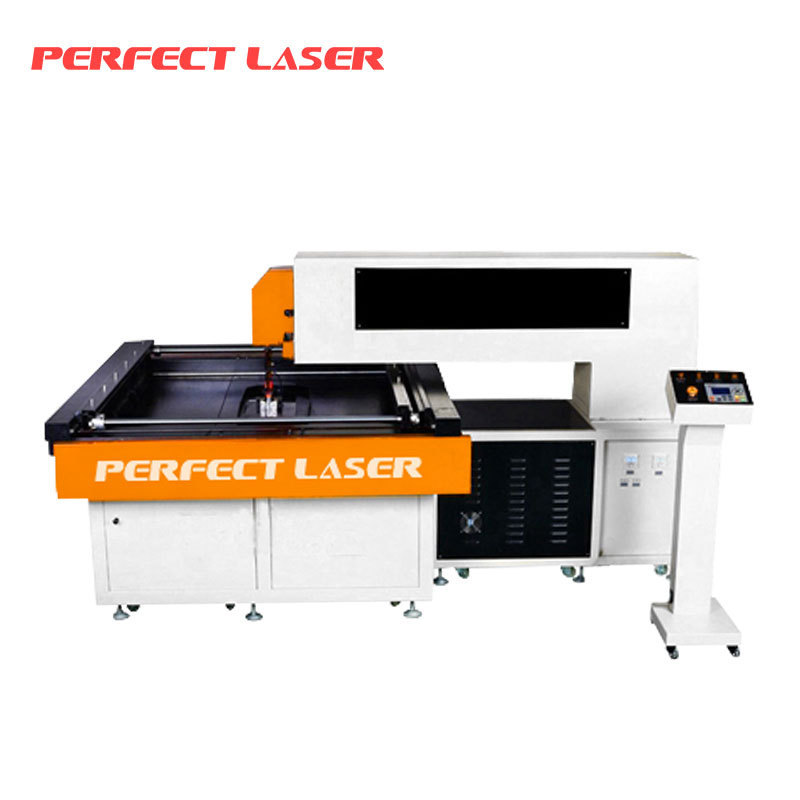

Perfect laser
die board cutting machine
is used to cut the laser flat die board for die making industry. It is ok to cut the plywood from 0.1mm-30mm thickness.
Die board cutting machine
is co2 type laser machine and with the water cooling system. Your first choice of the die cutting machine for your laser flat wooden die making.
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
WEIHONG
-
Cutting Area:
-
1500*2000mm
-
Cutting Thickness:
-
25mm
-
Control Software:
-
laser cutting software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Weight (KG):
-
2000 KG
-
Machinery Test Report:
-
Provided CE Certificate
-
Products handled:
-
plywood
-
Working Valtage:
-
220v/380v,50HZ
-
Machine Power:
-
2.5kw
-
Cutting time:
-
only 1 time
-
Working Gas:
-
compressor air
-
Motor and Drive System:
-
Japan Import Servo Motor and Drive
-
Cutting Thickness of Wooden Template:
-
6-25mm
-
Cutting Precision of Plastic Template:
-
±0.05mm
-
Cutting Power:
-
300w
-
Cutting Width:
-
0.35mm -0.75mm adjustable, > 0.75mm adjustable
-
Product name:
-
Laser Die Cutting Machine
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
10-6000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
WEIHONG
-
Cutting Area:
-
1500*2000mm
-
Cutting Thickness:
-
25mm
-
Control Software:
-
laser cutting software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Weight (KG):
-
2000 KG
-
Machinery Test Report:
-
Provided CE Certificate
-
Products handled:
-
plywood
-
Working Valtage:
-
220v/380v,50HZ
-
Machine Power:
-
2.5kw
-
Cutting time:
-
only 1 time
-
Working Gas:
-
compressor air
-
Motor and Drive System:
-
Japan Import Servo Motor and Drive
-
Cutting Thickness of Wooden Template:
-
6-25mm
-
Cutting Precision of Plastic Template:
-
±0.05mm
-
Cutting Power:
-
300w
-
Cutting Width:
-
0.35mm -0.75mm adjustable, > 0.75mm adjustable
-
Product name:
-
Laser Die Cutting Machine
Low Cost Laser Die Board Cutting Machine 300W Laser Die Board Cutting Machine for Mold
(Model: PEC-0909 1208 1512)
Contact: Crystal Skype: perfectlaser013
Email: Crystal @perfectlaser dot net
Product Description
Introduction:
Machine Details
Advantages:
1. Adopt automatic following and focusing system,and
die board cutting machine
can automatically senses the distance from cutting head to die board surface and adjust the focus distance to keep a good cutting quality.
2. The die board cutting machine also can be called plywood cutting machine.flat bed die cutting machine is for die board install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced double laser heads coaxial cutting technology, which makes the plywood cutting machine can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched 2D accurate working table insure the high stability of the cutting performance.
5.Tempering heat treated lathe bed, which isn't easy to be deformed.
2. The die board cutting machine also can be called plywood cutting machine.flat bed die cutting machine is for die board install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced double laser heads coaxial cutting technology, which makes the plywood cutting machine can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched 2D accurate working table insure the high stability of the cutting performance.
5.Tempering heat treated lathe bed, which isn't easy to be deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut arbitrary width by the plywood cutting machine, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
7. The
die board cutting machine
directly with compressed air, and the plywood cutting machine doesn't need to buy any other inactive gas, greatly lowered the users operation cost.
8. Adopt profession software, which is particularly designed for die cutting machine, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.
8. Adopt profession software, which is particularly designed for die cutting machine, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.
Technicial Data
|
Model
|
PEC-0909
|
PEC-1208
|
PEC-1512
|
||
|
Working area
|
900×900mm
|
1200×800mm
|
1500×1200mm
|
||
|
Laser tube
|
Chinese Top Quality Laser Tube
|
|
|
||
|
Laser power
|
300w-400w (150w×2, 200w×2)
|
|
|
||
|
Tube Lifetime
|
3000-10000 hours
|
|
|
||
|
Cutting Mode
|
Two laser head coaxial cutting
|
|
|
||
|
Cutting Speed
|
10 -6000mm /min
|
|
|
||
|
Max Cutting Depth
|
20-25mm MDF
|
|
|
||
|
Cutting Width
|
0.35mm -0.75mm adjustable, > 0.75mm adjustable
|
|
|
||
|
Driving system
|
Japan Panasonic Servo Motor and Driver
|
|
|
||
|
Transmission System
|
Germany Ball Screw Rod & Taiwan Linear Guide Rail
|
|
|
||
|
Machine Power
|
2.5 kw
|
|
|
||
|
Working voltage
|
220V(±10%) 50-60Hz
|
|
|
||
|
Cooling Mode
|
Water cooling and protection system
|
|
|
||
|
Support Format
|
HPGL,PLT,AI,DXF etc.
|
|
|
||
|
Compatible software
|
CorelDraw, AutoCAD, Photoshop
|
|
|
||
|
Controlling Mode
|
Perfect Laser CNC Professional Control System
|
|
|
||
