Quick Details
-
Brand Name:
-
HRD-Energy
-
Model Number:
-
HRD-PV
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2094*1038*35
Quick Details
-
Cell size:
-
Customized
-
Type:
-
PERC
-
Panel Efficiency:
-
21%
-
Brand Name:
-
HRD-Energy
-
Model Number:
-
HRD-PV
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2094*1038*35
Products Description
|
Technical parameters
|
ZPM 440MH3-72
|
ZPM 445MH3-72
|
ZPM 450MH3-72
|
ZPM 455MH3-72
|
ZPM 460MH3-72
|
||||
|
Maximum output power
|
440
|
445
|
450
|
455
|
460
|
||||
|
Open circuit voltage
|
49.08
|
49.28
|
49.48
|
49.68
|
49.88
|
||||
|
Short circuit current
|
11.39
|
11.46
|
11.53
|
11.59
|
11.67
|
||||
|
Maximum power voltage
|
40.54
|
40.74
|
40.94
|
41.14
|
41.34
|
||||
|
Maximum power current
|
10.86
|
10.93
|
11
|
11.07
|
11.13
|
||||
|
Panel conversion efficiency
|
20.24
|
20.47
|
20.7
|
20.93
|
21.16
|
||||
|
Operation temperature
|
-40 ℃~ 85 ℃
|
|
|
|
|
||||
|
Maximum system voltage
|
1000/1500 VDC
|
|
|
|
|
||||
|
Battery specifications
|
166*83 mm monocrystalline
|
|
|
|
|
||||
|
Dimension of the panel (mm)
|
2094*1038*35
|
|
|
|
|
||||
|
Weight of the panel
|
24 kg
|
|
|
|
|
||||
|
Front glass
|
3.2 mm high light transmittance， coated tempered glass
|
|
|
|
|
||||
|
Back panel
|
ageing resistant film
|
|
|
|
|
||||
|
Panel frame
|
anodized aluminium alloy
|
|
|
|
|
||||
|
Junction box
|
degrees of protection IP68
|
|
|
|
|
||||
|
Cable
|
4.0mm2 positive pole: 250mm negative pole: 300mm wire length， customizable
|
|
|
|
|
||||
|
Connector
|
MC4 compatible connector
|
|
|
|
|
||||
|
Temperature coefficient (Pm)
|
-0.350%/℃
|
|
|
|
|
||||
|
Temperature coefficient (Voc)
|
-0.270%/℃
|
|
|
|
|
||||
|
Temperature coefficient (Lsc)
|
0.048%/℃
|
|
|
|
|
||||
|
NMOT battery rated operating temperature
|
41±3 ℃
|
|
|
|
|
||||
|
Certification
|
IEC61215-1， IEC61215-2， IEC61730-1， IEC61730-2
|
|
|
|
|
||||

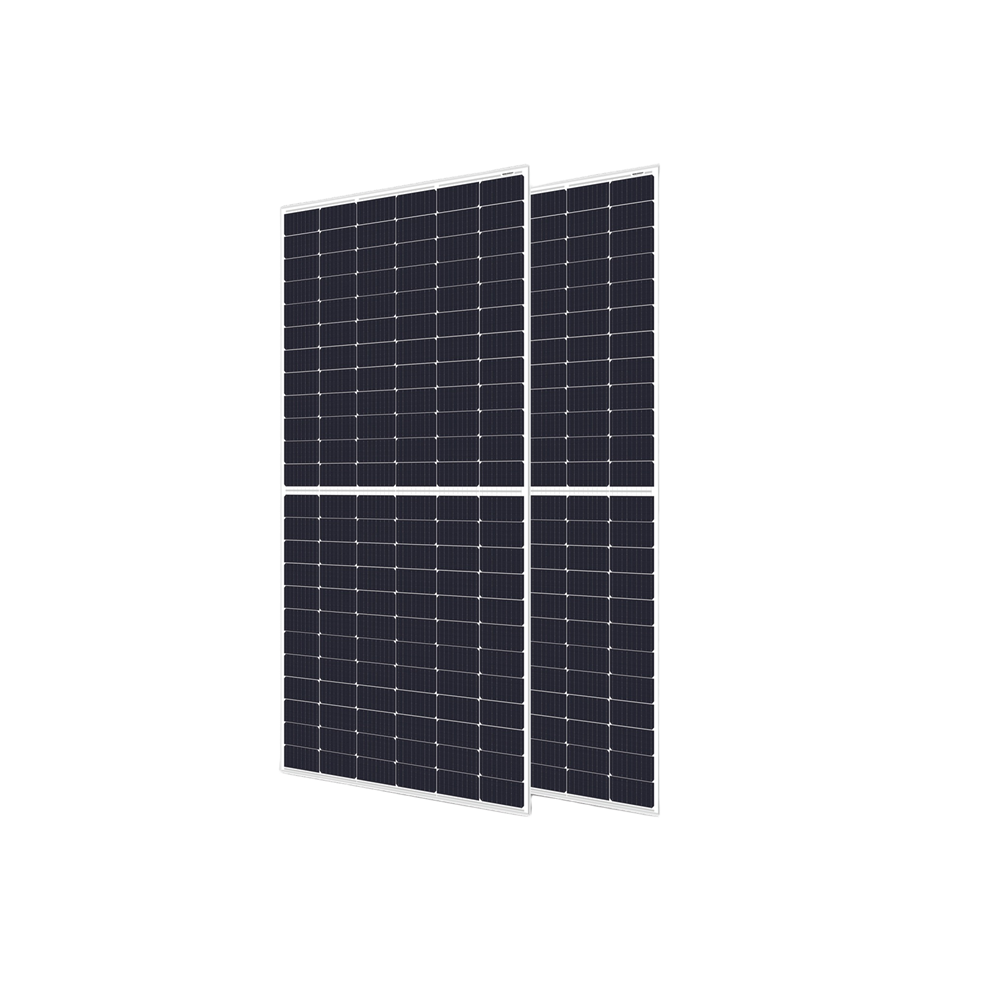

Details Images
440W-445W-450W-455W-460W for sale
