Quick Details
-
Throat Depth (mm):
-
320 mm
-
Width of Working Table (mm):
-
1000 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Raymax
-
Weight (KG):
-
5500
-
Motor Power (kw):
-
7.5 kw
-
Application:
-
Stainless Plate Bending
-
Feature:
-
High Precision
-
Function:
-
Steel Metal Bending
-
Raw Material:
-
Steel Stainless Sheet
-
Control system:
-
DA69T-DA66T-DA58T-CT8-CT12
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Machine Type:
-
Torsion Bar
-
Length of Working Table (mm):
-
3200
-
Slider Stroke (mm):
-
170 mm
-
Throat Depth (mm):
-
320 mm
-
Width of Working Table (mm):
-
1000 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Raymax
-
Weight (KG):
-
5500
-
Motor Power (kw):
-
7.5 kw
-
Application:
-
Stainless Plate Bending
-
Feature:
-
High Precision
-
Function:
-
Steel Metal Bending
-
Raw Material:
-
Steel Stainless Sheet
-
Control system:
-
DA69T-DA66T-DA58T-CT8-CT12
-
After-sales Service Provided:
-
Online Support

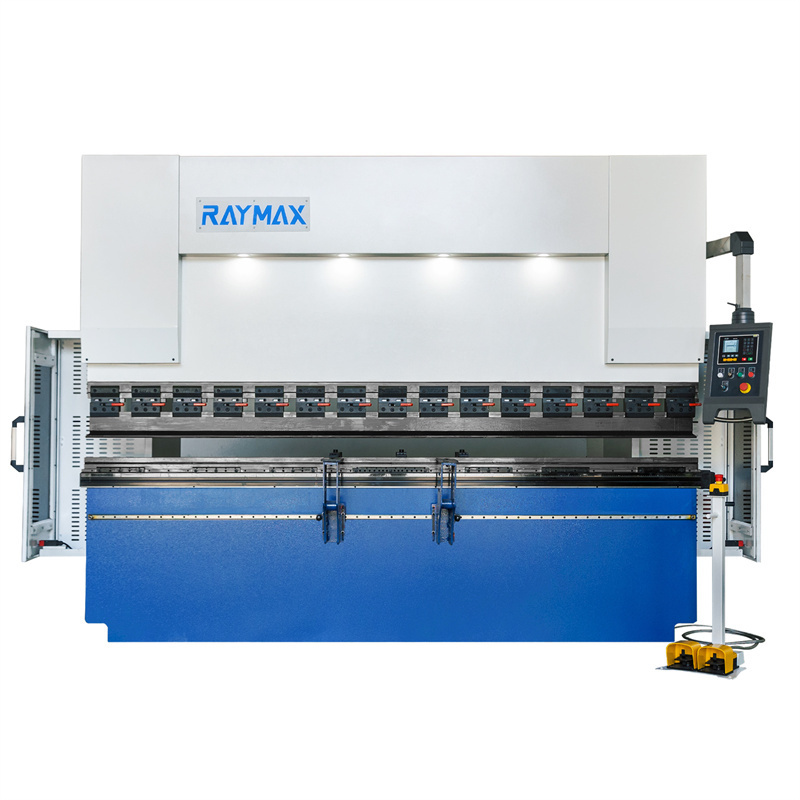

RAYMAX press brakes benefit your bottom line with higher quality parts, faster cycle times, lower operating and maintenance costs. Whether your application requires bending simple shapes or complex parts, RAYMAX has a press brake to match your needs and your budget. RAYMAX press brakes are designed for reliability, repeat-ability, precision, performance and ease-of-operation.
We offer several series of press brakes with features and options tailored to different manufacturing environments. Each series offers a range of lengths and tonnages. RAYMAX can also custom design and manufacture a press brake to your exact needs.
|
Type
|
Nominal pressure (KN)
|
Workbench length (mm)
|
Workbench width (mm)
|
Poles distance (mm)
|
Throat depth (mm)
|
Main motor (kw)
|
Dimensions L*W*H (mm)
|
|
30*1600
|
300
|
1600
|
600
|
1300
|
200
|
3
|
1600*1150*1780
|
|
40*1600
|
400
|
2000
|
800
|
1300
|
250
|
5.5
|
1600*1250*1800
|
|
40*2500
|
400
|
2500
|
800
|
1700
|
250
|
5.5
|
2280*1250*2000
|
|
50*2500
|
500
|
2500
|
800
|
1900
|
250
|
5.5
|
2500*1250*2000
|
|
63*2500
|
630
|
2500
|
850
|
1900
|
320
|
5.5
|
2500*1500*2200
|
|
63*3200
|
630
|
3200
|
850
|
2600
|
320
|
5.5
|
3200*1500*2200
|
|
80*2500
|
800
|
2500
|
850
|
1900
|
320
|
7.5
|
2500*1600*2270
|
|
80*3200
|
800
|
3200
|
850
|
2600
|
320
|
7.5
|
3200*1600*2270
|
|
100*2500
|
1000
|
2500
|
850
|
1900
|
320
|
7.5
|
2500*1700*2420
|
|
100*3200
|
1000
|
3200
|
850
|
2600
|
320
|
7.5
|
3200*1700*2420
|
|
100*4000
|
1000
|
4000
|
850
|
3100
|
320
|
7.5
|
4000*1700*2420
|
|
125*2500
|
1250
|
2500
|
850
|
1900
|
320
|
7.5
|
2500*1750*2450
|
|
125*3200
|
1250
|
3200
|
850
|
2600
|
320
|
7.5
|
3200*1750*2450
|
|
125*4000
|
1250
|
4000
|
850
|
3100
|
320
|
7.5
|
4000*1750*2450
|
|
160*2500
|
1600
|
2500
|
900
|
1900
|
320
|
11
|
2500*1800*2700
|
|
160*3200
|
1600
|
3200
|
900
|
2600
|
320
|
11
|
3200*1800*2700
|
|
160*4000
|
1600
|
4000
|
900
|
3100
|
320
|
11
|
4000*1800*2700
|
|
160*6000
|
1600
|
6000
|
900
|
5000
|
320
|
11
|
6000*1900*2700
|
|
200*3200
|
2000
|
3200
|
900
|
2600
|
320
|
11
|
3200*2000*2700
|
|
200*4000
|
2000
|
4000
|
900
|
3100
|
320
|
11
|
4000*2000*2700
|
|
200*6000
|
2000
|
6000
|
900
|
5000
|
320
|
11
|
6000*2100*2700
|
|
250*3200
|
2500
|
3200
|
950
|
2600
|
380
|
18.5
|
3200*2150*3000
|
|
250*4000
|
2500
|
4000
|
950
|
3100
|
380
|
18.5
|
4000*2150*3000
|
|
250*6000
|
2500
|
6000
|
950
|
5000
|
380
|
18.5
|
6000*2200*3000
|
|
300*3200
|
3000
|
3200
|
950
|
2600
|
380
|
22
|
3200*2300*3200
|
|
300*4000
|
3000
|
4000
|
950
|
3100
|
380
|
22
|
4000*2300*3200
|
|
300*6000
|
3000
|
6000
|
950
|
5000
|
380
|
22
|
6000*2350*3200
|
