Quick Details
-
Model Number:
-
Solar Panel Aluminum Frame
-
Brand Name:
-
TPM
-
Material:
-
6063Al
-
Length:
-
6m or custom
-
Color:
-
custom
-
Alloy:
-
aluminium alloy
-
Finished:
-
anodized
-
Place of origin:
-
China
-
Lead-time:
-
15days
-
MOQ:
-
50kg
-
Usage:
-
Aluminum Extruded Profiles Extrusion Aluminum
-
Type:
-
100% QC Testing
Quick Details
-
Grade:
-
6000 Series
-
Tolerance:
-
±1%
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
Solar Panel Aluminum Frame
-
Brand Name:
-
TPM
-
Material:
-
6063Al
-
Length:
-
6m or custom
-
Color:
-
custom
-
Alloy:
-
aluminium alloy
-
Finished:
-
anodized
-
Place of origin:
-
China
-
Lead-time:
-
15days
-
MOQ:
-
50kg
-
Usage:
-
Aluminum Extruded Profiles Extrusion Aluminum
-
Type:
-
100% QC Testing

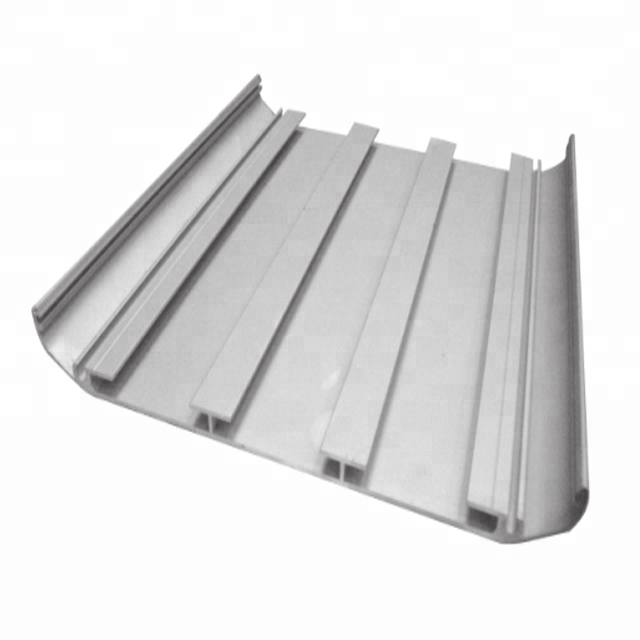

Solar Panel anodized aluminium profile frame custom aluminum extrusion frame in high precision standard
Mechanical properties:
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T5 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Alloying element:
| Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
| 6063 | 0.2~0.6 | 0.45~0.90 | <0.35 | <0.10 | <0.10 | <0.10 | <0.10 | <0.10 |
| 6060 | 0.3~0.6 | 0.35~0.60 | 0.1~0.3 | ~ | <0.10 | <0.15 | <0.05 | ~ |
| 6463 | 0.2~0.6 | 0.45~0.90 | <0.15 | <0.20 | <0.05 | <0.05 | ~ | ~ |
| 6005 | 0.6~0.9 | 0.40~0.60 | <0.35 | <0.10 | <0.10 | <0.10 | <0.10 | <0.10 |
| 6061 | 0.4~0.8 | 0.80~1.2 | <0.70 | 0.15~0.4 | <0.15 | <0.25 | 0.04~0.35 | <0.15 |
| 6082 | 0.7~1.3 | 0.60~1.2 | <0.50 | <0.1 | 0.4~1.0 | <0.20 | <0.25 | <0.10 |
| 6351 | 0.7~1.3 | 0.40~0.8 | <0.50 | <0.1 | 0.4~0.8 | <0.20 | ~ | <0.10 |
Aluminum alloy processing standard and production procedure
|
Material |
Alloy Aluminum 6063,6061,6005 or customer nominated |
|
Temper |
T3, T4, T5, T6 |
|
Surface |
Anodize, electrophoresis, powder coating, PVDF coating, wood grain painting, matted, etc. |
|
Colour |
Any colour based on Standard Germany RAL Mark |
|
Length |
Coating 6.5 meters, Anodizing 6.5 meters, Mill finish 5 meters |
|
Press Machine |
500-4000 tons all together 64 press lines. |
|
Fabrication |
1. Windows and doors; 2. Drilling; 3. Bending; 4. Cutting; 5. etc. |
|
Certificate |
ISO 9001 |
|
Warranty |
1. GB5237-2008 equal to EN12020-1.2(2001); |
|
2. GB6892-2006 equal to DIN 1725 |
|
|
3. Within 15 years without colour changing, all life without surface peeling off; |
|
|
4. All life without dfformation without outer force |
|
|
Moulding |
1. Using our moulds, no fee; |
|
2. Using customer drawing, opening mould, usually about 10~50 tons then the moulding can be refunded. |
|
|
3. Mould cost is negotiable base on the order quantity |
|
|
Capability |
Annual output 1000000tons |
