- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
320 kg
-
Product name:
-
Single mast aerial working platform
-
Model:
-
GTWY2-6
-
Working height (m):
-
8
-
Platform height (m):
-
6
-
Load capacity (kg):
-
250
-
Collection length (m):
-
1.45
-
Collection width (m):
-
0.81
-
Collection height (m):
-
1.99
-
Platform length (m):
-
1.45
-
Platform width (m):
-
0.7
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Lift Speed:
-
0.18/0.30
-
Weight (KG):
-
320 kg
-
Product name:
-
Single mast aerial working platform
-
Model:
-
GTWY2-6
-
Working height (m):
-
8
-
Platform height (m):
-
6
-
Load capacity (kg):
-
250
-
Collection length (m):
-
1.45
-
Collection width (m):
-
0.81
-
Collection height (m):
-
1.99
-
Platform length (m):
-
1.45
-
Platform width (m):
-
0.7

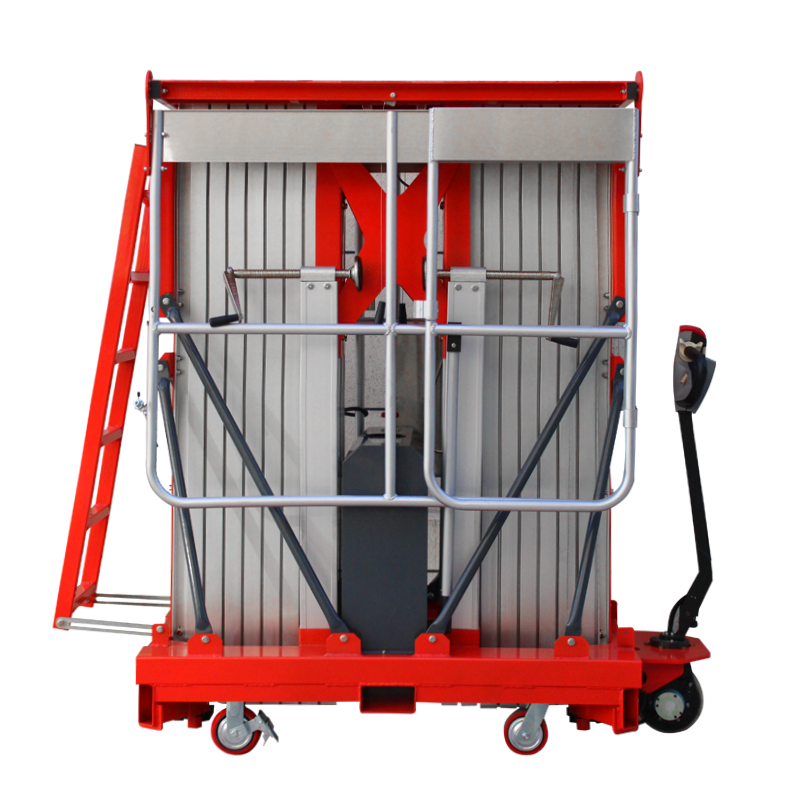

The price of the twin mast aluminum alloy lifting platform series is 50% cheaper than that of the boom type lifting platform. In addition to the low price, the flexibility of the twin lift platform series in narrow passages enables it to complete many tasks that cannot be completed by the boom type lifting platform. It can be operated by one or two persons. The wide platform provides enough space for operators to work and place tools. It has the most rigid lifting mast system, which is characterized by: high-strength aluminum alloy mast, interlocking system, retractable mast and high-strength lifting chain with a safety factor greater than 10:1, and a steel wire safety protection system that can be used to enhance strength and reliability and facilitate maintenance. Its welded high-strength steel base is suitable for harsh working environment.
|
Working height (m)
|
8
|
Model
|
GTWY2-6
|
|
Platform height (m)
|
6
|
Load capacity (kg)
|
250
|
|
Collection length (m)
|
1.45
|
Collection width (m)
|
0.81
|
|
Collection height (m)
|
1.99
|
Platform length (m)
|
1.45
|
|
Platform width (m)
|
0.7
|
Guardrail height (m)
|
1.0
|
|
Outrigger expansion size（m）
|
2.45*1.75 |
Voltage (v) AC/DC
|
220/12v
|
|
Motor power (kw)
|
1.5/2.2kw
|
Walking mode
|
Manpower implementation
|
|
Maximum allowable wind speed at work
|
12.5m/s
|
System oil pressure
|
12Mpa
|
|
Up / down speed (m / s)
|
0.18/0.30
|
Weight of the whole machine (kg)
|
610/660
|
The twin mast aluminum alloy lifting platform has beautiful appearance, small size, light weight, flexible and convenient operation; Up and down two sets of control lifting system, stable lifting, safe and reliable. It is applicable to the repair, maintenance and cleaning of shopping malls, hotels, restaurants, interior decoration, exhibition, space light lines, pipelines, doors and windows, as well as space operations in workshops with narrow areas or spaces. It is an ideal lifting machine and is welcomed by the majority of users.
double mast aluminum alloy lifting platform The double mast aluminum alloy lifting platform is a unique product of our company. It is driven by electro-hydraulic transmission, safe and reliable. The maximum working height can reach 18 meters, and the maximum load is about 200KG. It is a new type of product that needs to enter the design of ordinary passenger lifts. It has the characteristics of compact size, safety, firmness, and ease of use. Its quality and performance exceed JC5099-1998, JG/T5103-1998 doors, CE and other safety standards in all aspects.
*10years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square metersAerial lift platform machine factory
*Jinan Felici Machinery Equipment Co., Ltd.
Jinan Felici Machinery Equipment Co., Ltd. is one of the famous and big manufacturers of Aerial lift platform。
Since its inception in 2014, and after many years of development and growth, the company is now playing a leading role in Aerial lift platform machinery inChina Jinan Felici Machinery Equipment Co., Ltd has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About Aerial lift platform machines, we are professional and have full set certifcates.For every Aerial lift platform, we have serious quality control for every machine and every parts before it leaves our factory.
Workers shipped machines in the rain just to let customers receive our machines on time. Integrity has always been the reputation of our company.
The perfect after-sales team has always been our strongest backing, making our after-sales service more perfect.
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops
Question: How about the service ?
Answer.
1).reply it at once if from Ali-trade manager if by email.it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 10 years experience in this kind machine feld
5).fluent english ,communication barrier free
Question:What's the guarantee ?
Answer.
1).Qur guarantee for 18 months.
2).24 hour's technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Question: Do you provide equipment operation training?
Answer.Yes. We can send professional engineers to the working site for equipment installation, adiustment, and operation training
Allof our engineers have passport.
