Technical Parameter
|
|
|
|
Model
|
XSHF2-3
|
|
|
Realative error in weight
|
≤2%
|
|
|
Feeding density(%)
|
5-50%
|
|
|
Feeding granularity(mm)
|
-0.5
|
|
|
Handling capacity(L/min)
|
2
|
|
|
Container capacity(L/min)
|
≤4
|
|
|
Stirring motor power(w)
|
120
|
|
|
Divider motor power(w)
|
90
|
|
|
Boundary dimension(mm)
|
550*420*1260
|
|
|
Total weight(kg)
|
≤90
|
|
(1) Easy to operate
(2) Energy saving
(3) It is simple structure, convenient maintenance,reliable to use
(4) Dividing the sample uniformity,high efficiency
Name: Wet Sample Separator
Brand: WKD
Original: CHINA

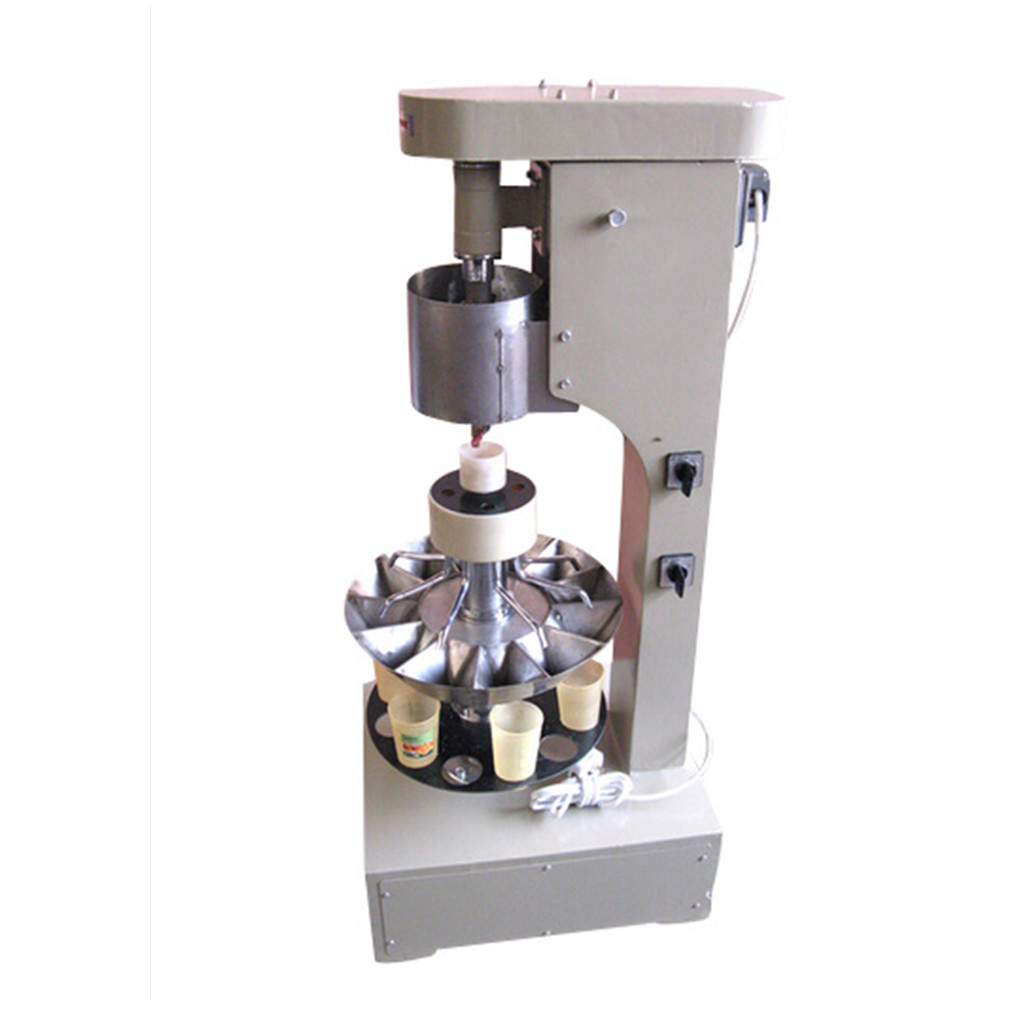

New wet sample separator of XSHF2-3 is applicable to labs for geological,metallurgical, building material, coal and other industries for ore slurry reduction and wet sampling for product tests.Minor representative samples in terms of solid content,particle size fraction and chemical composition can be made by the splitter.
Name: Wet Sample Separator
Brand: WKD
Original: CHINA
The main parts of XSHF2-3 Wet Splitter are: (1)Feed hopper;
(2)Slurry conditioning drum;
(3)Slurry distributing part;
(4)Slurry intercepting part;
(5)Slurry gathering and containing part;
(6)Lathe bed;
(7)Control switch for slurry conditioning drum;
(8)Control switch for distributor.The plate distributor rotates counterclockwise.
Name: Wet sample separator
Brand: WKD
Original: CHINA
The moving system of splitter transmits slurry in two ways:
(1) Stirring transmission and distribution transmission, both of which are driven by one single motor.
(2) The motor for stirring transmission feeds slurry to the driven shaft through belt pulley, getting the stirring impeller to rotate at constant speeds.
