Quick Details
-
Power:
-
250kw
-
Dimension(L*W*H):
-
8250*4000*3750mm
-
Weight:
-
33000 kg
-
Engine:
-
QSM11
-
Color:
-
Yellow
-
Rolling width:
-
3800mm
-
Travel speed:
-
0-8km/h
-
Gradeability:
-
100%
-
wheelbase:
-
3500mm
-
clearance:
-
600mm
-
wheel width:
-
1350/1130mm
-
wheel diameter:
-
1620mm
-
dozer blade height:
-
1980mm
-
dozer blade width:
-
4000mm
Quick Details
-
Application:
-
Compaction
-
Brand Name:
-
Nivo
-
Place of Origin:
-
China
-
Power:
-
250kw
-
Dimension(L*W*H):
-
8250*4000*3750mm
-
Weight:
-
33000 kg
-
Engine:
-
QSM11
-
Color:
-
Yellow
-
Rolling width:
-
3800mm
-
Travel speed:
-
0-8km/h
-
Gradeability:
-
100%
-
wheelbase:
-
3500mm
-
clearance:
-
600mm
-
wheel width:
-
1350/1130mm
-
wheel diameter:
-
1620mm
-
dozer blade height:
-
1980mm
-
dozer blade width:
-
4000mm
Product Description

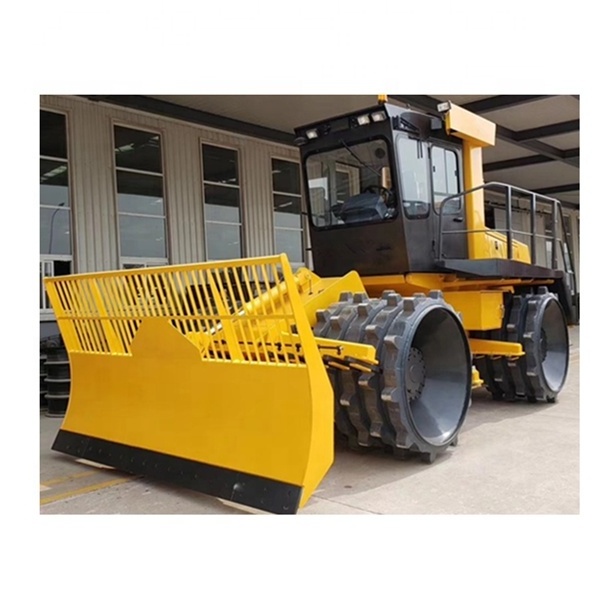

The landfill compactors are essential equipments for refuse landfill site. It has the functions of spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environment and extend the operating life of the refuse landfill site.
1.CUMMINS Tier Ⅱ emission or WEICHAI GUO Ⅲ emission electronic-controlled diesel engines.
2.Four separate hydrostatic travel drive systems are controlled Computerized Sauer Non-feedback Proportional Electric Control system.
3.The high wear life teeth. The two scraper bars and two wire cutters per wheel.
4.Hydraulic steering and blade lifting system is driven by a piston pump with load sensing system.
5.Sealed and comfortable driver's cabin with dual sides of the doors. Air conditioner with heated and cooled system.
6.Integrated Roll-Over Protective Structure(ROPS), sealed and arc type tube design of machine basis.
7.Service brake of the hydrostatic brake, parking brake and emerging brake of the hydraulic-applied spring-released (SAHR) brakes on the four wheels.
8.In behind of reverse-mounted engine, the take-off gearbox drives the hydraulic pumps. Walking corridors and protective ladder in both sides.
9. Infrared vehicle video monitor system and backup buzzer.
|
specifications
|
|
|
Operating mass
|
33000kg
|
|
Rolling width
|
3800mm
|
|
Max.Travel speed
|
0~8km/h
|
|
Gradeability
|
100%
|
|
Dozer blade heightx width
|
1980×4000mm
|
|
Wheelbase
|
3500mm
|
|
Clearance
|
600mm
|
|
Wheel width
|
1350/1130mm
|
|
Wheel diameter (front / rear)
|
1620/1620mm
|
|
Teeth No. per wheel (front / rear)
|
60/50mm
|
|
Diesel engine model
|
QSM11/WP12N
|
|
Diesel engine power
|
250/276kW
|
|
Overall dimensions at dozer blade
|
8250×4000×3750mm
|
|
Overall dimensions at front wheel
|
8250×3630×3750mm
|
