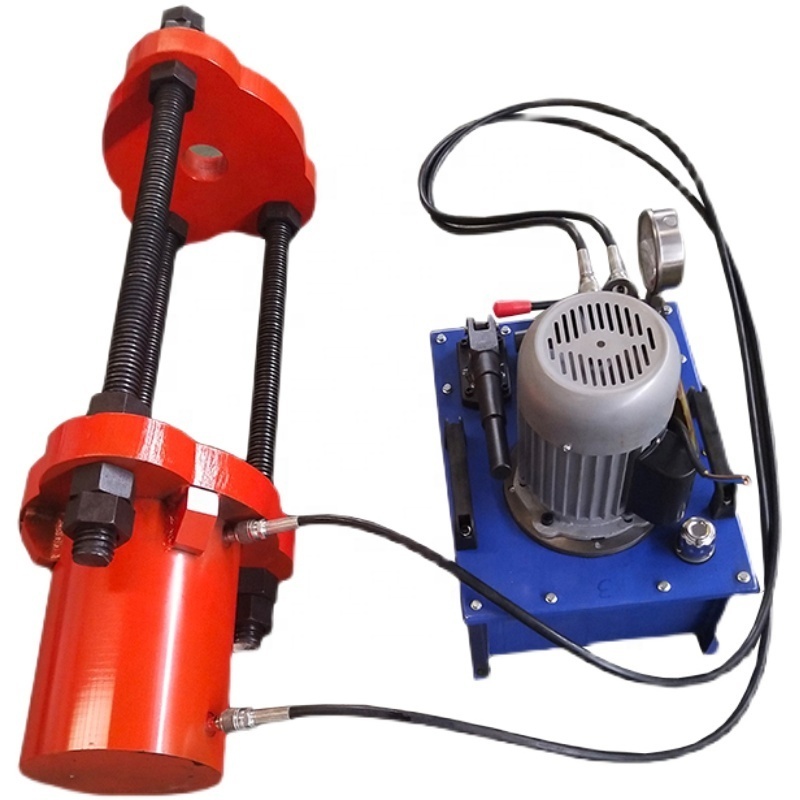

Hydraulic track pin disassembly machine Track disassembly equipment for construction machinery
The crawler disassembly machine uses the principle of hydraulic energy to transform
mechanical energy to implement disassembly tools for the crawler pins of the crawler excavator. You can use a hand pump or an
electric pump as the power source to move the hydraulic jack forward, so that the pin can be removed smoothly and quickly. The
secondary tool replaces the backward methods of gas cutting and hammering to protect the track from damage and can be used
continuously. It is a tool for repairing and assembling crawler excavators.
mechanical energy to implement disassembly tools for the crawler pins of the crawler excavator. You can use a hand pump or an
electric pump as the power source to move the hydraulic jack forward, so that the pin can be removed smoothly and quickly. The
secondary tool replaces the backward methods of gas cutting and hammering to protect the track from damage and can be used
continuously. It is a tool for repairing and assembling crawler excavators.
Working Principle
Crawler disassembler uses the principle of converting hydraulic energy into mechanical
energy to disassemble and assemble the track pins of crawler excavators. With the company's patented product SYB-2B-1S, the
large-displacement hand pump is used as the power source to make the hydraulic jack move forward quickly, so that the pin can be
removed smoothly. Replace the backward methods of gas cutting and hammering to ensure that the track is intact and not damaged. It
is a tool in the maintenance and assembly of crawler excavators.
Product Paramenters
|
Motor:
|
1.5kw
|
|
Voltage
:
|
220V
|
|
Pumping station thrust:
|
70/120 tons
|
|
Working pressure:
|
0-63Mpa
|
|
Working flow:
|
1.2L/min
|
|
Stroke:
|
200mm
|
|
Lead screw:
|
one meter
|
|
Tubing:
|
5 meters*2
|
|
Fuel tank capacity (L):
|
13L
|
|
Medium:
|
46 hydraulic oil
|
|
Hydraulic cylinder thrust:
|
120T
|
|
Stroke:
|
200mm
|
