Quick Details
-
Place of Origin:
-
Yunnan, China
-
Filter Type:
-
UV IR Cut
-
Filter Size:
-
31-82mm
-
Materials:
-
Optical imaging glass
-
Surface Quality:
-
40/20, 60/40, 80/50
-
Thickness:
-
0.3-5.0 mm
-
Tolerance:
-
± 0.10mm
-
Parallelism:
-
5Arc Second ~ 1Arc Minute
-
Transmittance:
-
>80-95%
-
Blocking Wavelength Range:
-
240nm -1200nm
-
Blocking Density:
-
OD2-OD6
-
Certification:
-
RoHS,ISO9001,EPR
-
Shipment:
-
Express delivery,Air,Sea
Quick Details
-
Caliber:
-
31-82mm
-
Brand Name:
-
Optolong
-
Model Number:
-
UV IR CUT
-
Place of Origin:
-
Yunnan, China
-
Filter Type:
-
UV IR Cut
-
Filter Size:
-
31-82mm
-
Materials:
-
Optical imaging glass
-
Surface Quality:
-
40/20, 60/40, 80/50
-
Thickness:
-
0.3-5.0 mm
-
Tolerance:
-
± 0.10mm
-
Parallelism:
-
5Arc Second ~ 1Arc Minute
-
Transmittance:
-
>80-95%
-
Blocking Wavelength Range:
-
240nm -1200nm
-
Blocking Density:
-
OD2-OD6
-
Certification:
-
RoHS,ISO9001,EPR
-
Shipment:
-
Express delivery,Air,Sea
Product Description
UV IR Cut filters introduce:

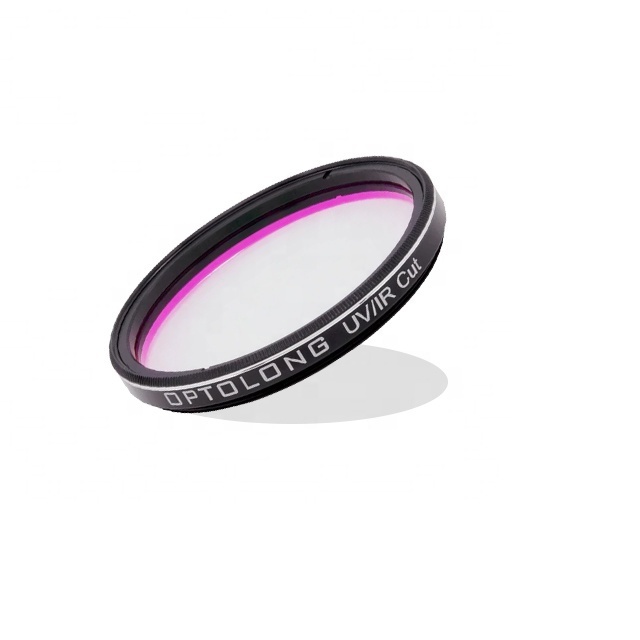

OPTOLONG uv ir cut filter is a filter that can block UV and IR wavelength light and pass visible light only.It has a good usage of blocking UV and IR energy to prevent the sensor machine systems and components from damages.
It permits only the visible spectrum of light rays to enter the camera and get captured by the sensor and blocks out both the higher frequency ultraviolet rays, and lower frequency infrared light rays. This is important to digital photographers.
It is quite applicable to the digital projector system.Such as Infrared photography，Deep Sky photography，CCD and CMOS Image sensor.
Specification
|
Customize
|
|
|
|
Substrates:
|
B270, BK7, JGS or
Customize as needed
|
|
|
High transmission for visible band
|
420~680nm
|
|
|
CWL accuracy
|
above± 2
|
|
|
Blocking IR band
|
Tmax＜1%，,Tave＜0.6%@720-1100nm
|
|
|
Blocking depth
|
OD2-OD6
|
|
|
Size(mm)
|
31×31~82×82 mm
|
|
|
Thickness(mm)
|
0.3mm~5mm
|
|
|
Surface/Coating Quality
|
40/20,60/40,80/50
|
|
|
Bandpass transmittance
|
> 90% of the common
|
|
