Quick Details
-
Production Capacity:
-
4.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Remax
-
Voltage:
-
220v/380V, 50Hz/60hz
-
Dimension(L*W*H):
-
3700mm*2200mm*1800mm
-
Weight:
-
1100 kg
-
Work area:
-
3000*2000mm
-
C axis:
-
±360°
-
Control system:
-
Customized system (built-in CAM software)
-
Table:
-
Square timber Worktable
-
Motor and Driver:
-
Stepper motor and Leadshine driver
-
Spindle power:
-
mechanical spindle,
-
Spindle speed:
-
0-10000rpm
-
Working voltage:
-
380V/3P/50HZ
-
Guide Rail:
-
X, Y, and Z: # 30
-
Reducer X/Y:
-
Japan SHIMPO
Quick Details
-
Type:
-
Bridge Saw
-
Power:
-
4.5 KW
-
Cutting thickness (max):
-
400mm
-
Production Capacity:
-
4.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Remax
-
Voltage:
-
220v/380V, 50Hz/60hz
-
Dimension(L*W*H):
-
3700mm*2200mm*1800mm
-
Weight:
-
1100 kg
-
Work area:
-
3000*2000mm
-
C axis:
-
±360°
-
Control system:
-
Customized system (built-in CAM software)
-
Table:
-
Square timber Worktable
-
Motor and Driver:
-
Stepper motor and Leadshine driver
-
Spindle power:
-
mechanical spindle,
-
Spindle speed:
-
0-10000rpm
-
Working voltage:
-
380V/3P/50HZ
-
Guide Rail:
-
X, Y, and Z: # 30
-
Reducer X/Y:
-
Japan SHIMPO

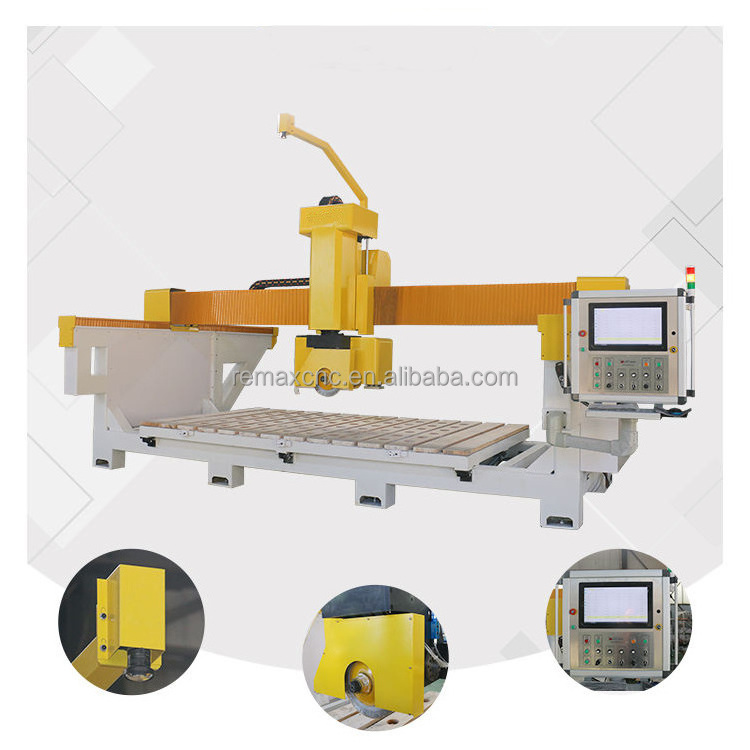

5 Axis CNC Bridge Saw Stone Cutting Milling Machine
Specification
|
Model
|
Remax 5 Axis CNC Bridge Saw Stone Cutting Machine
|
|
Working area
|
3000*2000*400mm
|
|
C axis
|
±360°
|
|
Control system
|
CUTCAM Control System (built-in CAM software)
|
|
Table
|
Structure Square timber Worktable size 3200×2000mm Turning angle 0-80° Max. weight for turning 800KG
|
|
Motor and Driver
|
X and Y 1300W absolute servo motor Z axis 1300W absolute servo motor with brake A and C 1000W absolute servo motor
|
|
Spindle power
|
mechanical spindle,10000RPM,with BT40
|
|
Spindle speed
|
0-10000rpm
|
|
Working voltage
|
380V/3P/50HZ
|
|
Moving speed
|
Xaxis 30m/min Yaxis 30m/min Zaxis 15m/min
|
|
Guide
|
X, Y, and Z: # 30
|
|
Transmission
|
Rack gear
|
|
Reducer
|
X/Y: Japan SHIMPO
|
|
Saw motor
|
11KW motor, rated: 3000r/min
|
|
Low-voltage electronics
|
French SCHNEIDER
|
|
Working air pressure
|
0.7-0.8Mpa
|
Parts
Remax 5 axis cnc stone bridge cutting head
Remax cnc bridge saw stone cutting machine milling spindle
5 axis cnc stone bridge cutting machine
CUTCAM Control System
Reversible countertop：
Platform flat angel 0-85 degrees,
Heavy machine structure
With Up & Down Large Suction Cup
CCD
Camera five-axis intelligent system
Handwheel
Samples
