Quick Details
-
Brand Name:
-
GVDA
-
Model Number:
-
GD-H400M GD-H400 GD-Y400M GD-Y400M
-
Measuring Range: Range::
-
4*90°(0°~360°)
-
Resolution ::
-
0.1°
-
Accuracy ::
-
0.2°
-
Magnet(Optional)::
-
4 built-in on base plate
-
Working current ::
-
< 100uA
-
Work humidity ::
-
≤85% RH
-
Digital Level::
-
magnetic levels
-
Construction Tool::
-
Build device
-
slope meter::
-
surveying instruments
-
inclinometer digital::
-
spirit level digital
Quick Details
-
Grade:
-
DIY
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GVDA
-
Model Number:
-
GD-H400M GD-H400 GD-Y400M GD-Y400M
-
Measuring Range: Range::
-
4*90°(0°~360°)
-
Resolution ::
-
0.1°
-
Accuracy ::
-
0.2°
-
Magnet(Optional)::
-
4 built-in on base plate
-
Working current ::
-
< 100uA
-
Work humidity ::
-
≤85% RH
-
Digital Level::
-
magnetic levels
-
Construction Tool::
-
Build device
-
slope meter::
-
surveying instruments
-
inclinometer digital::
-
spirit level digital
Product Description

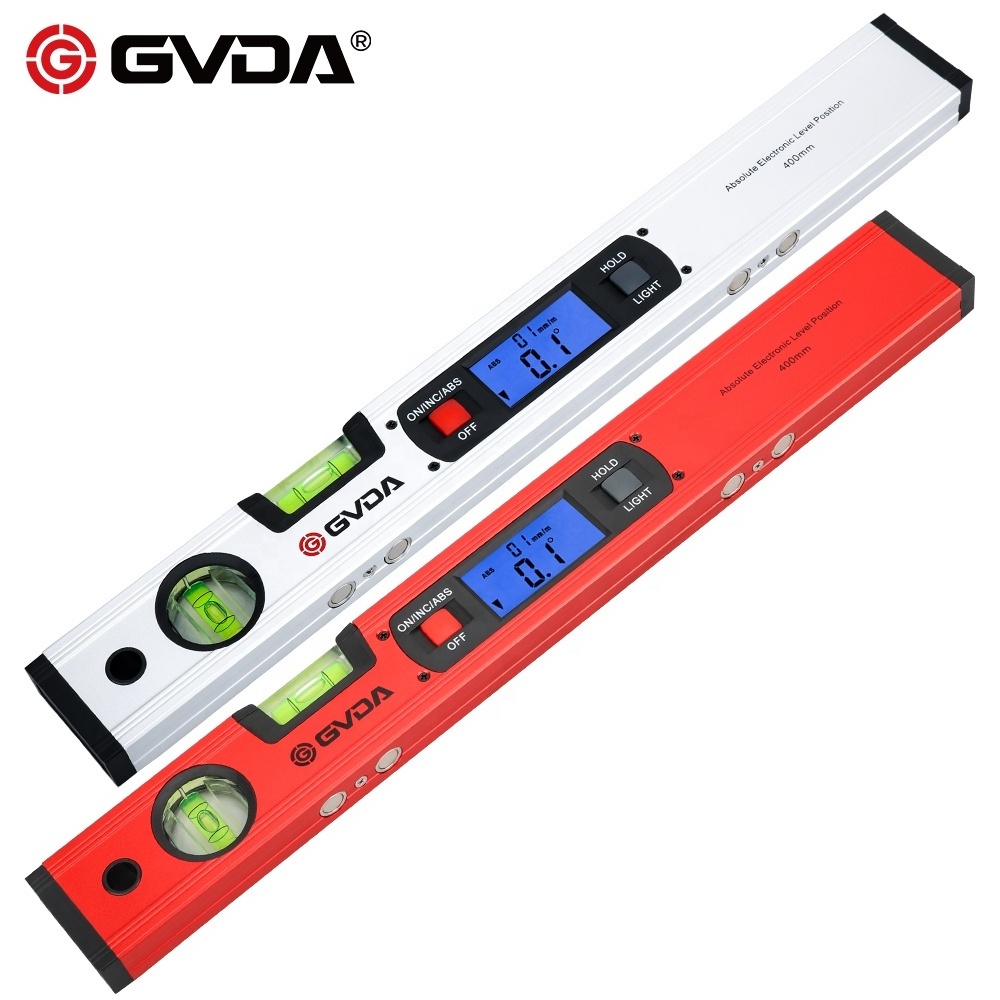

GVDA DIGITAL INCLINOMETER PROTRACTOR SPIRIT LEVEL 400M
GVDA digital level measure all angles in either 360°range or four 90°quadrants. It can display both degree and slope .
have two versions--with magnets on the buttom and without magnets. Display is always in upright position which best specially when
working overhead. Not only this instrument can measure the horizontal and vertical surface,
it also can measure the angles of all slopes rise & fall.
Product Features
GVDA New arrive Digital Spirit Level has following features:
1. Precision:0.1°, Accuracy: 0.2°
2. Flip-up LCD,reading always in upright position
3. Measuring range of 0~360°
4. Hold function to freeze measurements
5. Absolute measurement and relative measurement conversion
6. Automatic power off after 5 minutes
7. Measures precise inclines in degree or mm/m (up to 100mm/m)
1. Precision:0.1°, Accuracy: 0.2°
2. Flip-up LCD,reading always in upright position
3. Measuring range of 0~360°
4. Hold function to freeze measurements
5. Absolute measurement and relative measurement conversion
6. Automatic power off after 5 minutes
7. Measures precise inclines in degree or mm/m (up to 100mm/m)
Specifications:
Brand Name
|
GVDA
|
Model No.
|
GVDA-H400M/Y400M
|
Name
|
Digtial Spirit Level
|
Measuring Range
|
4 x 90° (0~360°)
|
Resolution :
|
0.1°
|
Accuracy
|
0~90°≤0.1°; the rest ≤0.2°
|
Working current :
|
< 100µA
|
Work temperature :
|
5~50°C
|
Work humidity :
|
≤85% RH
|
Magnet (optional)
|
4 built-in on base plate
|
Product Weight/Size
|
260g / 416x50x21mm
|
Package Weight/Size
|
315g / 435 x 60 x 30mm
|
Power Supply
|
2x1.5V AAA battery (not include)
|
Packing Contents
|
1PC Digital Level + 1pc user manual
|
