Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
abei
-
Model Number:
-

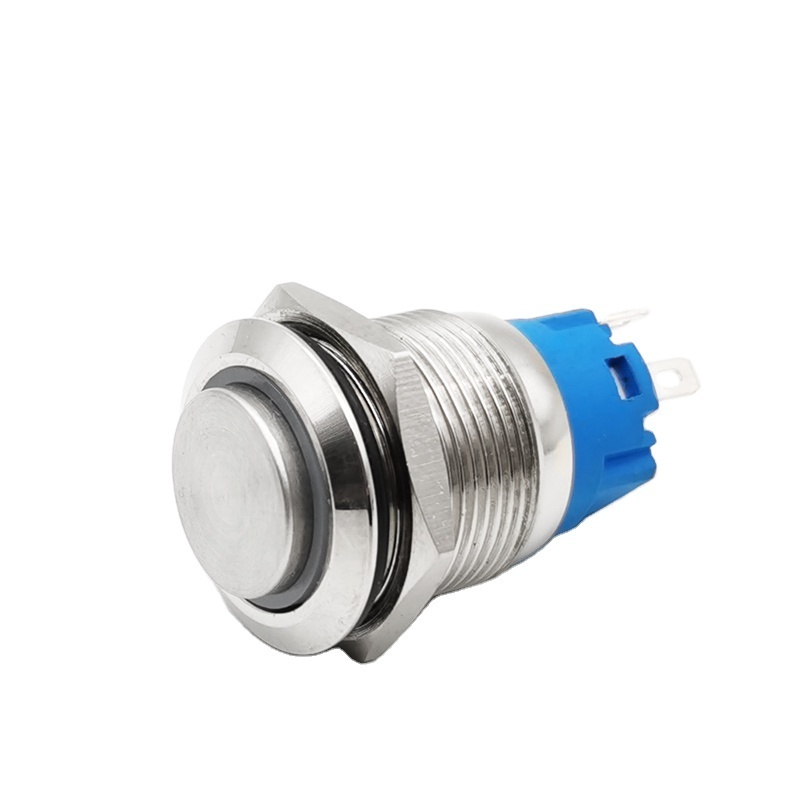

ABS19C-G11-E
-
Mounting Hole Size:
-
Dia 19mm
-
Operation type:
-
Self-locking Momentory
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
abei
-
Model Number:
-
ABS19C-G11-E
-
Mounting Hole Size:
-
Dia 19mm
-
Operation type:
-
Self-locking Momentory
Product Description
Specification
|
The Others Parameters
|
|
|
|
|||
|
Project
|
Parameter
|
Project
|
Parameter
|
|||
|
Contact
|
Environment-friendly Silver Contact
|
Actuating Force |
about 4N
|
|||
|
Contact Resistance
|
≤50mΩ
|
Mounting panel thickness
|
≤10mm. customised the others
|
|||
|
Insulation Resistance
|
≥1000mΩ
|
Nut torque
|
5~14N.m
|
|||
|
Dielectric Strength
|
1000VAC min
|
Outshell/Press Key
|
Stainless Steel/Aluminum Oxide/Copper plate / According to the request
|
|||
|
Ambient Temperature
|
-30℃~+80℃
|
Protection Levels
|
IK10
|
|||
|
Electrical Life
|
Rated:2A250VAC-
100,000 times |
Nut
|
Nickel brass
|
|||
|
|
Rated:5A250VAC-50,000 times
|
Base Seat
|
|
|||
|
|
Rated:8A250VAC-20,000 times
|
Bottom Seat
|
PA66
|
|||
|
|
Reated:10A250VAC- 20,000 times
|
Bottom Seat |
|
|||
|
Mechanical Life
|
Momentary-500,000 times
|
Insert seat
|
|
|||
|
|
Latching-300,000 times
|
Pins
|
H65 / H65 Silver Plated / Gold
|
|||
|
Waterproof
|
IP65/IP66
|
Contact
|
Environment-friendly Silver Contact
|
|||
|
Led Lamp Parameters
|
|
|
|
|
|
Project
|
Parameterc
|
|
|
|
|
Led type
|
High Brightness LED lamp,cool
|
|
|
|
|
Luminous color
|
Red,Green,Blue,Yellow,White
|
|
|
|
|
Rated Voltage
|
AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
|
|
|
|
|
Rated Current
|
≤20mA
|
|
|
|
|
Reference Life
|
40,000hours
|
|
|
|
