5 or 7 layers Corrugated Cartons, reinforced wooden box with pallet.
Customized Wooden Box is Optional.
All-round protection your products during transportation.
Make sure all solar panels safety.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1840mm*1040mm*2.5mm
-
Panel Efficiency:
-
21.8%
-
Name:
-

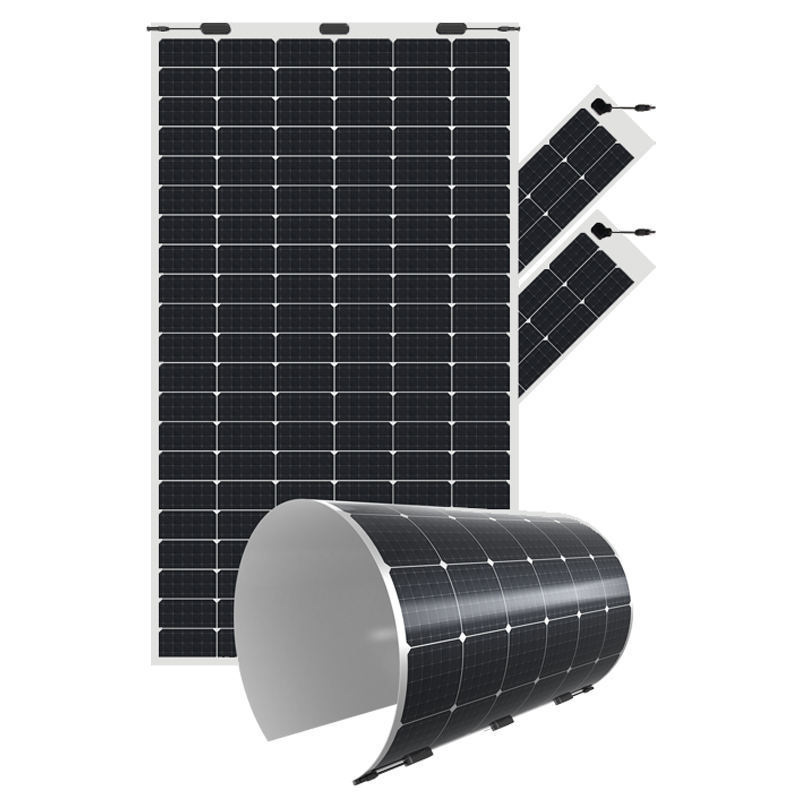

400w flexible solar panels
-
Solar cell:
-
126(21*6)/ Mono / 166*83mm
-
Frame:
-
PPO(Corner Protector)
-
Warranty:
-
25 Years Output Power Guarantee
-
OEM:
-
Acceptable
-
Application:
-
Solar Home System
-
Certificate:
-
IEC61215/IEC61730/CE/PID/ISO
-
Number of Cells:
-
126(21*6)
-
Connector:
-
MC4 Compatible
-
Size:
-
1840mm*1040mm*2.5mm
Quick Details
-
Cell size:
-
166*83mm
-
Brand Name:
-
Greensun
-
Model Number:
-
QHES
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1840mm*1040mm*2.5mm
-
Panel Efficiency:
-
21.8%
-
Name:
-
400w flexible solar panels
-
Solar cell:
-
126(21*6)/ Mono / 166*83mm
-
Frame:
-
PPO(Corner Protector)
-
Warranty:
-
25 Years Output Power Guarantee
-
OEM:
-
Acceptable
-
Application:
-
Solar Home System
-
Certificate:
-
IEC61215/IEC61730/CE/PID/ISO
-
Number of Cells:
-
126(21*6)
-
Connector:
-
MC4 Compatible
-
Size:
-
1840mm*1040mm*2.5mm
Product Description
Specifications
|
Electrical Characteristics at Standard Test Conditions(STC)
|
|
|
|
|
|
|
||||||
|
Spec/Model
|
Unit
|
SPP365QHES
|
SPP370QHES
|
SPP375QHES
|
SPP380QHES
|
SPP385QHES
|
||||||
|
Max-Power(Pm)
|
W
|
365
|
370
|
375
|
380
|
385
|
||||||
|
Power Tolerance
|
W
|
0~+5
|
|
|
|
|
||||||
|
Max-Power Voltage(Vm)
|
V
|
34.9
|
35.1
|
35.3
|
35.5
|
35.7
|
||||||
|
Max-Power Current(lm)
|
A
|
10.46
|
10.54
|
10.62
|
10.70
|
10.78
|
||||||
|
Open-Circuit Voltage(Voc)
|
V
|
42.4
|
42.6
|
42.8
|
43.0
|
43.2
|
||||||
|
Short-Circuit Current(lsc)
|
A
|
11.09
|
11.16
|
11.23
|
11.30
|
11.35
|
||||||
|
Module Efficiency(qm)
|
%
|
20.7
|
21.0
|
21.2
|
21.5
|
21.8
|
||||||
Module Size
TECHNOLOGY COMPARISON
Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.
— Structural Feature —
MWT
Positive and negative electrodes are both on the rear side of solar cell
Conventional
Positive and negative electrodes are located on opposite sides of the cell.
— Cell Structure —
MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %
Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited
— Module Encapsulation —
Title goes here.
Replace conventional soldering with conductive foil and 2D encapsulation structure
Title goes here.
Conventional Cells connected by string ribbons
Factory
Packing & Transport
Transport:
Accodring to your products quantity and requirement, we will choose Security and Economical transportation for you.
Including Sea transportation, Air transportation, Land transportation and Express.
Payment & Warranty
Payment:
You can choose a convenient payment term according to your local condition, and we accept Telegraphic Transfer, Western Union, L/C at sight, and on-line payment.
If you are worry about your money safety, we recommend Alibaba Trade Assurance Payment, which can protect your money until you receive your products.
More info please click the below picture:
Solar Panels Warranty:
Damage in transit (CNF Terms), we will make up for you free without any reason.
Project
Middle East Project
German Project
Touring Car Project
Yacht Project
