Quick Details
-
Return Force (kN):
-
3150 kN
-
Place of Origin:
-
China
-
Brand Name:
-
BEKE
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2830*1500*4300mm
-
Weight (T):
-
17.5 T
-
Model Number:
-
Y32-315T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
Hot Product 2023
Quick Details
-

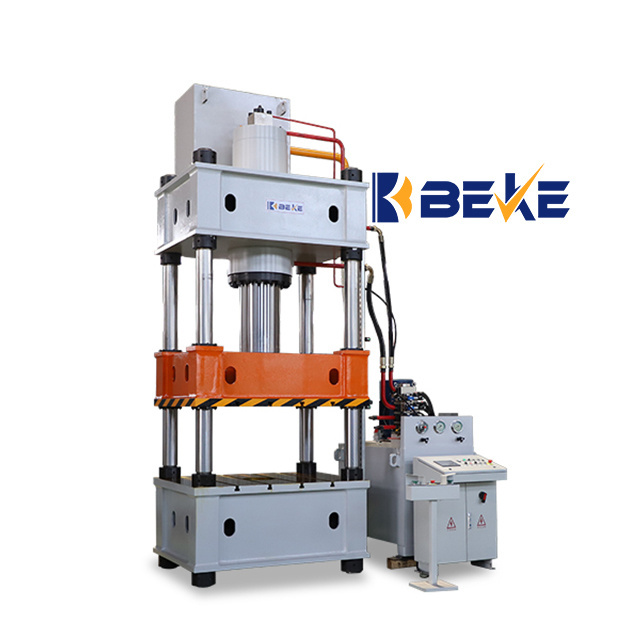

Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
800
-
Ejector Force (kN):
-
630
-
Return Force (kN):
-
3150 kN
-
Place of Origin:
-
China
-
Brand Name:
-
BEKE
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2830*1500*4300mm
-
Weight (T):
-
17.5 T
-
Model Number:
-
Y32-315T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
Hot Product 2023
Products Description
Technical Details
|
ITEM
|
|
UNIT
|
Y32-315
|
|
|
Nominal pressure
|
|
KN
|
3150
|
|
|
Liquid working pressure
|
|
Mpa
|
25
|
|
|
Ejection force
|
|
KN
|
630
|
|
|
Maximum opening height
|
|
mm
|
1250
|
|
|
Slide stroke
|
|
mm
|
800
|
|
|
Ejection cylinder stroke
|
|
|
300
|
|
|
Slider down speed |
Descent speed
|
mm/s
|
120
|
|
|
|
Pressing speed
|
mm/s
|
5-12
|
|
|
|
Return speed
|
mm/s
|
65
|
|
|
Effective size of worktable
|
Left to Right
|
mm
|
1200
|
|
|
|
Front to Back
|
mm
|
1200
|
|
|
Table height above floor
|
|
mm
|
700
|
|
|
Motor power
|
|
kw
|
22
|
|
