Quick Details
-
Brand Name:
-
DSW
-
Dimension(L*W*H):
-
6058*2438*2591
-
Weight:
-
9000
-
Product name:
-

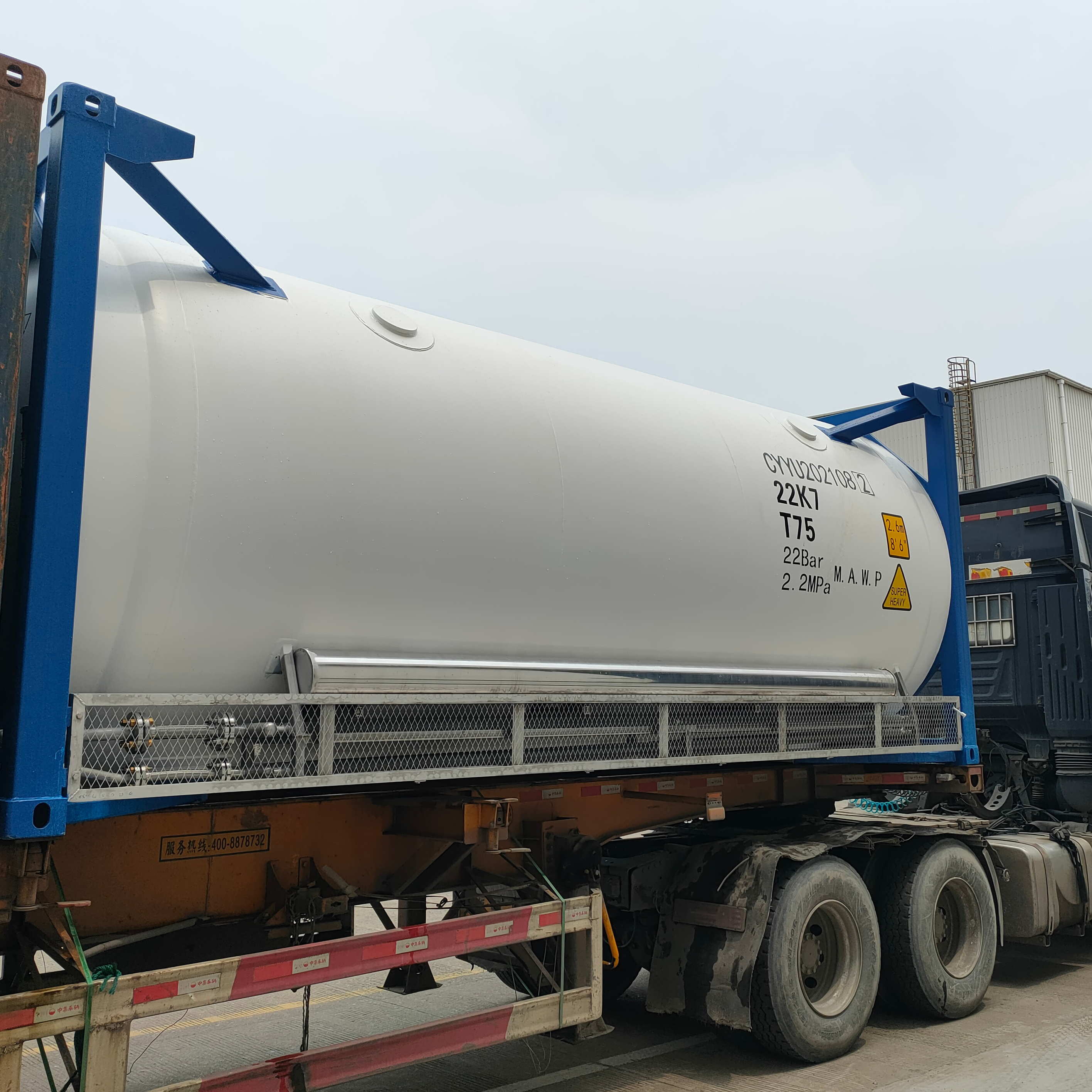

ISO Tank Container
Quick Details
-
Capacity:
-
20000L
-
Max Working Pressure(MPa):
-
2.2 MPa
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DSW
-
Dimension(L*W*H):
-
6058*2438*2591
-
Weight:
-
9000
-
Product name:
-
ISO Tank Container
Product Description
|
item
|
value
|
|
Condition
|
New
|
|
Applicable Industries
|
Manufacturing Plant
|
|
Max Working Pressure(MPa)
|
2.2MPa
|
|
Video outgoing-inspection
|
Not Available
|
|
Machinery Test Report
|
Not Available
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Pressure vessel
|
|
Capacity
|
20000L
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
DSW
|
|
Dimension(L*W*H)
|
6058*2438*2591mm
|
|
Weight
|
Around 7890kg
|
|
Certification
|
ASME/ISO688/EN/CCS
|
|
Warranty
|
1 Year
|
|
|
Online support
|
|
Key Selling Points
|
Competitive Price
|
|
After Warranty Service
|
Online support
|
|
Local Service Location
|
None
|
|
Showroom Location
|
None
|
|
Product name
|
ISO Tank Container
|
|
Material
|
SA-240M 304
|
|
Capacity
|
20m3
|
|
Volume
|
20000L
|
|
Working pressure
|
2.2Mpa
|
|
Dimension
|
6058*2438*2591mm
|
|
Weight
|
7890kg
|
Specification
|
Model：1CC-TCS-20800/22
|
|
|
|
|
||||
|
NO
|
Items
|
Inner vessel
|
|
Outer vessel
|
||||
|
1
|
Design pressure MPa
|
2.2
|
|
-0.1（outer）
|
||||
|
2
|
Working pressure MPa
|
2.2
|
|
-0.1（outer）
|
||||
|
3
|
MAWP MPa
|
2.2
|
|
/
|
||||
|
4
|
Design temperature ℃
|
-196
|
|
-19～50
|
||||
|
5
|
Working temperature ℃
|
≥-196
|
|
normal
|
||||
|
6
|
Pneumatic test MPa
|
2.2
|
|
HLD
|
||||
|
7
|
G. Vol m3
|
20.8
|
|
5.15(interlayer)
|
||||
|
8
|
E. Vol m3
|
19.76
|
|
/
|
||||
|
9
|
Medium
|
LCO2
|
|
Multi layer
|
||||
|
10
|
Main material
|
SA240M304
|
|
Q345R
|
||||
|
11
|
Treatment
|
Pickling and passivation
|
|
Sanding and coating
|
||||
|
12
|
Corrosion allowance mm
|
0
|
|
0
|
||||
|
13
|
Joint efficiency
|
1
|
|
0.85
|
||||
|
14
|
Filling rate
|
95%
|
|
/
|
||||
|
15
|
Static evaporation %/d
|
≤0.35 (by LIN)
|
|
|
||||
|
16
|
Seal off vacuum degree Pa
|
≤1×10-2
|
|
|
||||
|
17
|
Leakage of vacuum interspace Pam3/s
|
≤1×10-6
|
|
|
||||
|
18
|
ISO code
|
22T7
|
|
|
||||
|
19
|
Diameter mm
|
Φ2150
|
Φ2400
|
|
||||
|
20
|
External Dimensions mm
|
6058×2438×2591
|
|
|
||||
|
21
|
type
|
Horizontal
|
|
|
||||
|
22
|
Tare weight Kg
|
~7890
|
|
|
||||
|
23
|
Fully loading weight Kg
|
~212621
|
|
|
||||
|
24
|
Design service life
|
15years
|
|
|
||||
|
25
|
Open pressure for safety valve
|
2.31Mpa
|
|
|
||||
|
26
|
Sort
|
Ⅲ
|
|
|
||||
|
27
|
Portable tank guideline
|
T75
|
|
|
||||
