Quick Details
-
Weight:
-
7200 KG
-
Drilling Diameter:
-
140-325mm
-
Drilling Depth:
-
280m
-
Mobility:
-
yes
-
Product name:
-
Water Drilling Rig Bore Well Drilling Machines in Pakistan
-
Drilling diameter:
-
140-325mm
-
Engine:
-
85KW
-
Model Number:
-
CS300
-
Max Drilling Depth:
-
300M
-
Width of loading (m):
-
2.5
-
The penetration efficiency (m/h):
-
15-35
-
Using air pressure (MPA):
-
1.7-3.0(Mpa)
-
Papid rise speed (m/min):
-
22
-
Swing torque (N.m):
-
5700-7500
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CS DRILL
-
Dimension(L*W*H):
-
4100*2000*2500mm
-
Weight:
-
7200 KG
-
Drilling Diameter:
-
140-325mm
-
Drilling Depth:
-
280m
-
Mobility:
-
yes
-
Product name:
-
Water Drilling Rig Bore Well Drilling Machines in Pakistan
-
Drilling diameter:
-
140-325mm
-
Engine:
-
85KW
-
Model Number:
-
CS300
-
Max Drilling Depth:
-
300M
-
Width of loading (m):
-
2.5
-
The penetration efficiency (m/h):
-
15-35
-
Using air pressure (MPA):
-
1.7-3.0(Mpa)
-
Papid rise speed (m/min):
-
22
-
Swing torque (N.m):
-
5700-7500
Products Description
Remark:
This drilling rig needs to be used with an air compressor. If you want to buy an air compressor at the same time, Please tell us your drilling depth and diameter. And we will give the corresponding recommendation. We can also put the drilling rig on a truck mounted chassis. Our engineers will help you get what you want.
|
CS Drill Crawler Type fy 300 Water Well Drilling Rig 200m-300m Bore Well Drilling Machines in Pakistan
|
|
|
|
|
||||
|
The Weight (T)
|
7.2 T
|
|
Drill pipe diameter
|
Φ76 Φ89 Φ102
|
||||
|
The Hole Diameter(mm)
|
140mm-325mm
|
|
Drill Pipe Length (m)
|
1.5m 2.0m 3.0m
|
||||
|
Drilling Depth (m)
|
300 m
|
|
Rig lifting force (T)
|
18T
|
||||
|
One-time advance length (m)
|
3.6 m
|
|
Rapid Rise Speed (m/min)
|
22 m/min
|
||||
|
Walking speed (km/h)
|
2.5km/h
|
|
Fast Feeding Speed(m/min)
|
40 m/min
|
||||
|
Climbing angles (Max.)
|
30 |
|
|
|
||||
|
Equipped capacitor (kw)
|
85 KW
|
|
Hoisting force of winch (T)
|
2 T
|
||||
|
Working Air Pressure (Mpa)
|
1.7-3.0 Mpa
|
|
Swing torque (N.M)
|
5700-7500
|
||||
|
Air consumption (m³/min)
|
17-36 m³/min
|
|
Dimension (mm)
|
4100*2000*2500mm
|
||||
|
The drilling efficiency (m/h)
|
15-35 m/h
|
|
High leg Stroke (m)
|
1.4 m
|
||||
|
Width of loading
|
2.7 m
|
|
Equipped with hammer
|
Medium and high pneumatic pressure series
|
||||
|
The engine brand
|
Yuchai Engine
|
|
|
|
||||
Product Introduction
CS300

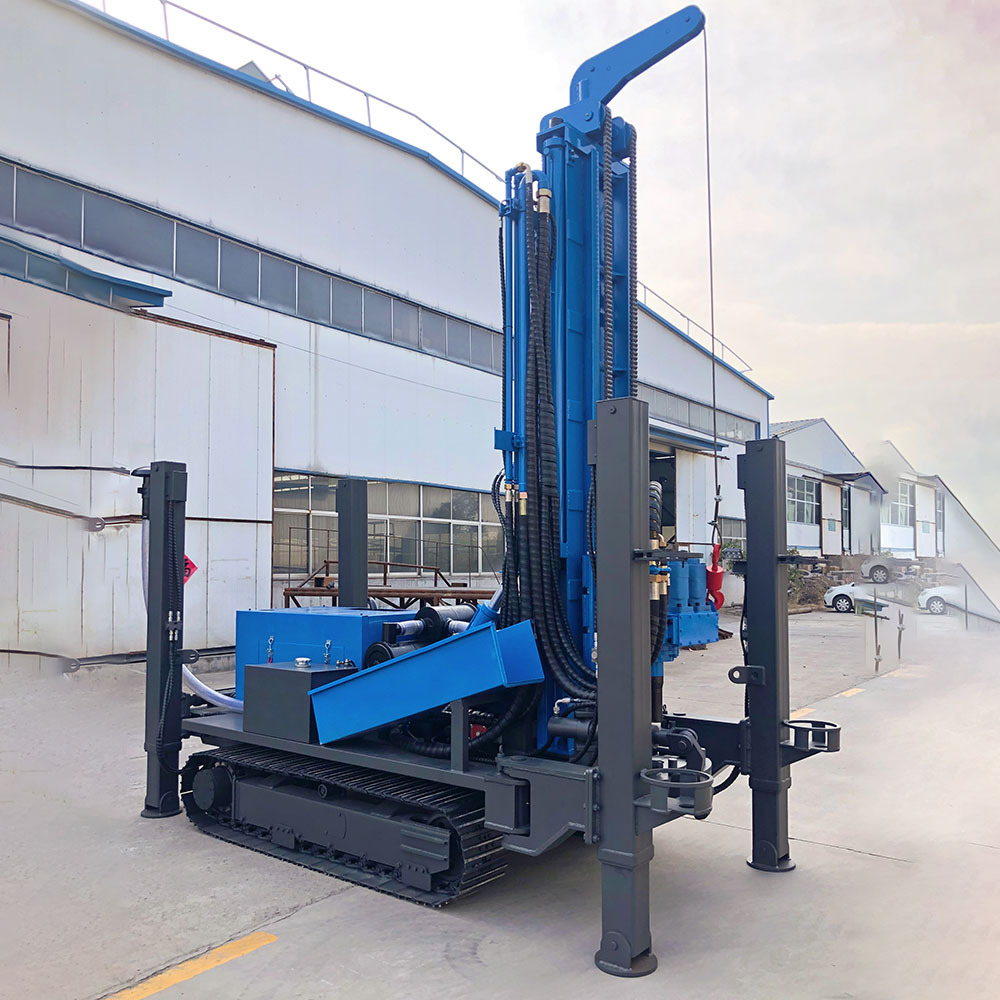

CS Drill Crawler Type fy 300 Water Well Drilling Rig 200m-300m Bore Well Drilling Machines in Pakistan
widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
1. Energy saving. Low tower design, can drill indoor and outdoor.
2. Patented product, unique design and simple drilling structure.
3. Easy to transport and can learn how to handle the machine in short time.
4. Assure easily operation and long life service life
2. Patented product, unique design and simple drilling structure.
3. Easy to transport and can learn how to handle the machine in short time.
4. Assure easily operation and long life service life
Note:
The pneumatic drilling rig is multifunction, with different configurations suitable for different geologies. We can accept customization. If you have any good ideas, please contact us. Our engineers will help you get what you want.
