RK2672DM 0-5KV/1000VA Withstand Voltage Tester Signal Generator Pressure Switching Power Hi-Pot Tester

RK2672DM 0-5KV/1000VA Withstand Voltage Tester Signal Generator Pressure Switching Power Hi-Pot Tester

FOB Reference Price: Get Latest Price

≥1 Pieces

US $744

≥2 Pieces

US $660

≥6 Pieces

US $555

≥10 Pieces

US $454

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Rek

Model Number:: RK2672DM

Voltage:: AC DC 0-5KV

Product name:: ac Withstand Voltage Tester

Leakage Current (AC):: 0-2/20/200m A

Leakage Current Accuracy:: ±5%+3 word

Output waveform:: 50Hz/60Hz±3Hz

Time Control:: 0.0s-999s,continuously setting &manual

Function:: ac dc Withstand Voltage Tester

Power dissipation:: 1000VA

Key words:: ac Withstand Voltage Test

Size:: 440*380*180mm

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: China

Brand Name:: Rek

Model Number:: RK2672DM

Voltage:: AC DC 0-5KV

Product name:: ac Withstand Voltage Tester

Leakage Current (AC):: 0-2/20/200m A

Leakage Current Accuracy:: ±5%+3 word

Output waveform:: 50Hz/60Hz±3Hz

Time Control:: 0.0s-999s,continuously setting &manual

Function:: ac dc Withstand Voltage Tester

Power dissipation:: 1000VA

Key words:: ac Withstand Voltage Test

Size:: 440*380*180mm

Product Description

model	RK2672DM
The output voltage	AC DC 0 to 5kV
Test current	AC 0-2/20/200mA DC 0-2/20mA
Test accuracy	± (5% + 3 words)
testing time	0.0s to 999s 0.0=Continuous test
Transformer capacity	1000VA
PLC interface	Optional
Power requirement	AC 220V ± 10% 50Hz / 60Hz ± 3Hz
working environment	Temperature (0-40) °C Humidity ≤ 75% RH
Dimensions	440380180mm
weight	24.5kg

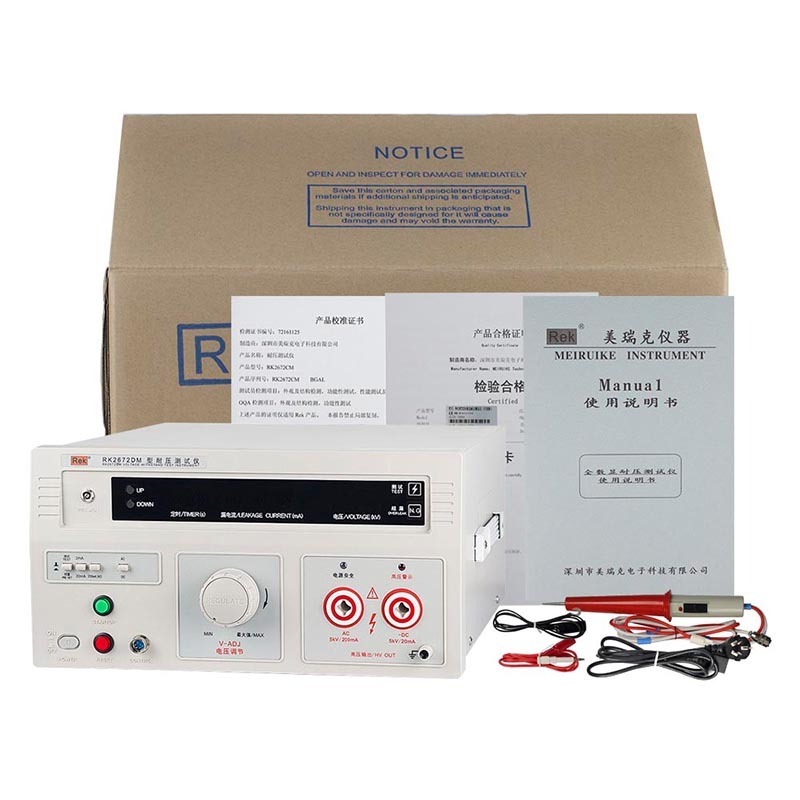

Accessories	Withstand voltage test bar, test line, ground wire, power cord

Performance characteristics

1, AC and DC 5KV universal pressure tester

2. The output voltage is regulated by the voltage regulator, which has high reliability and high durability.

3, using high-brightness LED digital tube to display test time, voltage, current, real-time display of breakdown current value and voltage value

4, the alarm current value can be continuously preset

5, the test time is displayed by three digital tubes

6, equipped with the signal input and output interface required by PLC, can easily form a comprehensive test system with PLC

Details Images

Standard remote control high voltage bar

Standard high voltage test line

Standard grounding test line

Product Usage

product description

The withstand voltage tester is an instrument for measuring the withstand voltage. It can test the electrical safety performance indexes such as breakdown voltage and leakage current of various tested objects intuitively, accurately and quickly, and can be used as a high voltage source to test components and Machine performance.

Application field

1, components

2, household appliances

3, insulation material

4, instrumentation

5, lighting appliances

6, electric heating appliances

7, wire and cable

Our Services & Strength

Our high-tech factory has developed and produced safety regulations, medical safety regulations, ultra-high voltage withstand voltage meter, digital high voltage meter, DC low resistance tester, intelligent electricity meter (power meter), linear power supply, switching power supply, electronic load A series of electronic measuring instruments, dedicated to providing customers with quality products, can also be customized according to customer needs to customize special-purpose and specifications products, so that every customer is more satisfied.

Packing&Shipping

Certifications
