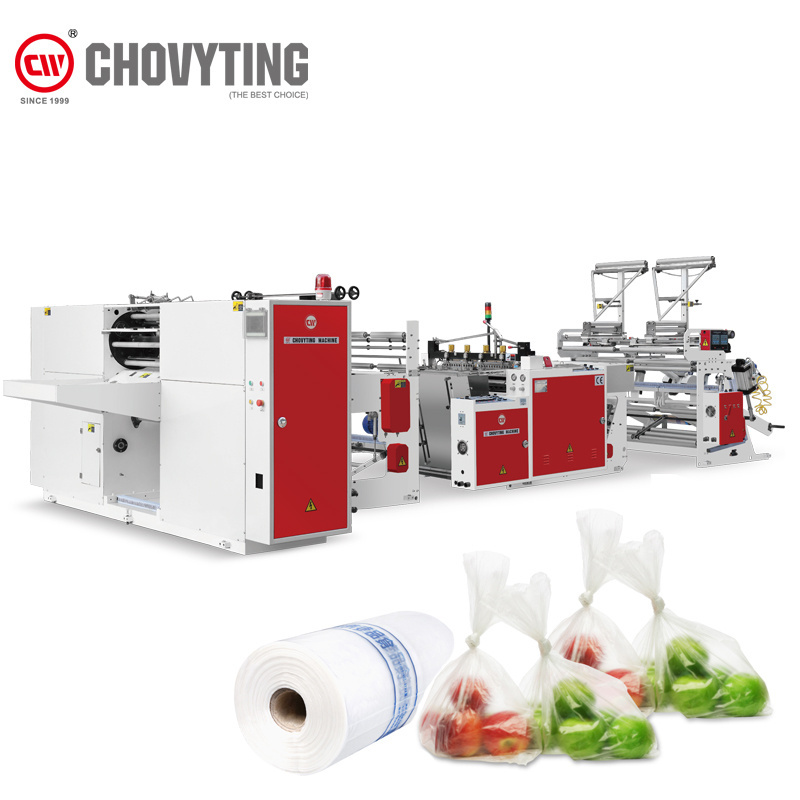

high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core
high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core
high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core
high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core
high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core
high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core
high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core
high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core

high speed plastic poly roll bag machine flat bottom seal plastic bag on roll making machine with core without core

FOB Reference Price: Get Latest Price
≥1 Sets
US $65000
≥5 Sets
US $63000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
CHOVYTING
Model Number:
CW-1000PR+C2
Voltage:
380V/220V 50HZ
Dimension(L*W*H):
6500*3250*1900mm
Weight:
2800 KG
After-sales Service Provided:
Engineers available to service machinery overseas
Machine name:
high speed roll to roll plastic polybag sealing cutting machine
Servo motor:
Yaskawa from japan
Inverter:
Yaskawa from japan
Touch Screen:
Weinview TAIWAN
Air cylinder:
Shako from taiwan
Switch:
IDEC Japan
Operation Language:
English Russia Arabic Spanish Chinese
Tension free:
yes

Quick Details

Machine Type:
Bag Forming Machine
Bag Type:
GARBAGE BAG
Material:
Plastic
Place of Origin:
Zhejiang, China
Brand Name:
CHOVYTING
Model Number:
CW-1000PR+C2
Voltage:
380V/220V 50HZ
Dimension(L*W*H):
6500*3250*1900mm
Weight:
2800 KG
After-sales Service Provided:
Engineers available to service machinery overseas
Machine name:
high speed roll to roll plastic polybag sealing cutting machine
Servo motor:
Yaskawa from japan
Inverter:
Yaskawa from japan
Touch Screen:
Weinview TAIWAN
Air cylinder:
Shako from taiwan
Switch:
IDEC Japan
Operation Language:
English Russia Arabic Spanish Chinese
Tension free:
yes
Product Description

Brief Introduction

This machine is producing rolling bag.

Also can make star bag,garbage bag,vegetable bag and table bag.

Fully automatic exchange system can reduce the labour force,in the excellent servo driven system,it is the best choice for producing printed bag and blank bag.

Main Features

1.Use 4 pcs servo motor driving,improve the speed and stability.
2.Long time but low temperature sealing way ensures the quality of the bag.
3.Perforation line always keeps a same distance from the sealing line to ensure there won’t be any tensile force whenever in changing of difference length.
4.Principles of sealing system uses swing,do not stop feeding.
5.Newly design paper core automatic feeding,positing and auto exchange new rolling.
6.Can to make printed bags and blank bags.

Optional

1.Auto label adding device
2.Double sealing decive
3.Hot slitting and sealing device

4.Online gusset device

Model
CW-1000PR+C2
Bag Making Type
rolling garbage bag,star bag,table bag,vegetable bag,C-type bag with core or without core
Width of unwind
900mm (single line, can with folding device),
300mm x 2 (double lines)
Diameter of unwind
Φ1000 mm (max.)
Length of bag making
250-10,000 mm(with shuttle system)
Speed of bag making
250 pcs/min
Line speed
with core - 80m/min,
without core - 100 m/min
Width of rewind
with core - 600mm (single line),300mm x 2 (double lines)
Without core - 600mm (single line),300mm x 2 (double lines)
Max.diameter of rewind
with core - Φ160mm (one roller )
Without core - Φ160mm (one roller )
Times of exchange
with core - 4 rolls/min (max.)
Without core - 6 rolls/min (max.)
Thickness of film
HDPE 0.015-0.04MM / per layer
LDPE 0.02-0.08MM / per layer
Total power
about 18.8KW

Machine size
6600 x 3300 x 1900 mm
Weight
2900 kgs
Air compressor (not included)
6 HP
Sample Bag
star sealing garbage bag making machine
bottom seal flat roll bag with label
flat roll bag with core
Detailed Images
friction unwinder: automatic lift the jumbo roll, can be one reel or two reels, with film break alarming function
Two line folding units for folding the film before sealing, for star bag purpose
sealing knife and perforation knife at the same place, the feeding adopt shuttle system to keep film feeding non stop when the
sealing is done.
C fold unit: for folding table cloth into smaller width for easy wind up
Rewinding part: can be one line or separate into two lines, and with optional paper core feeding or coreless function
control Panel & touch screen: 6 languages for your choice.
Main Part
Certificate
Packing
About Us
CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.
CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.
CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
Exhibition
FAQ
1) Is your company a factory or a trading company? We are a factory. 2) Where is your factory? How can i visit your company? Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us. 3) What is the suitable material for your machines? PE, OPP, laminated material ,etc are suitable for our machines 4) What kind of machine do you have ? We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc... 5) How many years of your factory? Our company is established since 1999. 6) What certificate of machine do you have? CE, ISO 2008, more than 50 pieces Patent of machine 7) What about the development of your company? Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well. 8) How many exhibition do you take part in? We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc... 9) How many agent do your company have? We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc... 10) How many workers of your company? More than 150 workers.
