AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers
AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers
AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers
AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers
AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers
AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers
AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers
AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers

AILUSI 2000L Cream Vacuum Emulsifying Mixer With Homogenizer pump and rotary lobe pump processing machine homogenizers

FOB Reference Price: Get Latest Price
≥1 Sets
US $16000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Max. Loading Capacity:
50-2000L
Weight (KG):
300 KG
Place of Origin:
Guangdong, China
Brand Name:
AILUSI
Voltage:
380V/50Hz
Dimension(L*W*H):
2450*1450*3000mm
Power (kW):
27 kW
Item:
GMP hygiene standards liquid soap mixing machine
Function:
Mixing and homogenizing liquid soap
Homogenizer:
Bottom homogenizer with frequency inverter
Homogenizer motor:
Power =11KW, speed =0-3600 rpm (Vertical Installation)
Mixing:
Upper frame oar scrape mixer
Structure:
Main tank, platform and cabinet
Material:
SUS304 & SUS316L
Heating method:
Electric heating / steam heating
Certification:
CE

Quick Details

Barrel Volume (L):
2200L
Max. Loading Volume (L):
2000 L
Range of Spindle Speed(r.p.m):
1 - 75 r.p.m
Max. Loading Capacity:
50-2000L
Weight (KG):
300 KG
Place of Origin:
Guangdong, China
Brand Name:
AILUSI
Voltage:
380V/50Hz
Dimension(L*W*H):
2450*1450*3000mm
Power (kW):
27 kW
Item:
GMP hygiene standards liquid soap mixing machine
Function:
Mixing and homogenizing liquid soap
Homogenizer:
Bottom homogenizer with frequency inverter
Homogenizer motor:
Power =11KW, speed =0-3600 rpm (Vertical Installation)
Mixing:
Upper frame oar scrape mixer
Structure:
Main tank, platform and cabinet
Material:
SUS304 & SUS316L
Heating method:
Electric heating / steam heating
Certification:
CE
Product Description

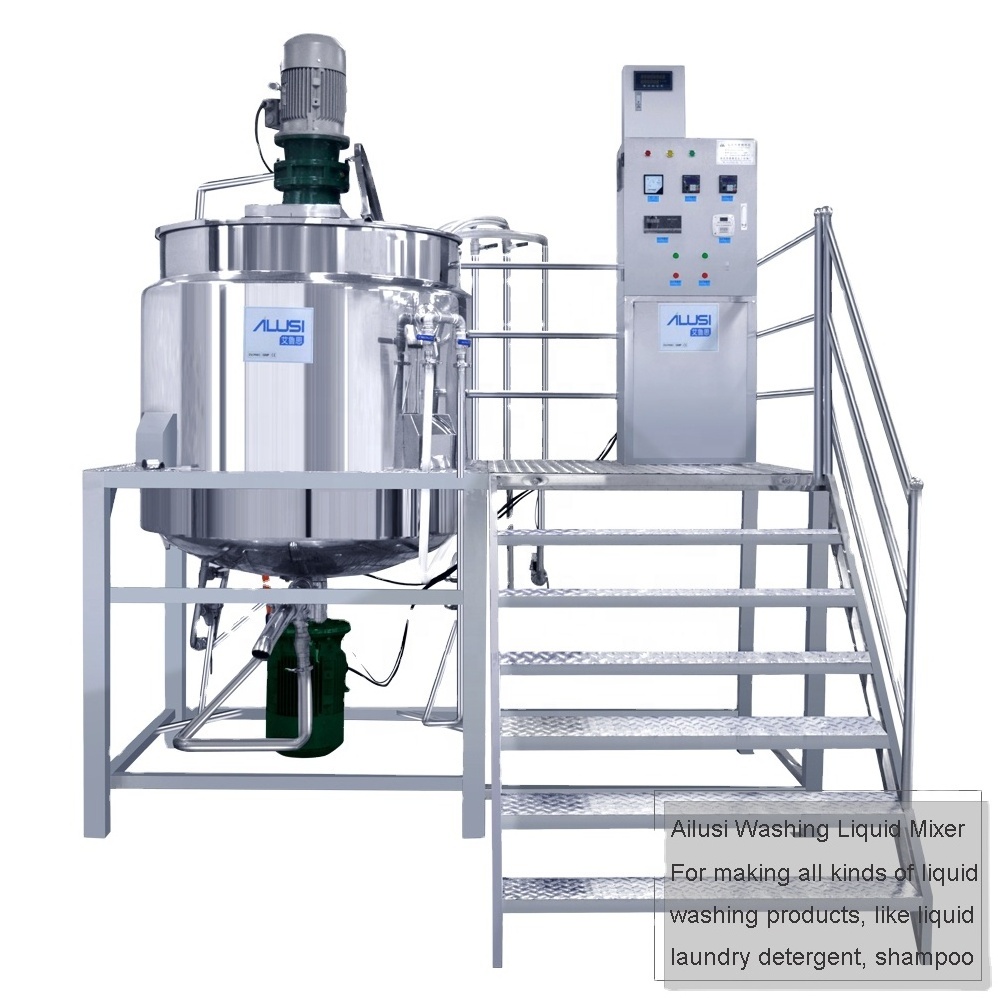

This liquid soap mixing machine has high speed disperser . mixing and disperse viscously, solid and liquid etc. various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period
Main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed
To produce liquid washing products, like shampoo, liquid soap, bath shower, dish washing, hand washing, lubricating oil, etc.
Finished products can be discharged by valve or match a screw pump.

Item
Heater(KW)
Mixer(KW)
Mixer Speed(RPM)
Homogenizer(KW)
Homogenizer Speed(RPM)
200L
6KW
1.5KW
0-75
4KW
0-3600
300L
9KW
2.2KW
0-75
4KW
0-3600
500L
18KW
3-4KW
0-75
5.5KW
0-3600
1000L
27KW/steam
4-5.5KW
0-75
7.5KW
0-3600
2000L
27KW/steam
5.5KW
0-75
11KW
0-3600
3000L
36KW/steam
7.5KW
0-75
15KW
0-3600
5000L
48KW/steam
11KW
0-75
22KW
0-3600

Main Features

1) Full of SUS304, contact materials parts SUS316L, GMP standard..

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Double jackets and insulation provide electric heating or steam heating..

4) High effection mixer and homogenizer emulsion products 2um.

5) Apply to cosmetics, shampoo, liquid soap, detergent, dish washing etc products.

Detailed Images

Mixing part

Name: Frame oar scraping blender with 1 fixed oar

Material: SUS316L

Speed: 0-75rpm, frequency inverter

Siemens motor + reducer provide strong and stable power for mixer, Panasonic brand frequency inverter, PTFE material scrape blade, Flange shaft coupling.

Homogenizer part

Name: High shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm, frequency inverter
Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, equipped Burgmann seal two sides tungsten seal. NSK bearing. water circulation cooling homogenizer.

Discharge part

Name: Flat valve outlet
Size: DN50/63
Material: SUS316L
New designed flat valve for bottom discharge. Non residual, Angle of ourlet suitable for products dischage easily. fast connection with pipes and pumps.

Flange part

Name: Flange
Material: SUS316L
Easy installtion, stable quality.

Related Products

300L vacuum emulsifying mixer

91.8% Response Rate

1T fixed emulsifying machine

91.8% Response Rate

50L vacuum emulsifying mixer

91.8% Response Rate

Packing & Delivery
Packaging
Size
2230(L) * 850 (W) *2400 (D)
Weight
800KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Certifications
Our Company
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Turn key service from start to the end.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
