Quick Details
-
Filling Accuracy:
-
2mm
-
Voltage:
-
220v 380v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Mars
-
Dimension(L*W*H):
-
2850*2200* 2150mm
-
Weight:
-
4500 KG
-
Keywords:
-
Mineral Water Plant
-
Washing head:
-
24
-
Filling head:
-
24
-
Capping head:
-
8
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
Thailand
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE ISO
-
Material:
-
Stainless Steel 304/316
Quick Details
-
Machinery Capacity:
-
10000BPH
-
Packaging Material:
-
Glass, Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
2mm
-
Voltage:
-
220v 380v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Mars
-
Dimension(L*W*H):
-
2850*2200* 2150mm
-
Weight:
-
4500 KG
-
Keywords:
-
Mineral Water Plant
-
Washing head:
-
24
-
Filling head:
-
24
-
Capping head:
-
8
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
Thailand
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE ISO
-
Material:
-
Stainless Steel 304/316

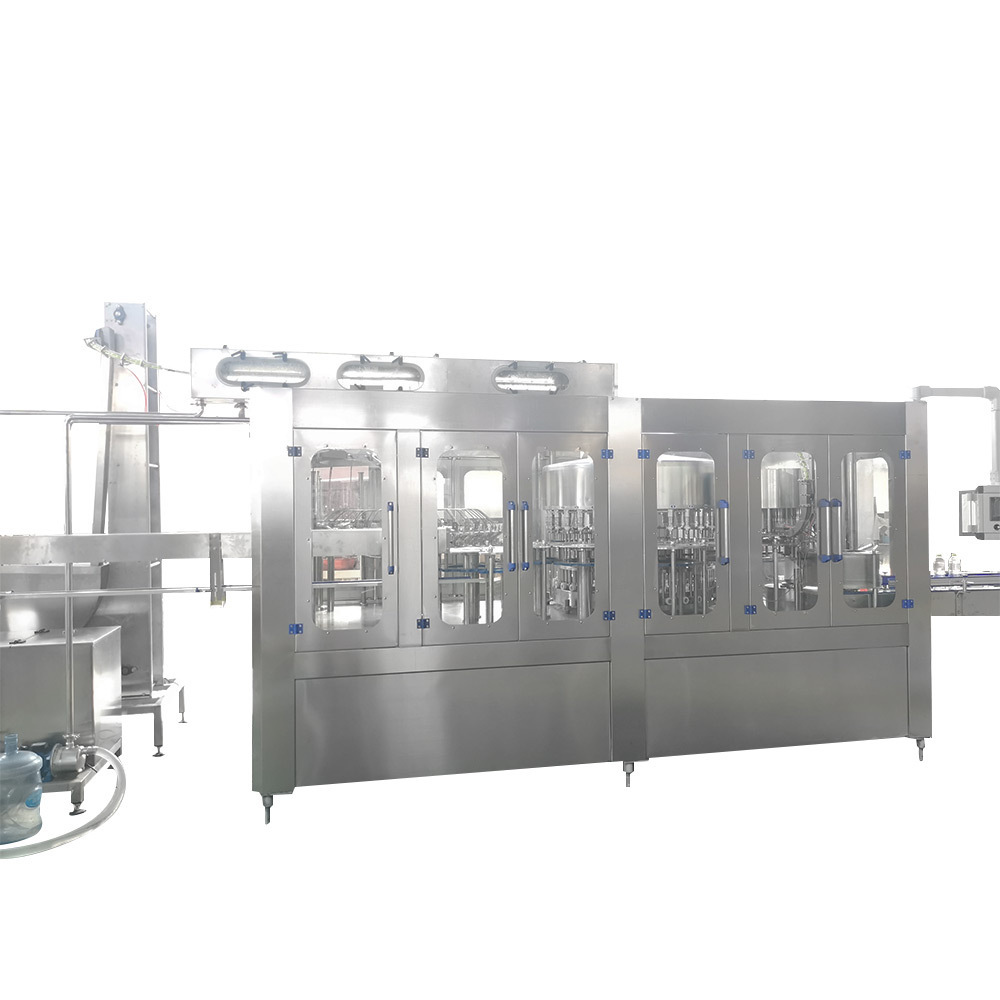

Small Mini Complete Mineral Water Bottling Plant
Application:
This water filling machine is used in the production of non-carbonated dirnk ,such as mineral water and purified water etc ,washing filling & cappingintegrated into one machine.
Mineral Water Plant Complete Features:
1. The suspending hottle-neck damping design make the bottle stable during the high-speed moving conditions.By changing a few parts, it can meet the production of different types of bottles easily.
2. The advanced graving filling technology used in this machine makes the filling quick ,steady and accurate.
3. Magnetic gorque is used for screw capping and the power of screw capping can be adjusted steplessly ,capping is realiable and do no harm to the caps.
4. Advanced technologies such as human-machine inter face touch-screen and PLC program control are adopted in this machine.
5. All parts that have direct contact witht he wafe are made of high quality SS ,the criticed dlectrical components are from famous interantional companies such as Mitsubishi ,Omorn .
Mineral Water Plant Complete From:
|
Model |
CGF14-12-5 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-10-12 |
CGF50-50-15 |
|
Production capacity |
4000 |
7000 |
9000-10000 |
14000-15000 |
17000-18000 |
20000 |
|
Bottle neck: Φ50-Φ100mm, bottle height: 150-320mm, volume: 330-1500ml |
||||||
|
Plastic screw cap |
||||||
|
Gas consumption |
0.2 |
0.4 |
0.4 |
0.5 |
0.55 |
0.6 |
|
Total power |
4.6 |
5.4 |
6.4 |
8.07 |
9.56 |
11.18 |
|
Total weight |
2500 |
3800 |
5200 |
6500 |
8000 |
11200 |
|
contour dimension |
2300*1700* 2150 |
2430*1830* 2030 |
2920*2200* 2600 |
3950*2210* 2710 |
3800*2800* 2710 |
4510*3400* 2900 |
Mineral Water Plant Complete
