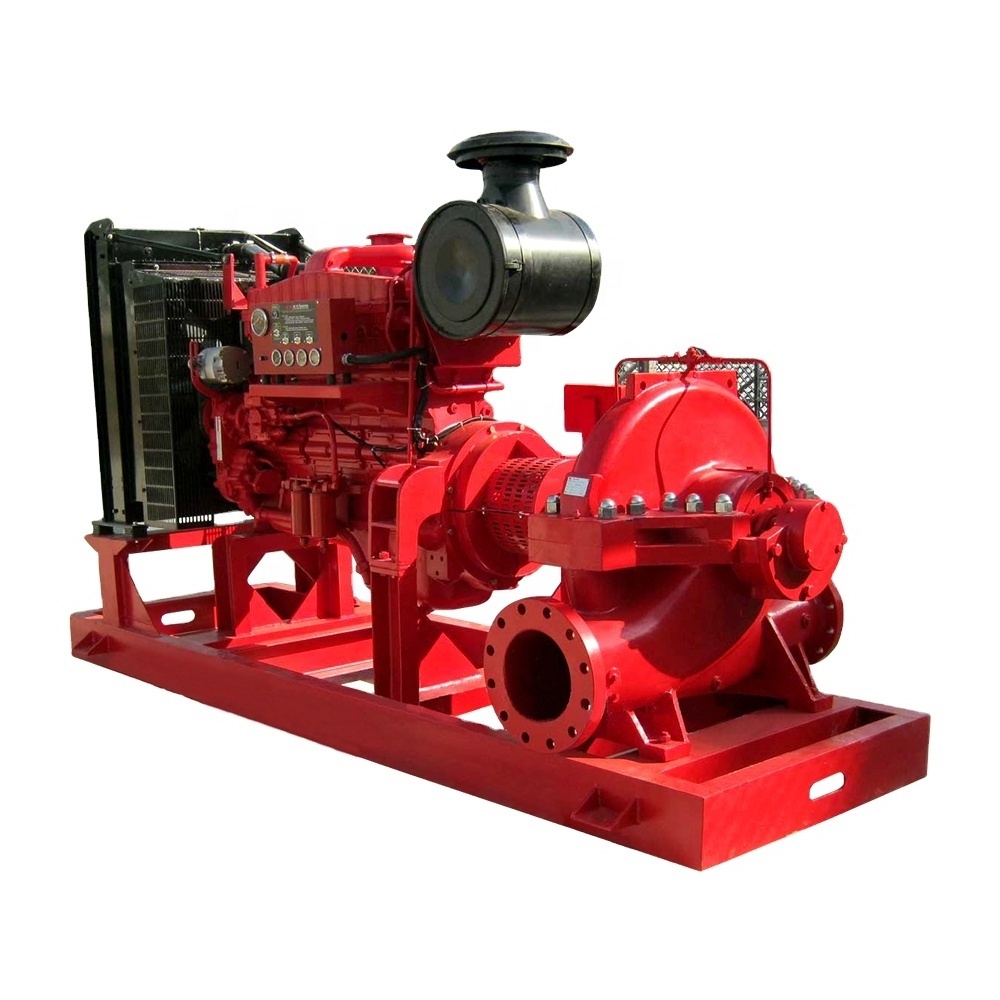

Diesel Engine NFPA 20 Fire Pump, Fire Fighting Water Pump

Diesel Engine NFPA 20 Fire Pump, Fire Fighting Water Pump

FOB Reference Price: Get Latest Price

≥1 Sets

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: YONJOU

Model Number:: S

Place of Origin:: Zhejiang, China

Outlet Size:: 6 inch

Theory:: Centrifugal Pump

Usage:: Water

Material:: Cast Iron/Stinless steel

Color:: Red

Standard:: NFPA 20

MOQ:: 1set

Lead time:: 30 days

Quick Details

Application:: Automotive Industry, Industrial Utilities

Pressure:: High pressure

Voltage:: NONE

Brand Name:: YONJOU

Model Number:: S

Place of Origin:: Zhejiang, China

Outlet Size:: 6 inch

Theory:: Centrifugal Pump

Usage:: Water

Material:: Cast Iron/Stinless steel

Color:: Red

Standard:: NFPA 20

MOQ:: 1set

Lead time:: 30 days

Product Description

Summarize:

1.Diesel Engine NFPA 20 Fire Pump, Fire Fighting Water Pump is a single stage double suction split casing pump with high capacity and pressure, which can transmit clean water or similar liquids(Oil).

2. S,XS, YPS single stage double suction split case are widely used in delivering liquids to the water plant,circulation water system of airconditioner,pipe net syetem of supplying heated water,construction,drainage pumping station,power station,industrial water supply system,ship industry,mine and etc.

Product details:

Pump Type	Split Casing Pump
Casing Material	HT200
Impeller	SS304,SS316,Copper,HT200
Pump Sealing	Packing seal,Mechanical seal
Capacity Range	126m3/h~8520m3/h
Head Range	8m~140m
Inlet/Outlet diameter	6"(150mm)~32"(800mm)
Rotary Speed	1450rmp/2950rpm/585rpm/730rpm/970rpm
NPSH(r)	2.5m~7.5m
N.weight	165kgs~2550kgs
Pump Parts	Casing,Pump cover,Impeller,Shaft, Double suction sealing ring Shaft sleeve,Bearing etc
Certificate	ISO9001:2008,CE,TUV

Application Area

♦ Construction	♦ Industrial	♦ Municipal
♦ Agricultural	♦ Mining	♦ Dewatering
♦ Industrial Waste	♦ Sewage	♦ Oil Field
♦ Petrochemical	♦ Paper Mills	♦ Processing
