Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
original
-
Model Number:
-
IPC-HDW2831T-AS-S2
-
Video Compression Format:
-
H265
-
Product model:
-
Infrared IPC-HDW2831T-AS-S2
-
Lens:
-
2.8 3.6MM lens
-
camera:
-
1/2" 8Megapixel progressive
-
sd:
-
Support
-
IR Distance(m):
-
30M
-
Video Compression Format:H.264,MJPEG:
-
H.+/H.264
-
Power Supply(V):
-
DC 12V/ POE
-
Network Interface:
-
RJ-45 10/100Mb Ethernet Slot
-
Resolution:
-
8MP
-
Management Software:
-
Smart PSS; DSS; DMSS
Quick Details
-
Special Features:
-
Human Motion Tracking, Face detection, NIGHT VISION, Motion Detection, Temperature Measurement, Waterproof / Weatherproof, Finger recognition, Built-in Siren, People Counting, Face Recognition, Low Power
-
Function:
-
Vandal-proof, NIGHT VISION, Built-in Mic, Two-way Audio, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
original
-
Model Number:
-
IPC-HDW2831T-AS-S2
-
Video Compression Format:
-
H265
-
Product model:
-
Infrared IPC-HDW2831T-AS-S2
-
Lens:
-
2.8 3.6MM lens
-
camera:
-
1/2" 8Megapixel progressive
-
sd:
-
Support
-
IR Distance(m):
-
30M
-
Video Compression Format:H.264,MJPEG:
-
H.+/H.264
-
Power Supply(V):
-
DC 12V/ POE
-
Network Interface:
-
RJ-45 10/100Mb Ethernet Slot
-
Resolution:
-
8MP
-
Management Software:
-
Smart PSS; DSS; DMSS
Product Paramenters

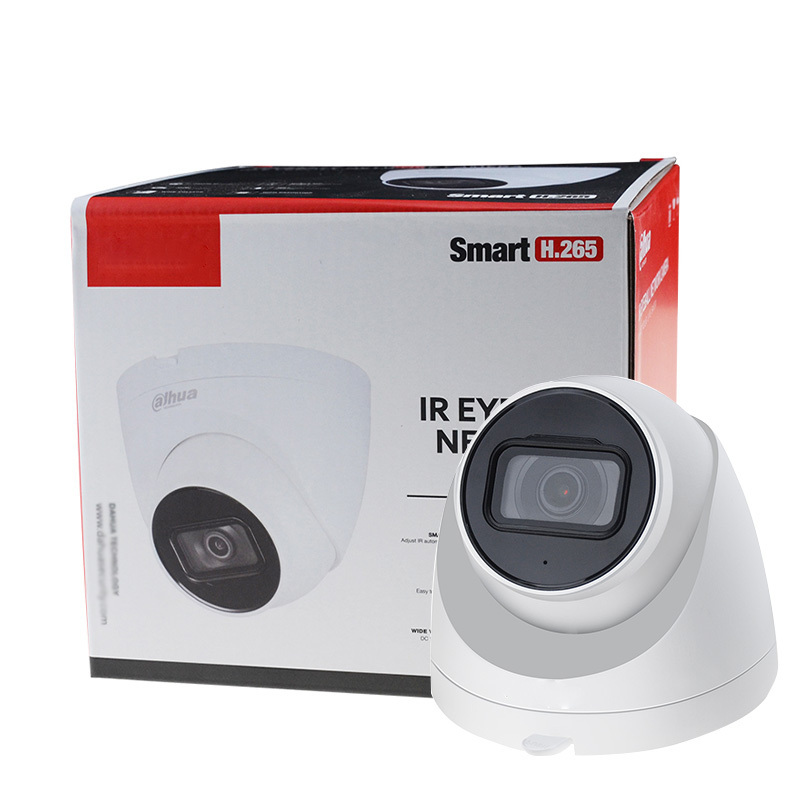

8MP Lite IR Fixed-focal Eyeball Network Camera
> 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition.
> Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
> high compression rate, ultra-low bit rate.
> Built-in IR LED, max IR distance: 30 m.
> ROI, SMART H.264+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire.
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection.
> Supports max. 256 GB Micro SD card, built-in MIC.
> 12V DC/PoE power supply.
> IP67 protection.
> 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition.
> Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
> high compression rate, ultra-low bit rate.
> Built-in IR LED, max IR distance: 30 m.
> ROI, SMART H.264+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire.
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection.
> Supports max. 256 GB Micro SD card, built-in MIC.
> 12V DC/PoE power supply.
> IP67 protection.
|
Camera
|
IPC-HDW2831T-AS-S2
|
|
Image Sensor
|
1/2.7” 8Megapixel progressive CMOS
|
|
Max. Resolution
|
3840 (H) × 2160 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
256 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.009 Lux@F2.0
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
30 m (98.43 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
2 (IR LED)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360°
|
|
|
Tilt: 0°–78°
|
|
|
Rotation: 0°–360°
|
|
Lens Type
|
Fixed-focal
|
|
Mount Type
|
M12
|
|
Focal Length
|
2.8 mm
|
|
|
3.6 mm
|
|
Max. Aperture
|
F2.0
|
|
|
F2.0
|
|
Field of View
|
2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°
|
|
|
3.6 mm: Pan 87° × Tilt 47° × Diagonal 104°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 1.0 m (3.3 ft)
|
|
|
3.6 mm: 1.9 m (6.2 ft)
|
|
DORI Distance
|
Lens
|
|
|
2.8 mm
|
|
|
3.6 mm
|
|
Smart event
|
|
|
IVS
|
Tripwire; intrusion
|
|
Video
|
|
|
Video Compression
|
H.264; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.264+
|
|
Video Frame Rate
|
Main stream:
|
|
|
3840 × 2160 (1 fps–15 fps)
|
|
|
2688 × 1520 (1 fps–25/30 fps)
|
|
|
Sub stream:
|
|
|
704 × 576 (1 fps–25 fps)
|
|
|
704 × 480 (1 fps–30 fps)
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 ×
1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–8192 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
G.711A; G.711Mu; G.726
|
|
Alarm
|
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire;
intrusion; illegal access; voltage detection; audio detection; safety exception |
|
Network
|
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering;
generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
NFS; PPPoE; Bonjour |
|
Interoperability
|
ON-VIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
|
|
User/Host
|
20
|
|
Storage
|
FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
|
|
Browser
|
IE
|
|
|
Chrome
|
|
|
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
|
Certifications
|
CE-LVD: EN62368-1
|
|
|
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
|
|
|
FCC: 47 CFR FCC Part 15, Subpart B
|
|
|
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Power
|
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
< 7.2W
|
|
Environment
|
|
|
Operating Conditions
|
–40°C to +55°C (–40°F to +131°F)/less than ≤ 95% RH
|
|
Storage Temperature
|
–40°C to +60°C (–40°F to +140°F)
|
|
Protection
|
IP67
|
|
Structure
|
|
|
Casing
|
Metal + Plastic
|
|
Dimensions
|
100.9 mm × Φ109.9 mm (3.97" × Φ4.33")
|
|
Net Weight
|
0.39 kg (0.9 lb)
|
|
Gross Weight
|
0.56 kg (1.2 lb)
|
