Quick Details
-
Application:
-
Entry
-
Design Style:
-
Modern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XMOYA
-
Model Number:
-
OUYA-D4075
-
Open Style:
-
Swing
-
Position:
-
Exterior
-
Type:
-
Entry Doors
-
Product Material:
-
Wrought iron
-
Regular Jamb size:
-
50mm(2") x 150mm(6")
-
Regular Scrollwork size:
-
14mm(11/20") x 14mm(11/20") , 16mm(5/8") x 16mm (5/8")
-
Glass:
-
Double-panel tempered insulated glass
-
Color:
-
As your request
-
Standard Size:
-
828.8mm x 2438.4mm 965.2mmx2082.8mm
-
Rust-proof treatment:
-
Sand Blasting & Zinc Spraying
Quick Details
-
Door Material:
-
Steel
-
Feature:
-
Anti-Theft
-
Main Material:
-
Steel
-
Application:
-
Entry
-
Design Style:
-
Modern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XMOYA
-
Model Number:
-
OUYA-D4075
-
Open Style:
-
Swing
-
Position:
-
Exterior
-
Type:
-
Entry Doors
-
Product Material:
-
Wrought iron
-
Regular Jamb size:
-
50mm(2") x 150mm(6")
-
Regular Scrollwork size:
-
14mm(11/20") x 14mm(11/20") , 16mm(5/8") x 16mm (5/8")
-
Glass:
-
Double-panel tempered insulated glass
-
Color:
-
As your request
-
Standard Size:
-
828.8mm x 2438.4mm 965.2mmx2082.8mm
-
Rust-proof treatment:
-
Sand Blasting & Zinc Spraying

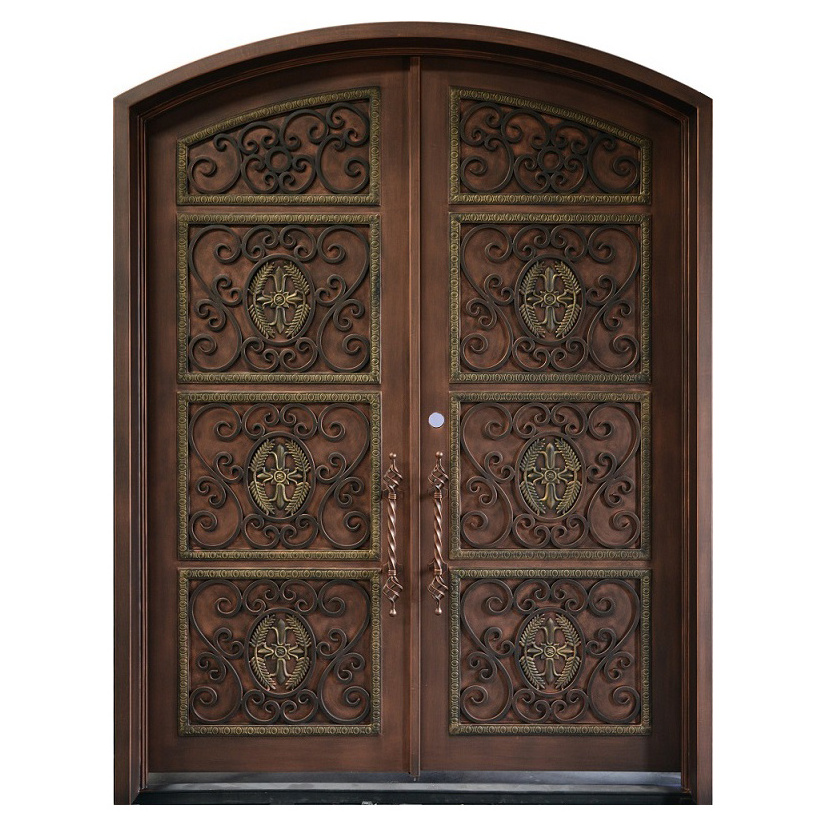

Nigeria interior front wrought iron doors design
Standard Double Door Size:72"x96"
Standard Single Door Size: 38"x82"
| Material Size |
Oya Iron Doors are made of 12-14 gauge steel with Iron scrollwork by 5/9" solid iron. All iron construction is to make sure your entry door is strong and durable to stand the test of time. |
| Glass Window |
Each entry door includes double-panel insulated glass window that open independently. This feature allows for ventilation, easy access for cleaning, and the safety to keep the visitor outside who the homeowner is talking to. |
| Iron Door Process |
Loft---Assemble---Descaling---Coarse Grinding---Sand blasting & Zinc spray---Door Adjust- --Base paint---Coats filler & Fine Grinding---Hand fauxing with baked on satin overcoat to protect finish---Face paint. Make the entry door is maintenance-free, and the color hardly fade. |
| Door Frames |
Door frames are square and leveled before the luxurious ball bearings hinges are positioned and welded there by ensuring a smooth operation of the door. |
| Sealed with weather stripping and injected with foam |
To conserve energy and eliminate wind drafts, the iron door is sealed with weather stripping, and the entire door is injected with polyurethane insulation. |
| Welding | Most welding is performed from the inside in order not to alter smooth finish line. |
| Threshold |
Thickness: 1"(25.4mm) Wrought iron threshold slopes down making sure water is flowing away outside, maintaining frame integrity during shipping and installation. |
| Lock and handle |
Be o ptional . The pre-drilled holes are compatible with most hardware. Pre hung with installed flush bolts . |
| Color | See the attached picture . |
| Glass |
19mm insulated glass(5mm+9A+5mm) Clear+Clear, Rainstorm+Clear, Hammer water+Clear, Sand blasted+ Clear, Clear+Low-e, Rainstorm+Low-e, Hammer water+Low-e, Sand blasted+Low-e |
» CAD drawing
» Prepare material
» Assemble
» Welding
» Polishing
» Inject the PE foam into the jamb and frame
» Sand blasting & Hot Zinc Spray
» Ajust the door
»
Epoxy slurry to fill minor imperfections
»
Putty filling four time
» Epoxy primer two time
»
Acrylic acid black paint three time
»
Hand applied faux finish
» Varnish coatn two time
