Quick Details
-
Brand Name:
-
RE
-
Dimension(L*W*H):
-
844*942*878mm
-
Weight:
-
500 KG
-
Model:
-
RE-400*400 Hammer Crusher
-
Rotor speed (r/min):
-
1500
-
Feed opening size (mm):
-
145*295
-
Discharghing size (mm):
-
0-30
-
Capacity (t/h):
-
5-8
-
Motor power (kw):
-
7.5
-
Weight (t):
-
0.9
-
Size(mm):
-
844*942*878
-
Key words:
-
Stone crusher
-
Function:
-
Stone Crushing Plant
Quick Details
-
Application:
-
industries of mining, building materials
-
Capacity(t/h):
-
Mining,stone, ore, building material
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RE
-
Dimension(L*W*H):
-
844*942*878mm
-
Weight:
-
500 KG
-
Model:
-
RE-400*400 Hammer Crusher
-
Rotor speed (r/min):
-
1500
-
Feed opening size (mm):
-
145*295
-
Discharghing size (mm):
-
0-30
-
Capacity (t/h):
-
5-8
-
Motor power (kw):
-
7.5
-
Weight (t):
-
0.9
-
Size(mm):
-
844*942*878
-
Key words:
-
Stone crusher
-
Function:
-
Stone Crushing Plant
Small Stone Hammer Mill Crusher Multifunctional Stone Crushing Plant Diesel Engine Hammer Crusher
1 SET AS SAMPLE ORDER IS SUPPORTED ,PLEASE CONTACT COCO TO CHECK DETAILS +86177 1981 7301
| Working Principle of Hammer Crusher | ||||||||||
This series of hammer crushers is suitable for crushing various brittle materials such as coal, salt, chalk,
plaster stone, alumstone, brick, tile, limestone etc. Whose compressive resistance does not
exceed 150Mpa and the moisture content should not be greater than15%.
| Detail description of Hammer Crusher | ||||||||||
|
1. The structure is simple and compact, the noise is low, the efficiency is high. |
|
2. The installation is flexible, basically needs no foundation. |
|
3.The rollers' surface adopts anti-abrasive welding rod or exchangeable dental plate, the maintenance is simple. |
|
4.Self preservation ability is strong, the high hardness materials (such as all sorts of metal block) won't break the equipment's parts when they enter the shredding breach. |
|
5. The discharge gram size is adjustable, the minimum can reach 2-10 mm. |
| Technical Parameters of Hammer Crusher | ||||||||||
|
Model |
Rotor speed (r/min) |
Feed opening size (mm) |
Max feeding size (mm) |
Discharghing size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
Overall dimensions L×W×H (mm) |
|
RE400×400 |
1500 |
145×295 |
100 |
0-30 |
5-8 |
7.5 |
0.9 |
844×942×878 |
|
RE600×400 |
1000 |
295×450 |
100 |
0-35 |
10-12 |
18.5 |
1.5 |
1000×1000×1300 |
|
RE600×600 |
1000 |
295×570 |
100 |
0-35 |
12-18 |
45 |
2.14 |
1315×840×1501 |
|
RE800×600 |
1000 |
350×570 |
120 |
0-45 |
20-25 |
55 |
2.45 |
1515×2586×1040 |
|
RE800×800 |
1000 |
350×850 |
120 |
0-45 |
35-45 |
55 |
3.05 |
1515×2831×1040 |
|
RE1000×800 |
1000 |
580×580 |
200 |
0-45 |
25-40 |
110 |
6.5 |
3206×2210×1515 |
|
RE1000×1000 |
1000 |
580×1060 |
200 |
0-45 |
40-80 |
132 |
7.59 |
3514×2230×1515 |
|
RE1250×800 |
750 |
650×850 |
200 |
0-45 |
20-50 |
132 |
11.7 |
2630×1780×2050 |
|
RE1250×1250 |
750 |
650×1330 |
200 |
0-45 |
90-110 |
185 |
13.2 |
2630×2180×2050 |
|
RE1400×1400 |
750 |
1050×1540 |
250 |
0-45 |
120-170 |
280 |
17.2 |
2790×2800×2310 |
|
RE1600×1600 |
600 |
1500×1785 |
350 |
0-60 |
220-280 |
450 |
22.8 |
3350×3120×2660 |
| Pics of Sand Production Line | ||||||||||

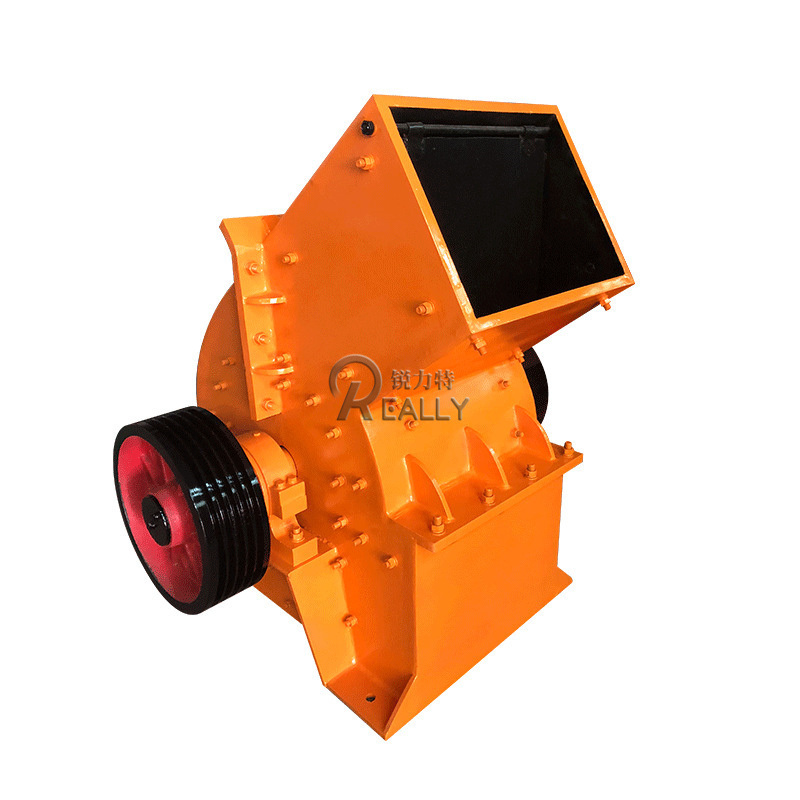

| Pics of Hammer Crusher | ||||||||||
