1,
With automatic tension monitor
2,Equipped with plug type and pneumatic locking device
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHOVYTING
-
Model Number:
-
CWZD-600C+FD
-
Voltage:
-
380/220V 50/60HZ
-
Dimension(L*W*H):
-
12300*1750*1800mm
-
Weight:
-
3900 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

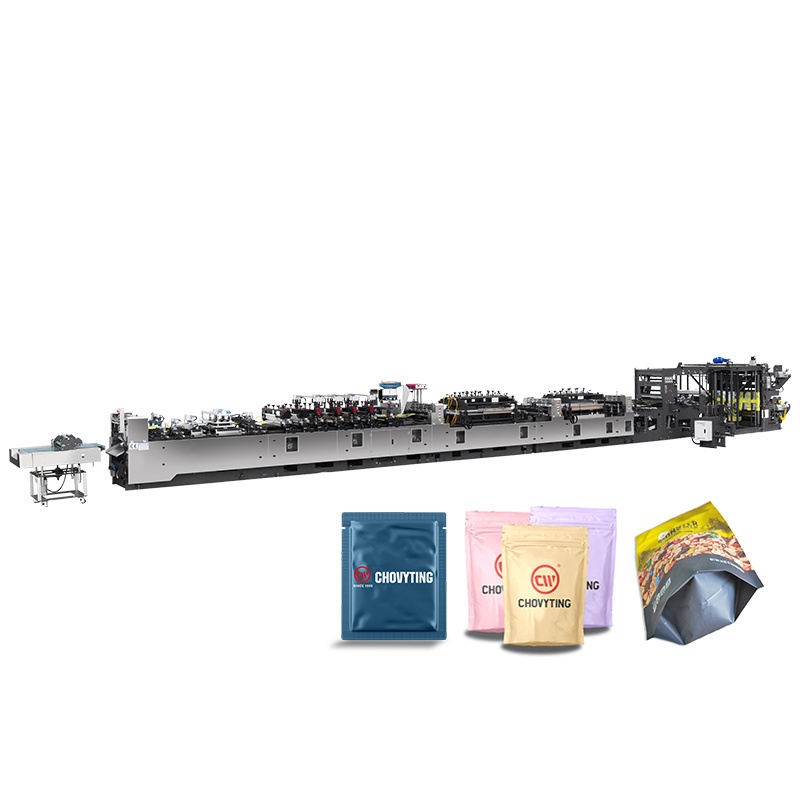

Three Sides sealing zipper pouch and stand up bag making machine
-
Servo motor:
-
Yaskawa Japan
-
Inverter:
-
Yaskawa Japan
-
PLC:
-
PANASONC JAPAN
-
Touch screen:
-
Taiwan
-
Photocell:
-
KONTEC Taiwan
-
Switch and button:
-
IDEC Japan
-
Cylinder:
-
SHAKO Taiwan
-
Speed:
-
40-150pcs/min
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
hree Sides sealing zipper pouch and stand up bag making machine
-
Material:
-
laminated bag
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHOVYTING
-
Model Number:
-
CWZD-600C+FD
-
Voltage:
-
380/220V 50/60HZ
-
Dimension(L*W*H):
-
12300*1750*1800mm
-
Weight:
-
3900 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Three Sides sealing zipper pouch and stand up bag making machine
-
Servo motor:
-
Yaskawa Japan
-
Inverter:
-
Yaskawa Japan
-
PLC:
-
PANASONC JAPAN
-
Touch screen:
-
Taiwan
-
Photocell:
-
KONTEC Taiwan
-
Switch and button:
-
IDEC Japan
-
Cylinder:
-
SHAKO Taiwan
-
Speed:
-
40-150pcs/min
Product Description
P roduct Application
Newly design for producing America laminated bag(
single sheet folded stand up pouch and zipper bag
),also can produce
pet food bag
popular from America.
Main Features
1) Folding ,punch,bottom gusset and sealing automatic design
2) Newly design feeding structure,high speed feeding no shake
3) Special design bottom gusset device,easily to operate
4) Double layers unwinding design,suitable for multi-function laminated bag
5) Newly design zipper and stand up device
6) Bottom gusset stand up continuous punch device
Optional
1.Air cylinder automatic loading device
2.Handle hole puncher
Technical Parameter
|
Model
|
CWZD-400C+FD
|
CWZD-500C+FD
|
CWZD-600C+FD
|
|
Width of unwinding
|
800mm
|
1000mm
|
1200mm
|
|
Pouch-making length
|
70-380mm*N(N≤6)
|
70-380mm*N(N≤6)
|
70-380mm*N(N≤6)
|
|
Pouch-making width
|
70-380mm
|
70-480mm
|
70-580mm
|
|
Speed
|
40-150pcs/min
|
40-150pcs/min
|
40-150pcs/min
|
|
Set film dragging speed
|
35m/min
|
35m/min
|
30m/min
|
|
Total power
|
38kw
|
43kw
|
48kw
|
|
Machine weight
|
3900kg
|
4100kg
|
4400kg
|
|
Overall dimension (LxWxH)
|
12300*1750*1800mm
|
12300*1950*1900mm
|
12300*2050*2000mm
|
Sample Bag
Detailed Images
Unwinding device
Third film inserted stand up device
This device is horizontal expected level with photoelectric tracking with centralized control of the host computer with the computer on pneumatic control.
Vertical sealing device
1,Vertical-sealing for zipper adopts 1 group for heating fluctuation.
2,Vertical-sealing for side sealing adopt 5groups for heating fluctuation,cooling fluctuation from up and down.Bottom sealing device
1, Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.
Control box
Main Parts
Certifications
Packing
About Us
CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.
Standard workshop
CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each
production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the
EU CE safety regulations.
The engineer team.
The sales team
CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after
sales that includes 5 person work in overseas all year round.
EXHIBITIONS
We participated in many exhibitions at home and abroad.
FAQ
Q1- Is your company a factory or a trading company?
A1- CHOVYTING is a factory
Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material ,etc. Are suitable for CHOVYTING machines
Q4- What is type machines do you have ?
A4 - special for all of plastic bag making machine, like shopping bag, diaper bag, courier bag, stand up zipper pouch ,rolling garbage bag, bread bag, chicken bag etc...
Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999
Q6- What is certificate of machine do you have
A6- CE, ISO 2016, And more than 100 piece Patent of machine
Q7- What about your company The development of your company
A7- CHOVYTING Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”
Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now,and also K show in German,NPE in America,Arabplast in Dubai,Plastic Eurasia in Turkey etc..
Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees
Q10-what is size of your factory
A10- CHOVYTING factory place have more than 10000 Square meters
