- Product Details
- {{item.text}}
Quick Details
-
Certification:
-
ROHS
-
Temperature:
-
-55°C to 125°C
-
Shrink ratio:
-
3:1
-
Waterproof:
-
100%
-
Model:
-
DC-SC
-
Material:
-
HDPE
-
Application:
-
Electrical equipment repairs
-
Minimum shrink temperature:
-
110°C
-
Product name:
-

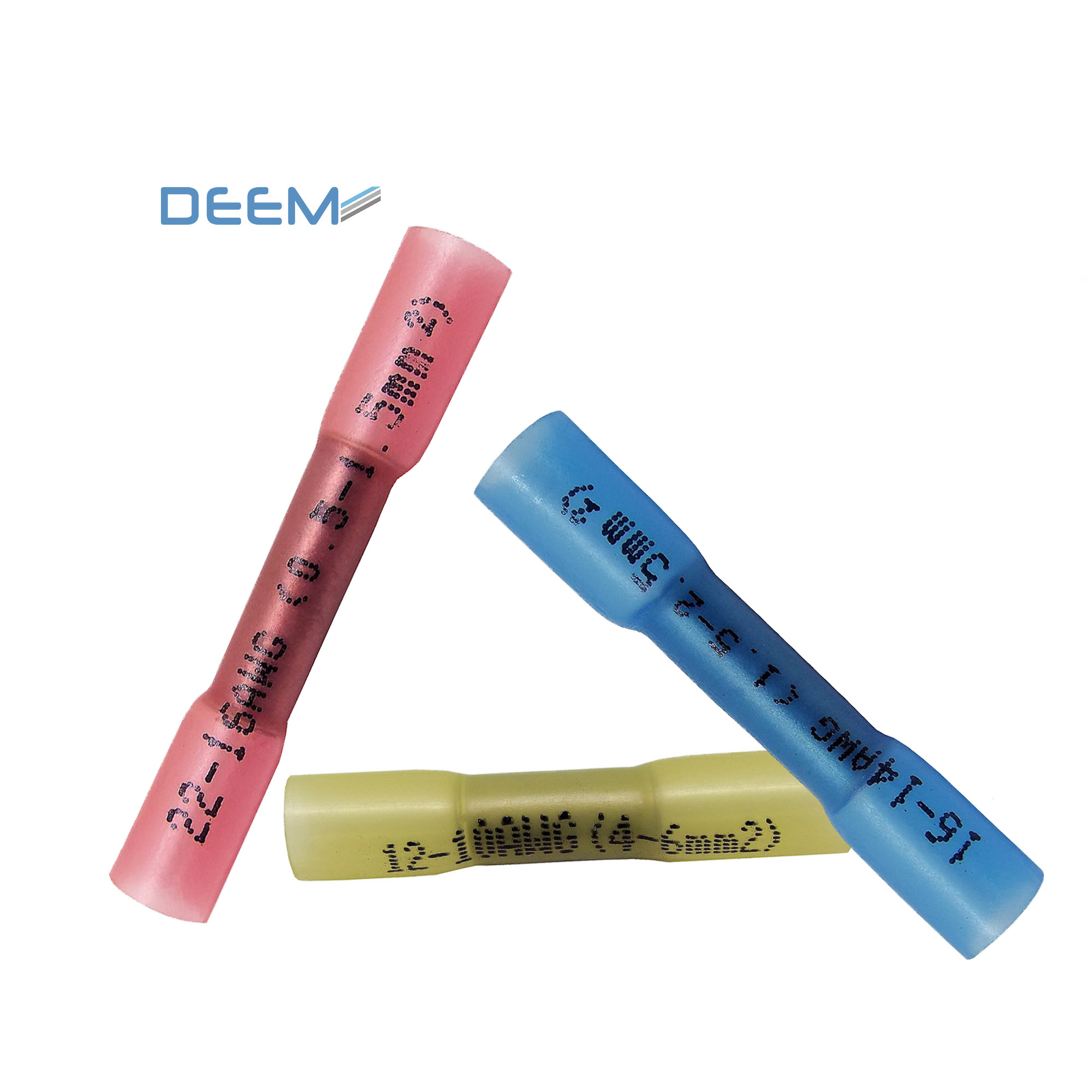

Heat shrink butt connector
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DEEM
-
Model Number:
-
DC-SC
-
Certification:
-
ROHS
-
Temperature:
-
-55°C to 125°C
-
Shrink ratio:
-
3:1
-
Waterproof:
-
100%
-
Model:
-
DC-SC
-
Material:
-
HDPE
-
Application:
-
Electrical equipment repairs
-
Minimum shrink temperature:
-
110°C
-
Product name:
-
Heat shrink butt connector
Technical Data
| Property | Test Method | Typical Data |
| Tensile Strength | ASTM D 2671 | 28MPA(min) |
| Elongation at back | ASTM D 2671 | 500%(min) |
| Longitudinal Shrinkage | UL 224 | 0 to -10% |
| Heat Shock | 250°C/4hrs | No cracking,Flowing of out wall |
| Heat resistance | 165°C/168hrs | No cracking,Flowing of out wall |
| Cold bend(-40°C/1hr) | ASTM D 2671 | No cracking |
| Voltage withstand(AC 2500V,60 sec.) | ASTM D 2671 | No Breakdown |
| Volume Resistivity | ASTM D 876 | 10 14 Ω.cm(min) |
| Copper corrosion | UL 224 | Pass |
| Water absorption | ASTM D570 | ≤0.5% |
| Fluid resistance(23°C/24hrs) | ASTM D 2671 | Good to excellent |
| Specific Gravity | ASTM D 792 | 1.01g/cm3 |
| Tensile Strength | ASTM D 2671 | 28MPA(min) |
Dimensions
| DC-SC | Wire range | As supplied(mm) | After recovery(mm) | |
| Inside diameter | Inside diameter | Cut length | ||
| Red | 0.5-1.5m 2 | 4.5 | 1.5 | 38 |
| Blue | 1.5-2.5m 2 | 5.5 | 1.8 | 38 |
| Yellow | 4-6mm 2 | 6.5 | 2.2 | 42 |
