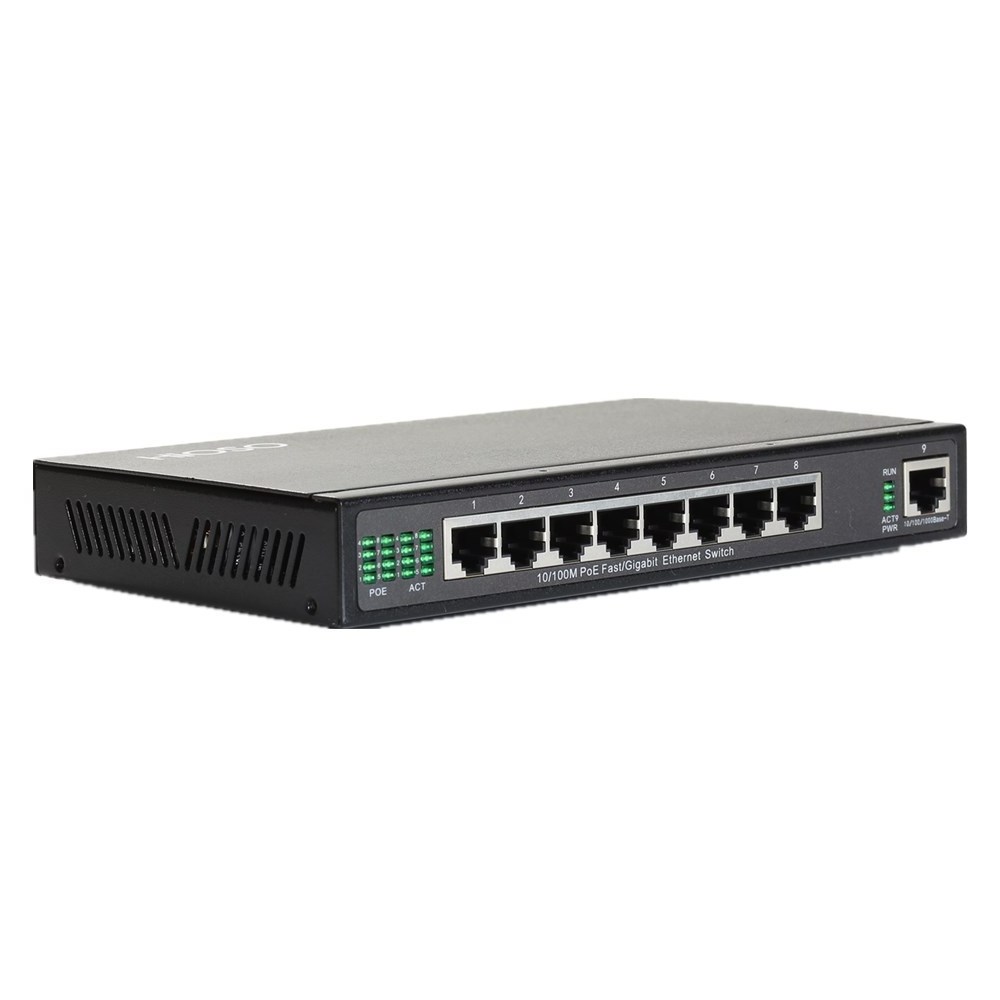

HiOSO Ethernet outdoor poe switch 8 port switch

HiOSO Ethernet outdoor poe switch 8 port switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $38

≥100 Pieces

US $34

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HiOSO

Item:: 8 port poe switch

Ports:: 8 10/100/1000M poe rj45 ports+1 10/100M rj45 uplink ports

Transmission rate:: 100Mbps

Function:: POE,Industrial

MAX output power:: 120W ( single port:15.4W)

Power supply:: AC110V/220V

POE Standard:: IEEE802.3AF/AT

Operating temperature:: -10~60 ℃

MAC address:: 8k

Dimension:: 30*219*119 mm (H*W*D)

Quick Details

Type:: FTTx Solutions

Model Number:: Foway2209P

Place of Origin:: Guangdong, China

Brand Name:: HiOSO

Item:: 8 port poe switch

Ports:: 8 10/100/1000M poe rj45 ports+1 10/100M rj45 uplink ports

Transmission rate:: 100Mbps

Function:: POE,Industrial

MAX output power:: 120W ( single port:15.4W)

Power supply:: AC110V/220V

POE Standard:: IEEE802.3AF/AT

Operating temperature:: -10~60 ℃

MAC address:: 8k

Dimension:: 30*219*119 mm (H*W*D)

Product Description

HiOSO Ethernet outdoor poe switch 8 port switch

Character

l Support 8 10/100M RJ45 PoE ports and 1 10/100M RJ45 uplink port

l Each PoE port supports auto detect the powered device

l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards

l Support each port full rate, full-duplex non-blocking forwarding

l Support WEB management and SNMP (optional)

l Support 2K MAC learning, 1Mbit cache space ,2G back plane bandwidth

l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

l Supply redundant dual power input ports, enhance reliability

l Metal casing with Wall mounting design , better for heat dissipating and installation

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3x Flow control , IEEE802.1q VLAN , IEEE802.1p QoS , IEEE802.1d Spanning Tree ,IEEE802.3af,IEEE802.3at
PoE	8 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device
Transmission distance	CAT5: 100M
Ports	8 10/100M RJ45 ports (PoE/PSE) : 10/100Mbs 1 10/100M RJ45 uplink port: 10/100Mbps
MAC	2K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC48V dual input redundant backup
Power consumption	Whole device: 5W POE/PSE: maximum240W
Working temperature	Common: -10~60 ℃ ; -T (wide temperature range): -40~75℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Installation	Wall mounting type
Dimension	30 mm (H)× 219 mm(W)×1 19 mm (D)
