Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINSTER
-
Product Name:
-
32 inches LCD DISPLAY screen PANEL
-
Display mode:
-
ORIGINAL NEW
-
Resolution:
-
1366(RGB)*768, WXGA 49PPI
-
Pixel Format:
-
RGB Vertical Stripe
-
Driver IC list:
-
Built-in COF 2 source chips
-
Application:
-
TV REPAIR AND REFURBISHMENT
-
Viewing Angle:
-
89/89/89/89 (Typ.)(CR≥10)
-
Active Area:
-
697.685(W)*392.256(H) mm
-
LCD Type:
-
a-Si TFT-LCD, CELL , FOB
-
STOCK:
-
YES
Quick Details
-
Type:
-
TFT
-
Display Size:
-
32 INCHES
-
Supplier Type:
-
DISTRIBUTOR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINSTER
-
Product Name:
-
32 inches LCD DISPLAY screen PANEL
-
Display mode:
-
ORIGINAL NEW
-
Resolution:
-
1366(RGB)*768, WXGA 49PPI
-
Pixel Format:
-
RGB Vertical Stripe
-
Driver IC list:
-
Built-in COF 2 source chips
-
Application:
-
TV REPAIR AND REFURBISHMENT
-
Viewing Angle:
-
89/89/89/89 (Typ.)(CR≥10)
-
Active Area:
-
697.685(W)*392.256(H) mm
-
LCD Type:
-
a-Si TFT-LCD, CELL , FOB
-
STOCK:
-
YES
Product Description

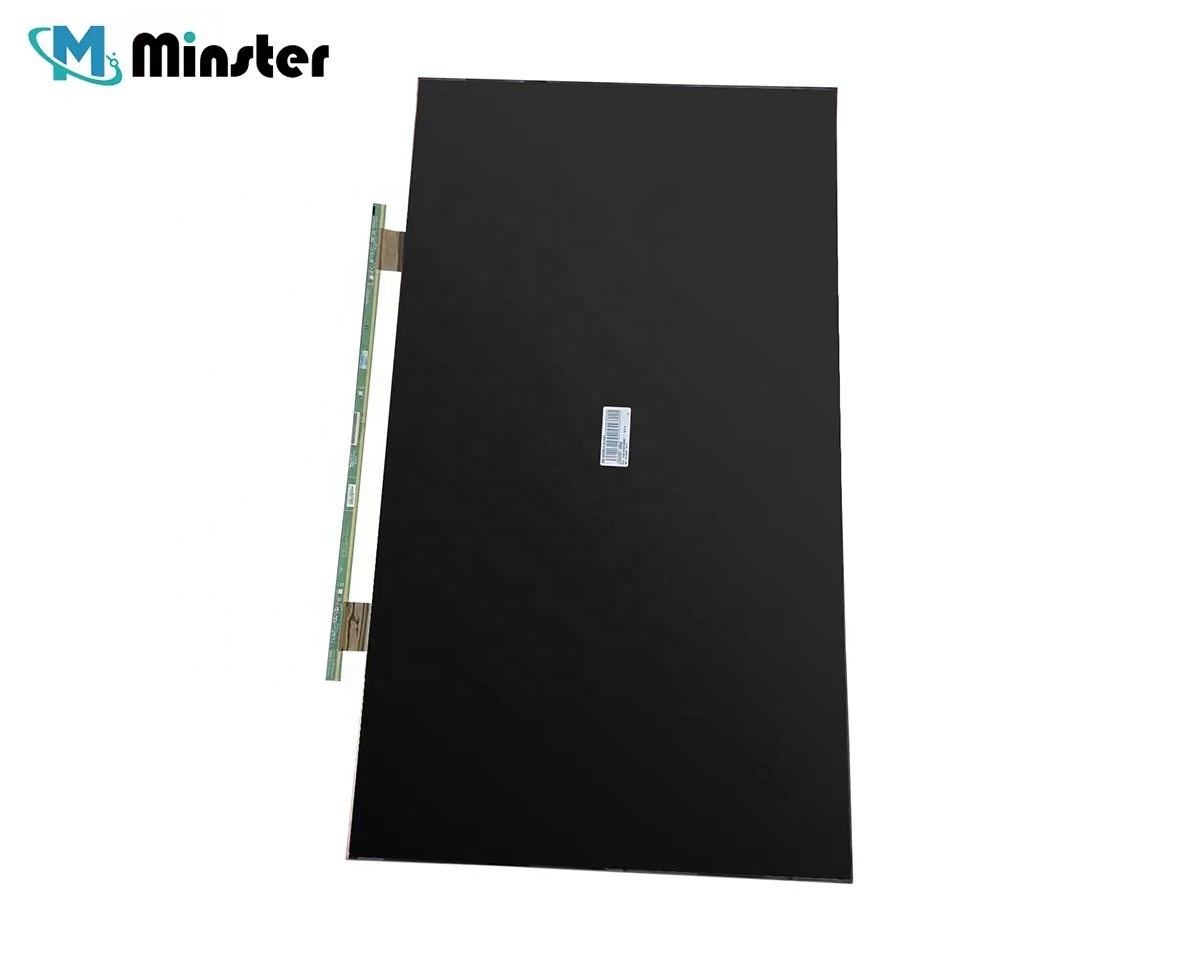

New Original Wholesale OPEN CELL TFT LED LCD TV Screen display Panel 32 INCH HV320WHB-F56
We are supplying A grade Original and New Open cell Lcd screen panel for TV broken glass panel replacement. Each panel glass will be tested before delivery to ensure the panel glass quality.
We have large TV glass panel open cell stock from 32 inches to 110 inches in HD, Full HD 2K and Ultra HD UHD 4K in different brands. All glass panels are original brand, new and A grade.
Minster is a reliable and trustworthy TV glass supplier. We insist Quality always comes first. we also provide good after-sales service for all our products.
Now HV320WHB-F56 is in stock. welcome to contact us.
We have large TV glass panel open cell stock from 32 inches to 110 inches in HD, Full HD 2K and Ultra HD UHD 4K in different brands. All glass panels are original brand, new and A grade.
Minster is a reliable and trustworthy TV glass supplier. We insist Quality always comes first. we also provide good after-sales service for all our products.
Now HV320WHB-F56 is in stock. welcome to contact us.
Welcome to contact us for latest prices and stock for our panels.
Specification
|
Model P/N
|
HV320WHB-F56
|
|
Diagonal Size
|
32 inches
|
|
Panel Type
|
a-Si TFT-LCD, CELL , FOB
|
|
Resolution
|
1366(RGB)×768, WXGA 49PPI
|
|
Pixel Format
|
RGB Vertical Stripe
|
|
Active Area
|
697.685(W)×392.256(H) mm
|
|
Outline Size
|
715(W)×411(H)×1.32(D) mm
|
|
Luminance
|
0 cd/m²
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
|
Good View at
|
Symmetry
|
|
Glass Thickness
|
0.50+0.50 mm
|
|
Color Depth
|
16.7M 72% NTSC
|
|
Mass
|
852g (Typ.)
|
|
Refresh Rate
|
60Hz
|
|
Driver IC list
|
Built-in COF 2 source chips
|
|
Signal Type
|
Mini LVDS , 60 pins Connector
|
|
Max. Ratings
|
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
|
Treatment
|
Antiglare (Haze 1%), Hard coating (2H)
|
|
Contrast Ratio
|
1200 : 1 (Typ.) (TM)
|
|
Response
|
8 (Typ.)(G to G) ms
|
|
Work Mode
|
ADS, Normally Black, Transmissive
|
|
Transmissivity
|
6.2% (Typ.)(with Polarizer)
|
|
Backlight
|
No B/L
|
|
Used for
|
TV Repair
|
|
Touchscreen
|
Without
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q&A about Minster Technology and LCD Screen Panel
1. Is Minster Technology a factory of lcd screen panels?
No, we are distributor of open cell lcd screen glass panel. Open cell production needs high technology and big investment.
2. How do you ensure the quality for the lcd screen panels?
All our panels are original and new. We do not sell old panels. Good supply chain ensures the quality for our panels. Each
panel will be tested before delivering. We also have good after-sales service to make sure our customers are satisfied with
our screen panels.
2. How is the warranty for lcd screen panels?
We do not provide warranty for the panels. Please check and test the panels as received and report the situation to us. If
panel
has any problem, we will compensate and send out with your next order.
4.Is the price on Alibaba real?
As you know, panel price and stock change even daily. Please contact us for latest prices and stock.
5.Where is your warehouse?
We have warehouse in Guangzhou and Hongkong.
6. Will the panels be broken during transportation?
It rarely happens. All panels will be put in hard high density foam boxes with foam layers and packed inside wooden boxes.
7. How is your payment method?
We are Alibaba trade assurance user. You can order on Alibaba directly and also you can choose to pay our USD bank account.
West Union is also accepted.
1. Is Minster Technology a factory of lcd screen panels?
No, we are distributor of open cell lcd screen glass panel. Open cell production needs high technology and big investment.
2. How do you ensure the quality for the lcd screen panels?
All our panels are original and new. We do not sell old panels. Good supply chain ensures the quality for our panels. Each
panel will be tested before delivering. We also have good after-sales service to make sure our customers are satisfied with
our screen panels.
2. How is the warranty for lcd screen panels?
We do not provide warranty for the panels. Please check and test the panels as received and report the situation to us. If
panel
has any problem, we will compensate and send out with your next order.
4.Is the price on Alibaba real?
As you know, panel price and stock change even daily. Please contact us for latest prices and stock.
5.Where is your warehouse?
We have warehouse in Guangzhou and Hongkong.
6. Will the panels be broken during transportation?
It rarely happens. All panels will be put in hard high density foam boxes with foam layers and packed inside wooden boxes.
7. How is your payment method?
We are Alibaba trade assurance user. You can order on Alibaba directly and also you can choose to pay our USD bank account.
West Union is also accepted.
