Quick Details
-
Production Capacity:
-
9-12m/min
-
Power:
-
22HP
-
Place of Origin:
-
China
-
Brand Name:
-
HONORSUN
-
Dimension(L*W*H):
-
2610x1970x1500mm
-
Warranty:
-
12 Months
-
Name:
-
curb paver
-
Key words:
-
Concrete Paver Curb Machine
Quick Details
-
Max. Paving Thickness:
-
300mm
-
Weight:
-
1260 kg
-
Engine Brand:
-
YUNNEI
-
Production Capacity:
-
9-12m/min
-
Power:
-
22HP
-
Place of Origin:
-
China
-
Brand Name:
-
HONORSUN
-
Dimension(L*W*H):
-
2610x1970x1500mm
-
Warranty:
-
12 Months
-
Name:
-
curb paver
-
Key words:
-
Concrete Paver Curb Machine

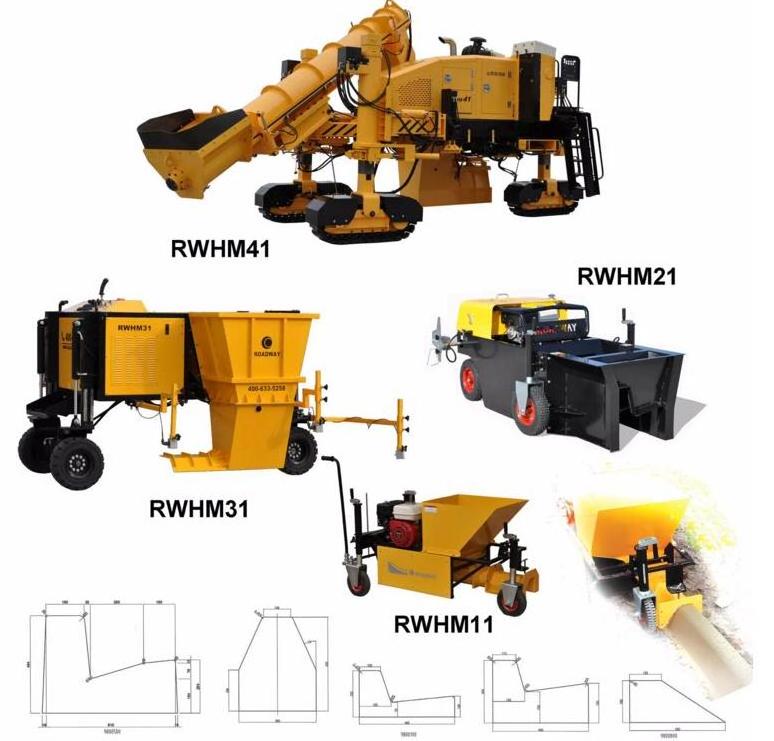

Automatic Curb Paver Machine
1. With HONDA gasoline engine or YANMAR diesel engine
2. With imported Danfoss hydraulic variable plunger pump
3. Integrated micro computer control panel, easy operation
4. Forward, Reverse and Steering all controlled by control lever, easy operation
5. With hydraulic rod, high frequency and strong power
6. With high sensitivity tilt sensor, to control direction
7. With imported U.S.A Eaton driving motor
8. With hydraulic high pressure washing pump, can clean machine any time
9. With imported Germany DEUTSCH connectors, waterproof and dustproof
|
Type |
RWHM31 |
RWHM31C |
|
|
Engine |
|
||
|
Model |
HONDA GX630 |
YANMAR |
|
|
Type |
Gasoline Engine, air cooled, two cylinder |
Diesel Engine, liquid cooled, three cylinder |
|
|
Power |
20hp/3600rpm |
20hp/3000rpm |
|
|
Fuel tank volume |
60L |
60L |
|
|
Lubricant L |
1.5L |
2.2L |
|
|
Fuel consumption |
313g/kWh |
281g/kWh |
|
|
Traveling system |
|
||
|
Driving |
Hydraulic motor |
||
|
Wheel |
Solid puncture-proof tyre |
||
|
Speed |
0-70m/min |
||
|
Vibration system |
|
||
|
Vibrating rod |
Hydraulic vibrating rod |
||
|
Nominal amplitude |
1.5mm |
||
|
Vibrating frequency |
Adjustable |
||
|
Exciting force |
11kN(under 10000rpm) |
||
|
Control system |
|
||
|
Control mode |
Auto/Manual |
||
|
Automatic control |
Steering, Transverse slope and Longitudinal slope by high accuracy sensor |
||
|
Clean system |
|
||
|
Power |
Hydraulic motor |
||
|
Theoretical flow |
20L/min |
||
|
Theoretical pressure |
7Mpa |
||
|
Working |
|
||
|
Speed |
0-15m/min |
||
|
Mold size |
Width 100cm*Height 60cm |
||
|
Dimension |
|
||
|
Overall dimension |
2610x1970x1500mm |
||
|
Weight |
|
||
|
Weight |
1200kg |
1260kg |
|
