Quick Details
-
Model Number:
-
DTI-VFM
-
Accuracy:
-
±1%R,±1.5%R
-
output signal:
-
4~20mA,high level≥5V, low level≤1V
-
Medium:
-
gas,liquid,vapor
-
Fluid temperature:
-
-40℃~+250℃,-40℃~+320℃
-
Range degree:
-
1:10~1:20
-
Nominal meter size:
-
15,20,25,32,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in)
Quick Details
-
Type:
-
Variable Area Air & Gas Flowmeters
-
Place of Origin:
-
Liaoning, China, Liaoning, China (Mainland)
-
Brand Name:
-
DLTEREN
-
Model Number:
-
DTI-VFM
-
Accuracy:
-
±1%R,±1.5%R
-
output signal:
-
4~20mA,high level≥5V, low level≤1V
-
Medium:
-
gas,liquid,vapor
-
Fluid temperature:
-
-40℃~+250℃,-40℃~+320℃
-
Range degree:
-
1:10~1:20
-
Nominal meter size:
-
15,20,25,32,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in)

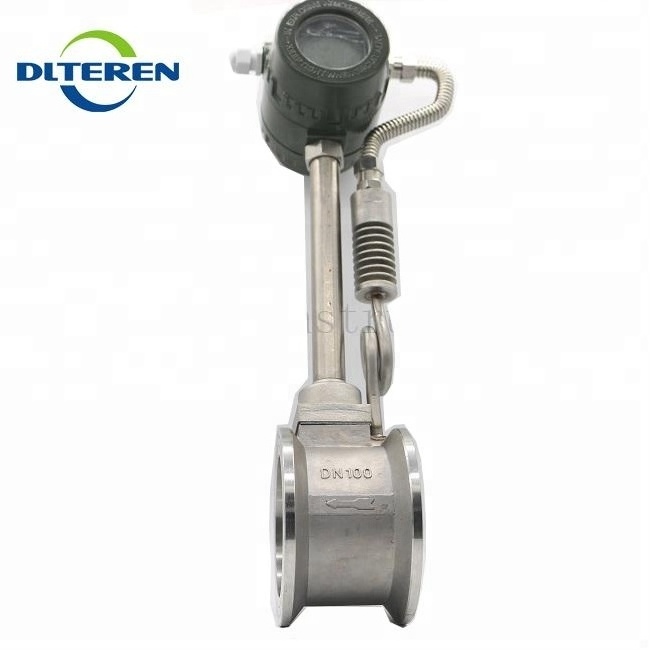

DLTEREN Cheap Flowmeter RS485 Vortex Air Flow Sensor Steam Flow Transmitter Gas LPG flow meter
Product Description
| Implementation standard | vortex flowmeter (JJG1029-2007). |
| Nominal pressure | 1.6Mpa,2.5Mpa,4.0Mpa(other customizable). |
| Precision grade | Gas±1.5%,steam±1%,liquid±1%,Insert±1.5%. |
| Range ratio | 1:10,1:15,1:20. |
| Signal output function | pulse signal, 4 ~ 20mA signal. |
| Communication output function | RS485 communication output,Modbus,HART protocol,etc. |
| Connection | flange card mounted, flange type, insert type. |
| Explosion proof grade | intrinsically safe ExiaIIbT3-T6. |
