Quick Details
-
Brand Name:
-
Ojos
-
Model Number:
-
OVM9734
-
Network:
-
USB
-
Video Compression Format:
-
Mjpg
-
Application:
-
medical endoscope
-
Product name:
-

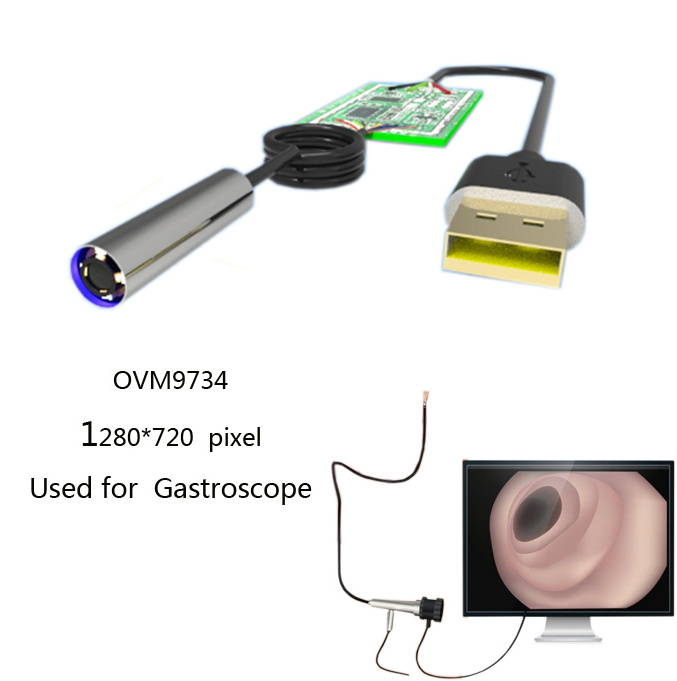

Micro tiny 1280*720 endoscope camera module
-
Sensor:
-
Omnivision 9734
-
Forcal length:
-
5-100 mm
-
Diagonal FOV:
-
120 degree
-
Cmos size:
-
2P 1/18'
-
Interface type:
-
USB
-
Min diameter:
-
1.05*1.05 mm
-
Max frame:
-
30 FPS
-
Compatible system:
-
Linux , windows , PC
Quick Details
-
Function:
-
Waterproof / Weatherproof
-
Data Storage Options:
-
Full HD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ojos
-
Model Number:
-
OVM9734
-
Network:
-
USB
-
Video Compression Format:
-
Mjpg
-
Application:
-
medical endoscope
-
Product name:
-
Micro tiny 1280*720 endoscope camera module
-
Sensor:
-
Omnivision 9734
-
Forcal length:
-
5-100 mm
-
Diagonal FOV:
-
120 degree
-
Cmos size:
-
2P 1/18'
-
Interface type:
-
USB
-
Min diameter:
-
1.05*1.05 mm
-
Max frame:
-
30 FPS
-
Compatible system:
-
Linux , windows , PC
Optical Spec
| Coms size | 2P 1/9" |
| Pixel size | 1.4um*1.4um |
| Fno | 4.5 |
| Diagonal Fov | 120 degree |
| TV-distortion | <12% |
| Relative illumiance | 64% |
| Chief ray angle | <32% |
| Maximum image circle | 2.1 mm |
| Depth of filed | 5-100 mm |
Electric spec
| Sensor | 1/19" 1280*720 |
| Max frame rate | VGA 360fps |
| Interface | USB 2.0 |
| USB output solution | MJPG 1280*720 |
| White balance auto mode | Auto mode |
| Operating temperature | -10 ~+50 degree |
| Steel tube temperature | </= 41 degree |
| Min diameter | 3.9 MM |
| Maximum length | 8 M |
More details for endoscope camera module
