Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Name:
-

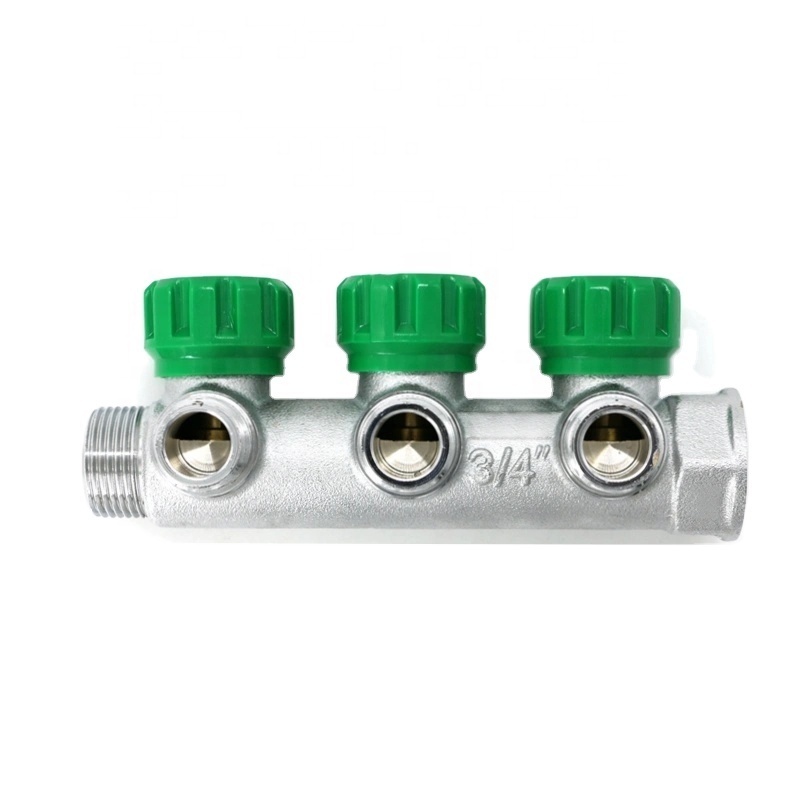

High Quality Forged Brass Exhaust Manifold with Ni
-
Surface:
-
Sand Blast&Nickel Plated
-
Pressure:
-
16 Bar
-
Working Temperature:
-
-10 Degree to 110 Degree
-
Thread Standard:
-
ISO 228
-
Size:
-
3/4"-1''
-
Key Words:
-
Brass Manifold Valve Factory
-
Usage:
-
Industrial and Household
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Return and Replacement
-
Project Solution Capability:
-
3D model design
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Name:
-
High Quality Forged Brass Exhaust Manifold with Ni
-
Surface:
-
Sand Blast&Nickel Plated
-
Pressure:
-
16 Bar
-
Working Temperature:
-
-10 Degree to 110 Degree
-
Thread Standard:
-
ISO 228
-
Size:
-
3/4"-1''
-
Key Words:
-
Brass Manifold Valve Factory
-
Usage:
-
Industrial and Household
Product features and application
• Material: forged H57-3 copper main bar
• Type: manual control manifold with long/short flow meter
• Main pipe thickness: 2.5-2.8mm
• Branch: 2-5 ways
• Maximum working pressure: PN16
• Medium temperature: 0ºC~100ºC
• Medium: water (Max. Percentage of glycol is 30%)
• Connection end: Female threaded comply with ISO228(BS2779); alternative connection end: Male threaded
• Connection: 1", 1-1/4"
• Installation: bracket or baffle
• Outlet selection: 3/4"*18 (16*2.0mm, 20*2.0mm)
• Surface color
• Fields of application: water, gas, heating system
• Certificate: CE SGS ISO9001
Demensions
| Spec. | L(mm) | H(mm) | Branch diameter |
| 1 " x 2 | 175 | 395 | 1216/1620 |
| 1 " x 3 | 225 | 395 | 1216/1620 |
| 1 " x 4 | 275 | 395 | 1216/1620 |
| 1 " x 5 | 325 | 395 | 1216/1620 |
| 1 " x 6 | 375 | 395 | 1216/1620 |
| 1 " x 7 | 425 | 395 | 1216/1620 |
| 1 " x 8 | 475 | 395 | 1216/1620 |
| NO. | Part Name | Material |
| 1 | Main bar | Chrome plated Brass |
| 2 | Water outlet | Brass |
| 3 | Seal Material | PTEE |
| 4 | Bracket | Nickel plated brass |
| 5 | O-ring | EPDM |
Production Introduction
The manifold is designed for low-temperature hot water radiant panel heating systems.
The supply distribution manifold can be equipped with built-in balancing valves, and the return distribution manifold can be equipped with built-in shut-off valves suitable for electro-thermal actuator which is controlled by room thermostat to meet your individual requirement for comfortable room temperature.
Our factory
Certificate
FAQ:
Q1: Can I have a sample before placing the order?
A: Yes, we would like to provide you samples for testing and checking before quantity purchasing
Q2: What is your MOQ order?
A: Usually 3000 for ordinary products, and 5000pcs for product needs new mold.
Q3.How to proceed an order for your products?
A: Firstly, pls let us know your requirments and application
Seconly, we provide quotation accordingly or suggestion
Thirdly, samples confirmation
Forth, place order and deposit and production arrangement.
