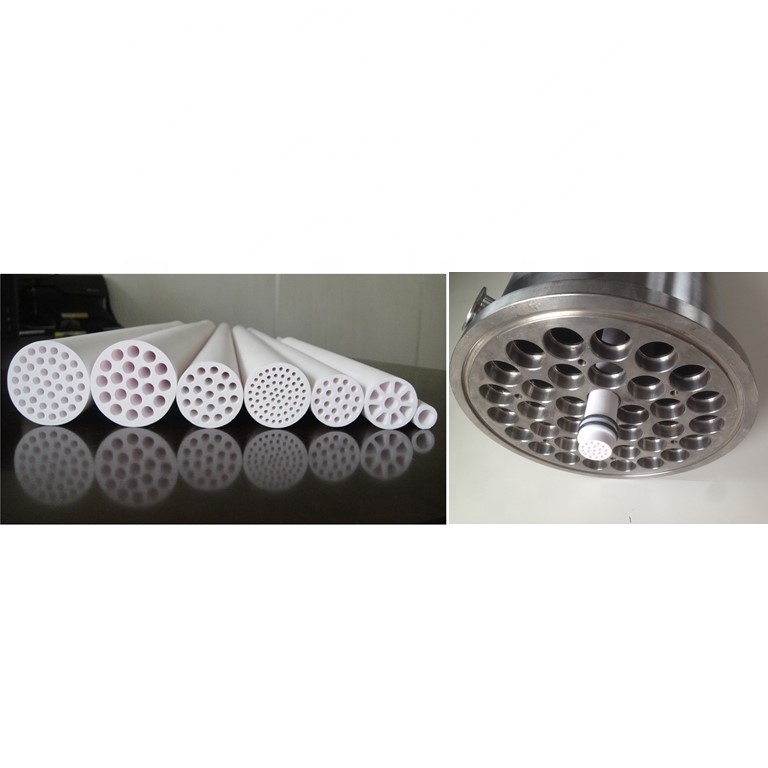

SS stainless steel housing for ultrafiltration and microfiltration ceramic membrane filter

1:System Components:

Membrane module(membrane,ss housing),feed tank,centrifugal pump,flow/pressure /temperature meter,electric control panel,valves and pipes;

Type of module(number of membranes/housing) : 1,3,7,12,19,37,61,91 ,138,241

Length of membrane:                   250-1200mm

Outer diameter of membrane:            12/25/30/40/52/60mm

Material of body: SS304,SS316L,Titanium,FRPP,MSRL;

Material of seals: EPDM;Fluoro R ubber;Silicon;

2: Filtration mode: cross flow filtration;

3:Properties of ceramic membrane:

4:Specification of membranes:

5 : Ceramic Membrane Compar ed with traditional filtration system

Compared with such tradition filter like frame filter,press filter , c entrifug al filter , DE Filter

and polymeric membrane filter , c eramic m embrane has many unique advantages.

1).Excellent resistance to acid, alkaline and oxidation chemicals.

2).Good solvent stability, high thermal stability.

3).Fine separability with narrow pore size distribution.

4).Extremely long working life compared with polymeric membrane.

5).Easy to be cleaned and sanitized with back flushing.

6).High mechanical strength,good abrasive resistance.

6 :Applications:

Filtration,clarification,purification and concentration.

(especially for filtration of food and beverage industries,chem i cal and petrochemical industries, biochemical a nd pharmaceutical industries.)

7:Typical Applications:

1) Biochemical and Pharmaceutical Industries:

Clarification and purification of the fermentation products as well as purification or separation of product slurries;

2) Environmental applications:

water and waster water treatment, oily water separation;

3) Food and beverage Industry:

Milk microfiltration,yogurt concentration,vegetable oil clarification,protein

concentration,and separation of soya bean protein;

wine clarification,beer clarification,fruit juice clarification;

4) Highly useful for various filtration applications in the Petro-Chemical Industry;

5) Other fields: Reclamation of nano powders, filtration of acid/alkali containing

liquids.

Zibo Dongqiang Ceramic Filter Co.,Ltd. is a specialized manufacturer of inorganic ceramic membrane and polymeric membrane and equipment and solution provider of membrane filtration,separation,concentration and extraction technology.

We have a R&D center,6 ceramic membrane production line,2 polymeric membrane production line,1 housing fabricating workshop,1 equipment assembly and fabricating workshop.

With the above production capacity and expertized staff,our business ranges from MF,UF,NF,RO membrane and euqipment manufacturing to the complete process development,engineering design,system integration,assembly and commissioning.

We supply our customers with:

1:Membrane module:

C eramic membrane,polymeric membrane and housing.

2:Membrane equipment:

L ab scale pilot,Middle scale pilot,and industrial scale equipment.

3:Membrane technology solution:

Water treatment,Environmental protection,Food and beverage,

Biochemical,Pharmaceutical,Oil field industries.

4:Membrane technology and service.

*For more detailed information,pls contact us.
