- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HDPE pipe
-
Specification:
-
16mm-1200mm
-
Length:
-
5.8m,11.8m or as Requested
-
Thickness:
-
2.3mm-57.2mm
-
Standard:
-
GB/T9001-2000
-
Color:
-
Black with Blue Streak
-
Pressure Rate:
-
1.6MPa, 1.25MPa, 1.0MPa, 0.8MPa, 0.6MPa
-
suitable degree celcius:
-
0℃-80℃
-
pure materia:
-
High density polyethylene
-
Type:
-
Straight HDPE pipe for water supply
-
Packing:
-
Plastic package for coils
-
Certification:
-
ISO9001:2000
-
Application:
-
For water supply,Irrigation,Drainage,Dredging....
-
Connection method:
-
Socket fusion/ butt welding/Electricfusion
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
SOLID
-
Model Number:
-
HDPE pipe
-
Specification:
-
16mm-1200mm
-
Length:
-
5.8m,11.8m or as Requested
-
Thickness:
-
2.3mm-57.2mm
-
Standard:
-
GB/T9001-2000
-
Color:
-
Black with Blue Streak
-
Pressure Rate:
-
1.6MPa, 1.25MPa, 1.0MPa, 0.8MPa, 0.6MPa
-
suitable degree celcius:
-
0℃-80℃
-
pure materia:
-
High density polyethylene
-
Type:
-
Straight HDPE pipe for water supply
-
Packing:
-
Plastic package for coils
-
Certification:
-
ISO9001:2000
-
Application:
-
For water supply,Irrigation,Drainage,Dredging....
-
Connection method:
-
Socket fusion/ butt welding/Electricfusion

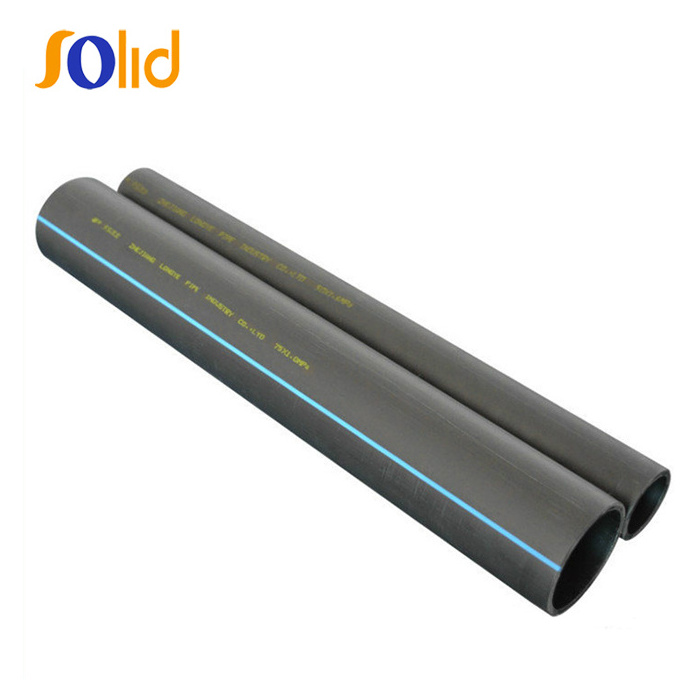

20-1200mm Pn5-20/SDR9-33 Manufacturer Large Diameter HDPE Pipe
Why choose us
Product Description
HDPE water supply pipe use PE110 or PE80 as raw materials, processing good flexibility, corrosion resistance, excellent impact resistance and other characteristics, pipe and fittings can be employed melt socket connection, Butt and fused connection,to insure the pipe system safety and reliability as well as low construction cost.
1) Material:PE100/PE80
1) Material:PE100/PE80
2) Standard:GB/T9001-2000
3) Certification:ISO9001:2008
3) Certification:ISO9001:2008
4) Package:Nuded packing
5) Connection:Butt fusion,socket joint ,electric connect
6) Color:black with blue stripe or customized
7) Pressure rating:1.6Mpa,1.25Mpa,1.0Mpa,0.8Mpa,0.6Mpa
5) Connection:Butt fusion,socket joint ,electric connect
6) Color:black with blue stripe or customized
7) Pressure rating:1.6Mpa,1.25Mpa,1.0Mpa,0.8Mpa,0.6Mpa
| Product Name | HDPE Water Supply Pipe and Fitting |
| Specification | DN20 - DN1400mm |
| Pressure | PN 0.6Mpa - PN 2.0Mpa |
| Raw Material | PE80 PE100 |
| Features |
· Environmental protection: Non-toxic any toxic additives.
· Safety and Hygiene: widely apply in the drink water supply. · Excellent Durability: Over 50 years · Chemical Corrosion resistance, impact resistance, high wear resistance. · The brittle Temperature:-60ºC · Cost Saving with high-efficiency: Lightweight. Simple connection, simple maintenance. |
| Standards |
GB/T 19001-2016,GB/T 13663-2018,GB/T 24001-2016,EN 1220-1:2011 EN
12201-2:2011+A1:2013,EN1555-1:2010,EN1555-2:2010, EN ISO 1452-1:2009,EN ISO 1452-22009,EN ISO 1452-3:2010 |
| Application |
Urban drink water supply
Agricultural irrigation. Sewage discharge. Landscape garden water supply Electrical Cable threading. |
| Connection | Welding |
| Color | Black or Customized |
Product Features
1) Non-toxic,No Leakage.
2) Smooth Surface
3) Excellent Flexibility
4) Easy Installation and Lower costs
1) Non-toxic,No Leakage.
2) Smooth Surface
3) Excellent Flexibility
4) Easy Installation and Lower costs
5) Hygienic Safety
6) Corrosion resistant
7) Recycle and environment-friendly
