Quick Details
-
Usage:
-
Wood Cutting, Wood Cutting
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
6.4mX1mX1.5m,
-
Application:
-
wood cutting
-
Weight (KG):
-
1200 KG
-
Core Components:
-
/
-
Name:
-
Automic Cut off Saw
-
Blade diameter:
-
450mm
-
Feeding speed:
-
5-30m/min
-
Certification:
-
CE ISO
-
Feeding method:
-
Servo drive
-
Web:
-
www.hicasmach.com
-
Weight:
-
1200kg
-
Power(W):
-
8.25kw
Quick Details
-
Type:
-
Cross Cut Off Saw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Saifan
-
Usage:
-
Wood Cutting, Wood Cutting
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
6.4mX1mX1.5m,
-
Application:
-
wood cutting
-
Weight (KG):
-
1200 KG
-
Core Components:
-
/
-
Name:
-
Automic Cut off Saw
-
Blade diameter:
-
450mm
-
Feeding speed:
-
5-30m/min
-
Certification:
-
CE ISO
-
Feeding method:
-
Servo drive
-
Web:
-
www.hicasmach.com
-
Weight:
-
1200kg
-
Power(W):
-
8.25kw
Product Description
Feature

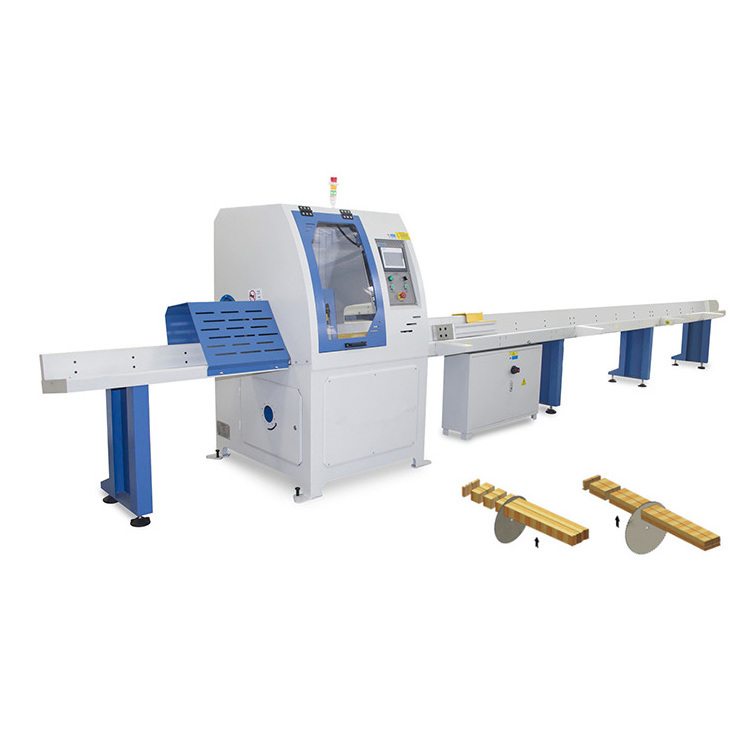

This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.
Advantages
Easy to operate, high efficiency, safty for worker
This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.
Advantages
Easy to operate, high efficiency, safty for worker
|
Model
|
SF606
|
SF6061
|
|
|
Cutting length
|
Max. 2m/ 4m/ 6m
|
|
|
|
Cutting height
|
10-120mm
|
10-140mm
|
|
|
Cutting width
|
30- 200mm
|
30-300mm
|
|
|
Cutting section
|
Max. 120*150mm/100*200mm
|
Max.140*140mm/140*300mm
|
|
|
Feeding speed
|
5-30m/min
|
|
|
|
Cutting speed
|
40pcs/min
|
45pcs/min
|
|
|
Blade diameter
|
450mm*30mm
|
600mm*30mm
|
|
|
Cutter spindle rotation speed
|
3000rpm
|
3150rpm
|
|
|
Servo drive motor power
|
0.75kw
|
1kw
|
|
|
Cutting motor power
|
7,5kw/11HP
|
11kw/15HP
|
|
|
Total power
|
8.5kw
|
12.5kw
|
|
|
Pressing method
|
Cylinder, air pressure 0.5-0.7Mpa
|
|
|
|
Cutting tolerance
|
In +/-1mm
|
|
|
|
Machine working dimension
|
L*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m
|
|
|
|
Dust collection port
|
Dia. 100mm*2pc
|
|
|
|
Electrical components
|
Schneider
|
|
|
|
PLC Touching screen
|
Siemens
|
|
|
|
Voltage
|
380v, 3 phase, 50Hz Can customize (extra cost $200)
|
|
|
Detailed Images
Machine Body
Tidy and neat wire in control cabinet,it looks beautiful and comfortable,safe and reliable.
Working Platform
Tilt the angle of the table,so that wood close to the machine,to ensure the accuracy of cutting size.
Dust Collection Port
2 pcs 100mm diameter dust collection port,strong ability to output the dust,It will strengthen the lift of the machine.
Electrical Components
Schneider electrical components,high quality and high level.
Packing&Shipping
1) The whole machine is disassembly into four parts.
2) Machine packed with wrapping film and fixed by plastic belt.
3) Packing the machine in 2 plywood boxes.
2) Machine packed with wrapping film and fixed by plastic belt.
3) Packing the machine in 2 plywood boxes.
Company Introduction
1) Founded in 2003.
2) Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine, wood crate machine, nailless plywood box.
3) Owns 70% Market Share(Nailless plywood box machine) in China.
4) Expertized in R&D, Manufacturing, Marketing, Training, and Service.
5) Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6) Supply Technical Solution base on Cost Analysis and Optimal Allocation.
2) Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine, wood crate machine, nailless plywood box.
3) Owns 70% Market Share(Nailless plywood box machine) in China.
4) Expertized in R&D, Manufacturing, Marketing, Training, and Service.
5) Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6) Supply Technical Solution base on Cost Analysis and Optimal Allocation.
