Quick Details
-
Dimension(L*W*H):
-
3200*1700*2400 mm
-
Weight (KG):
-
2600
-
Application:
-
Crush Wood Logs Making Sawdust
-
Keywords:
-
High Output Mobile Wood Crusher
-
Final product:
-
1-10mm Sawdust
-
Capacity:
-
1-3t/h
-
Type:
-
Blade Cruhser
-
Suitable for:
-
Biomass Pellet Plant
-
Suitable material:
-
Tree Wood Branch Corn Cob
-
Engine:
-
Diesel Engine Motor
-
Packing:
-
Wooden Case
-
Name:
-
Mini Diesel Wood Sawdust Crushing Machine Waste Wood Crusher Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Power:
-
75 KW
-
Dimension(L*W*H):
-
3200*1700*2400 mm
-
Weight (KG):
-
2600
-
Application:
-
Crush Wood Logs Making Sawdust
-
Keywords:
-
High Output Mobile Wood Crusher
-
Final product:
-
1-10mm Sawdust
-
Capacity:
-
1-3t/h
-
Type:
-
Blade Cruhser
-
Suitable for:
-
Biomass Pellet Plant
-
Suitable material:
-
Tree Wood Branch Corn Cob
-
Engine:
-
Diesel Engine Motor
-
Packing:
-
Wooden Case
-
Name:
-
Mini Diesel Wood Sawdust Crushing Machine Waste Wood Crusher Machine
Product Description

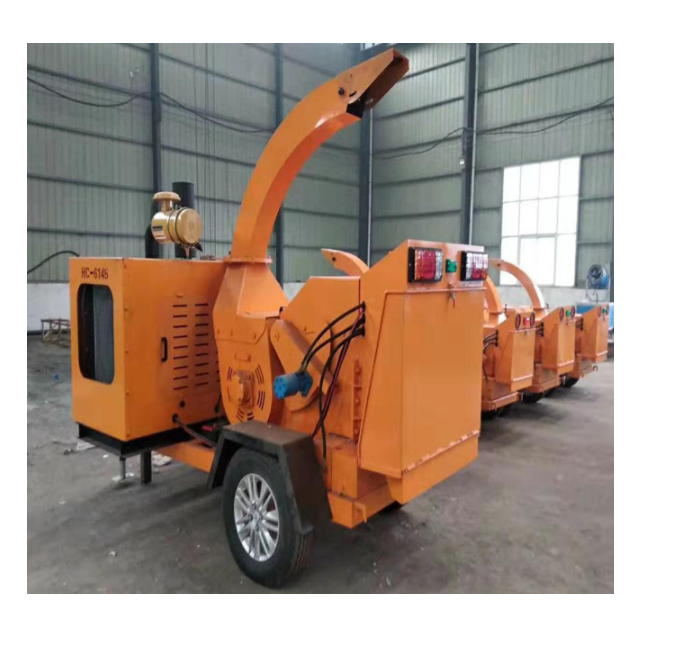

The newly developed and produced garden wood branch shredder is suitable for gardens, orchards, forestry, highway tree maintenance, parks, golf courses and other departments.
The equipment is simple to operate, one-time molding, after crushing, it can be used as mulch, garden bed base, organic fertilizer, edible fungus, biomass power generation, and can also be used for the production of high density board, particle board, paper industry, etc.
After crushing, it can be directly sprayed into the transportation vehicle, and the volume can be reduced by 80%-90% after crushing, which not only reduces the transportation cost, but also saves manpower, material resources, energy saving and emission reduction. The garden-specific branch crusher produced by our company can be driven by a diesel engine, and is equipped with tires, platforms, and traction devices. It is flexible and can crush branches anytime and anywhere. It is very convenient for field operations or roadside work.
Specification
|
Model
|
YG-6130
|
YG-6145
|
|
Production Capacity
|
2 tons/hour
|
5 tons/hour
|
|
Power
|
23.6 KW
|
75 KW(102 HP)
|
|
Maximum diameter of wood branches
|
130 mm
|
250 mm
|
|
Cutter roller disc diameter
|
300 mm
|
500 mm
|
|
Speed
|
2600 r/min
|
2500 r/min
|
|
Number of blades
|
4 moving blades, 1 stationary blade
|
4 moving blades, 1 stationary blade
|
|
Blade length
|
155 mm
|
230 mm
|
|
Feed roller diameter
|
280 mm
|
500 mm
|
|
Overall dimension
|
2300×1300×1800 mm
|
3200×1700×2400 mm
|
|
Packing Size
|
2400×1400×1100 mm
|
3350×1850×1550 mm
|
|
Total Weight
|
980 kg
|
2600 kg
|
