Quick Details
-
Brand Name:
-
Genyu
-
Product Name:
-
0.96 Inch Monochrome OLED Module
-
Dot Matrix:
-
128x64, 128*64 Pixels
-
Panel Size:
-
0.96"
-
Drive IC:
-
SSD1306
-
Color:
-
White/ Blue
-
Interface:
-
SPI, customized
-
Module Size:
-
27.5(W)x27.8(H)x2.61(D) mm
-
Viewing Area:
-
23.74 x 12.87 mm
-
Active Area:
-
21.74 x 10.86 mm
-
Drive Method:
-
3.3V~5.0V, or 3.3~4.2V
Quick Details
-
Type:
-
PMOLED
-
Display Size:
-
0.96 inch, standard
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Genyu
-
Product Name:
-
0.96 Inch Monochrome OLED Module
-
Dot Matrix:
-
128x64, 128*64 Pixels
-
Panel Size:
-
0.96"
-
Drive IC:
-
SSD1306
-
Color:
-
White/ Blue
-
Interface:
-
SPI, customized
-
Module Size:
-
27.5(W)x27.8(H)x2.61(D) mm
-
Viewing Area:
-
23.74 x 12.87 mm
-
Active Area:
-
21.74 x 10.86 mm
-
Drive Method:
-
3.3V~5.0V, or 3.3~4.2V

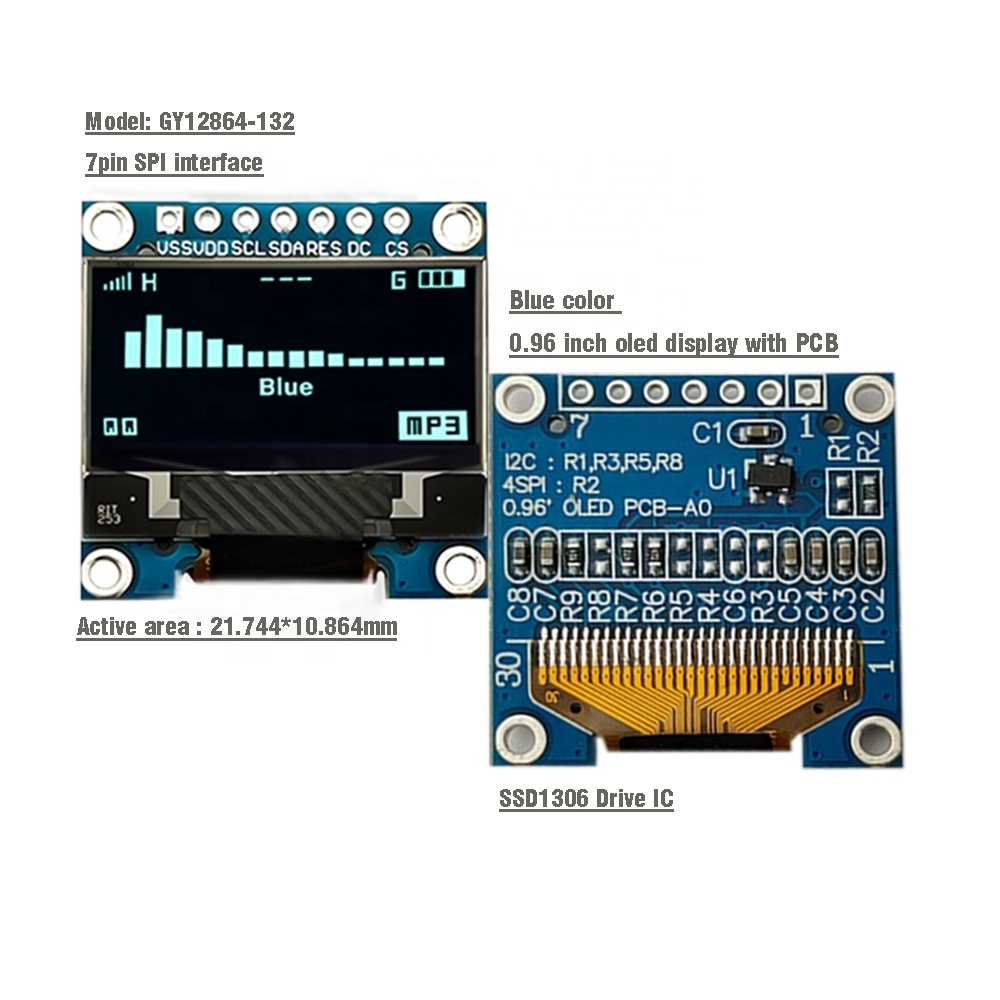

7 Pins SPI Interface 0.96 Inch OLED Display White/Blue SSD1306 128*64 128X64 OLED Module with Board
Model Number: GY12864-108, GY12864-132
Structure: LCM, OLED Module (LCD+FPC+IC+PCB)
| NO. | ITEM | SPECIFICATIONS |
| 1 | Product Name | 0.96 Inch OLED Module with PCB Board |
| 2 | Dot Matrix |
128x64 Dots
|
| 3 | Operating Voltage | 3.3~5.0V or 3.3~4.2V |
| 4 | Operating Temperature | -40~+70 ℃ |
| 5 | PINOUT | 7 pins, SPI Interface |
| 6 | Driver IC | SSD1306, compatible |
| 7 | Display Color | White/Blue |
| 8 | Interface | SPI, customized |
| 9 | Module Size | 27.5(W)x27.8(H)x2.61(D) mm |
| 10 | Viewing Area | 23.74(W) x 12.87(H) mm |
| 11 | AA Size | 21.74(W)x10.86(H) mm |
| 12 | Dot Pitch |
0.17*0.17 mm |
| 13 | RoHS Compliant |
Yes |
A. GY091BD0101, 0.91 Inch 128x32 OLED Module, I2C
B. GY12864-99, 0.96 Inch 128x64 OLED Module, I2C
C. GY12864-96, 1.3Inch 128 x64 OLED Module, I2C
D. GY12864-90S, 1.54 Inch 128x64 OLED Module, SPI
E. GY12832-25, 2.23 Inch 128x32 OLED Module, I2C
F. GY25664-50, 3.12 Inch 256 x64 OLED Module, SPI/ Parallel
