- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
No.1
-
Model Number:
-
ZS-D
-
Dimensions(L*W*H):
-
1470*1240*920mm
-
Weight:
-
350 KG
-
Product name:
-

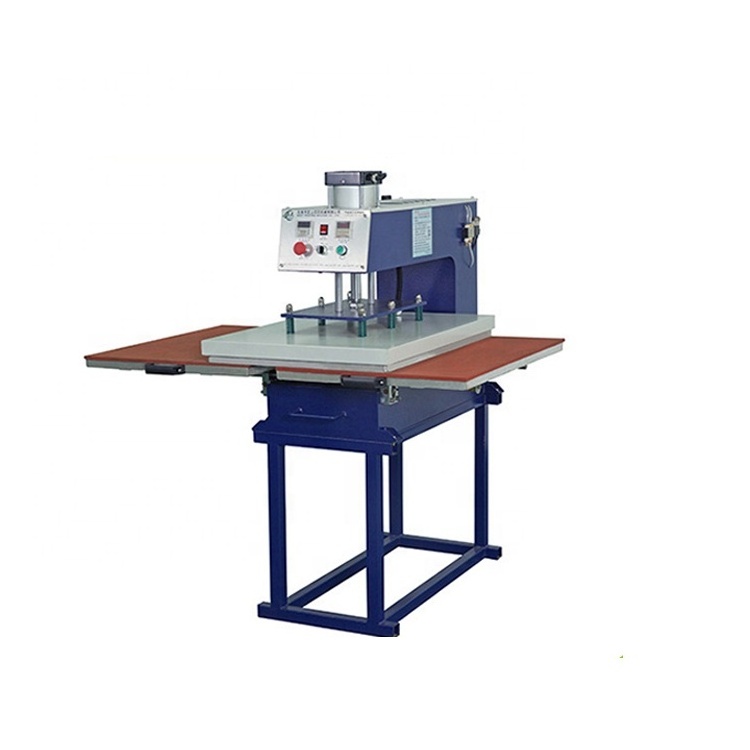

600*800mm Pneumatic flated sublimation heat press machine for t shirt
-
Color:
-
Red Blue
-
Keywords:
-
flated pneumatic sublimation machine
-
packing:
-
wooden
-
size:
-
60*80
-
Temperature:
-
0-400℃
-
Noise:
-
30 QB
-
Application:
-
Cut pieces. t shirt,
-
quality:
-
best quality
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
No.1
-
Model Number:
-
ZS-D
-
Dimensions(L*W*H):
-
1470*1240*920mm
-
Weight:
-
350 KG
-
Product name:
-
600*800mm Pneumatic flated sublimation heat press machine for t shirt
-
Color:
-
Red Blue
-
Keywords:
-
flated pneumatic sublimation machine
-
packing:
-
wooden
-
size:
-
60*80
-
Temperature:
-
0-400℃
-
Noise:
-
30 QB
-
Application:
-
Cut pieces. t shirt,
-
quality:
-
best quality
Specification
| Size(cm) | Voltage(V) | Power(kw) | Time range(Sec) | Temperature(℃) | Table size(cm) | Packing size(cm) | Work stress |
| 38*38 | 220 / 380 | 2.7 | 0-999 | 0-399 | 38*38 | 128*86*80 |
0 - 8 |
| 40*50 | 3.0 | 40*50 | 130*110*80 | ||||
| 40*60 | 3.7 | 40*60 | 130*130*80 | ||||
| 60*80 | 6.0 | 60*80 | 150*170*80 | ||||
| 80*100 | 8.5 | 80*100 | 180*120*170 | ||||
| 100*120 | 10.5 | 100*120 | 190*144*170 | ||||
| 100*150 | 12.5 | 100*150 | 230*190*152 |
Operating & temperature description:
| Hot stamping matetial | Temperature | Time |
| Pure cotton clothes | 180 - 220 ℃ | 15 - 25s |
| Polyester fabric clothes | 180 ℃ | 15s |
| Pearl board | 180 ℃ | 120-180s |
| Metal Pendant | 180 ℃ | 60s |
| Mousr Pad | 180 ℃ | 15s |
| Porcelain | 200 ℃ | 180s |
| Key chain | 180 ℃ | 100s |
1 High quality aluminum heating plate, electric heat pipe and plate body pouring into a body, heat transfer fast, hot and uniform, energy conservation and environmental protection.
2. Single table integrated temperature control, automatic electronic timing, complete automatic warning sound.
3. Adopt mechanical electrical components, imported pneumatic components, precise and durable.
4. Digital display temperature control system, temperature control accurate (+ / - 1 ℃).
5. The workbench is pasted with high performance imported elastic foaming silica gel, soft and smooth without hardening.
6. Bilateral design, double station can improve work efficiency, the effect is better
1.Pressure cylinder 2.Barometer 3.Pressure spring 4.Integral heating plate 5.Aluminum plate 6.Machine base 7.Temperature control 8.Hot stamping time 9.Perform the switch 10.Power on 11.Temperature control 12.emergency switch 13.Manual/automatic switch 14.High temperature silicone board 15.Machine base handle
Application:
Applicable to all kinds of clothing, home textiles, handbags, umbrellas, straw mats, shoes and hats, crafts, gifts, toys, advertising supplies, hot stamp, heat press machine, calender and so on.
Packing Details:
Heat transfer printing machine packing will be made according to customers’ requirements.
Here is safe packing method as below:
Machine will have PVC bag and foam inside ,iron frame outside.
Iron frame is used for all parts of the machine together and protect the macine.
1. Strict quality control
2. Professional suggestion
3. Perfect and complete after-sale service.
4. OEM are available.
5. Quick delivery.
6. Standard Packing
7. Good reputation
8. Professional production and sales team
