Quick Details
-
Table Travel (Y) (mm):
-
500
-
Dimension(L*W*H):
-
2780*2450*2700mm
-
Weight (T):
-
5.5 T
-
Range of Spindle Speed(r.p.m):
-
60 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
10 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
20/20/15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOJIE
-
Voltage:
-
Customized Option
-
Warranty of core components:
-
13 months
-
Table size:
-
1000*500mm
-
T slot qty-width*distance:
-
5*18*90
-
spindle speed:
-
8000rpm
-
spindle nose to table surface:
-
105-655mm
-
Spindle center to Column surface:
-
628mm
-
X/Y/Z axis travel:
-
800*500*550mm
-
Cutting feed speed:
-
10m/min
-
Tool length:
-
250/350mm
-
Machine Type:
-

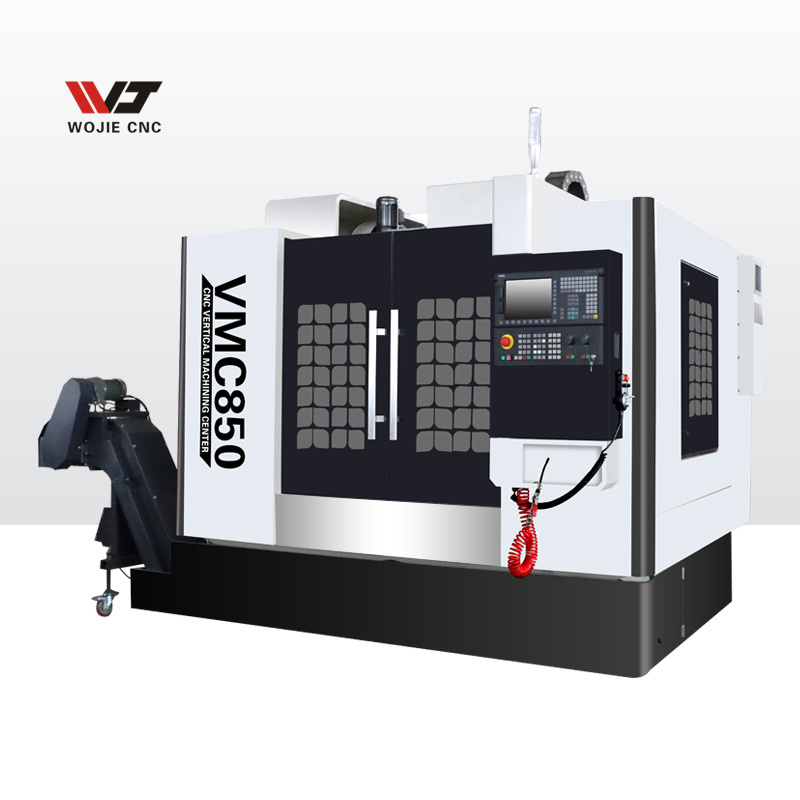

CNC Vertical Machining Center
-
After-sales Service Provided:
-
2 Years
Quick Details
-
Table Size (mm):
-
1000x500
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
800
-
Table Travel (Y) (mm):
-
500
-
Dimension(L*W*H):
-
2780*2450*2700mm
-
Weight (T):
-
5.5 T
-
Range of Spindle Speed(r.p.m):
-
60 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
10 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
20/20/15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOJIE
-
Voltage:
-
Customized Option
-
Warranty of core components:
-
13 months
-
Table size:
-
1000*500mm
-
T slot qty-width*distance:
-
5*18*90
-
spindle speed:
-
8000rpm
-
spindle nose to table surface:
-
105-655mm
-
Spindle center to Column surface:
-
628mm
-
X/Y/Z axis travel:
-
800*500*550mm
-
Cutting feed speed:
-
10m/min
-
Tool length:
-
250/350mm
-
Machine Type:
-
CNC Vertical Machining Center
-
After-sales Service Provided:
-
2 Years
Product Description
Product Application
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Product main technical specifications
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Product main technical specifications
Specifications
|
|
Units
|
VMC850
|
|
||
Table size
|
|
mm
|
1000x500
|
|
||
X axis travel
|
|
mm
|
800
|
|
||
Y axis travel
|
|
mm
|
500
|
|
||
Z axis travel
|
|
mm
|
500
|
|
||
Max. worktable load
|
|
kg
|
500
|
|
||
T slot(number-width-pitch)
|
|
|
5-18x100
|
|
||
Max. spindle speed
|
|
rpm
|
8000(Optional:10000 )
|
|
||
Spindle taper
|
|
mm
|
BT40
|
|
||
Main motor power
|
|
kw
|
7.5/11
|
|
||
X/Y/Z rapid traverse speed
|
|
m/min
|
24/24/20
(Optional:48/48/36 ) |
|
||
Cutting feed speed
|
|
mm/min
|
1-8000
|
|
||
Guide rail type
|
|
|
Linear rail
|
|
||
Distance from spindle axis to column surface
|
|
mm
|
525
|
|
||
Distance between spindle nose and worktable surface
|
|
mm
|
130-630
|
|
||
Positioning accuracy
|
|
mm
|
±0.015
|
|
||
Repeat positioning accuracy
|
|
mm
|
±0.005
|
|
||
Tool magazine
|
|
|
Arm 24
|
|
||
Max. tool diameter
|
|
mm
|
φ78 (Adjacent)/ φ120(Apart)
|
|
||
Max.tool weight
|
|
kg
|
8
|
|
||
Machine weight
|
|
kg
|
5600
|
|
||
Overall dimension
|
|
mm
|
2600X2300X2800
|
|
Standard Accessories:
Optional Accessories:
Armless type tool magazine System:FANUC,Siemens,GS etc
Automatic lubrication system Arm type ATC
Cooling system 4axis or 5axis
Heat Exchanger Automatic chip conveyor
Pneumatic system Spindle center coolant
Full Cover machine enclosure Higher speed of Spindle
Air system/ Air gun Air conditioner
Armless type tool magazine System:FANUC,Siemens,GS etc
Automatic lubrication system Arm type ATC
Cooling system 4axis or 5axis
Heat Exchanger Automatic chip conveyor
Pneumatic system Spindle center coolant
Full Cover machine enclosure Higher speed of Spindle
Air system/ Air gun Air conditioner
Detailed Images
Related Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to
you.after we got your balance payment. we will send the machine to you.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be
some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can
place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
