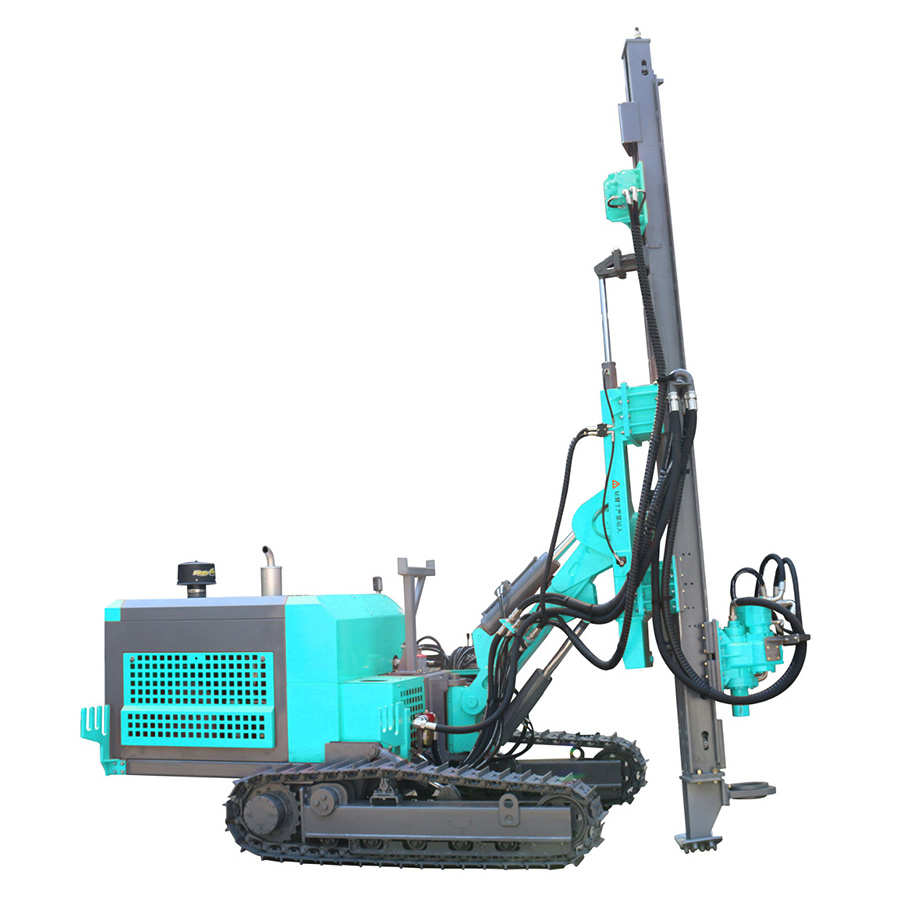

The HFYX-420GF and HFYX- 430GF photovoltaic drilling rigs are designed with high-torque rotary heads, with a torque of up to 8000N/M, to meet the needs of Φ176-300-400mm large-aperture and ultra-large-aperture photovoltaic piles;
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hanfa
-
Weight:
-
6100 kg
-
Dimension(L*W*H):
-
7000*2280*2700, 7000*2280*2700
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Pile Driving Machine
-
Application:
-
Solar Photovoltaic
-
Advantages:
-
Fast Pile Driving Speed
-
Suitable pile:
-
Concrete Precast Pile
Quick Details
-
Marketing Type:
-
New Product 2023
-
Efficiency:
-
High Efficiency
-
Piling Speed(m/min):
-
55-110 r/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hanfa
-
Weight:
-
6100 kg
-
Dimension(L*W*H):
-
7000*2280*2700, 7000*2280*2700
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Pile Driving Machine
-
Application:
-
Solar Photovoltaic
-
Advantages:
-
Fast Pile Driving Speed
-
Suitable pile:
-
Concrete Precast Pile
Products Description
Model of Drill Rig
|
HFYX-420GF
|
HFYX-430GF
|
Weight of Machine
|
6100KG
|
7000KG
|
Outer Dimensions
|
7000x2280x2700 mm
|
7200x2230x2700 mm
|
Supporting Power
|
YCF36-100 74kw
|
YC4DK-100 73.5KW
|
Drilling Hardness
|
F=6~20
|
F=6~20
|
Drilling Diameter
|
200-350mm
|
200-350mm
|
Rotation Speed
|
55-110 r/min
|
36-105 r/min
|
Rotation Torque (MAX)
|
8000N.m
|
8000N.m
|
Pull up Force (MAX)
|
25KN
|
25KN
|
Method of Feed
|
Motor Chain
|
Motor Chain
|
Feed Stroke
|
3875mm
|
3875mm
|
Feed Force(MAX)
|
25KN
|
25KN
|
Working Air Pressure
|
0.7~2.5Mpa
|
0.7~2.5Mpa
|
Climbing Capacity
|
35°
|
35°
|
Ground Clearance
|
310mm
|
310mm
|
Tilt Angle of Beam
|
Over180°
|
Over180°
|
Swing Angle of Boom
|
left50°right50°/left15°right95°
|
left50°right50°/left15°right95°
|
Swing Angle of Drill Boom
|
Up41° Down31°
|
Up 48° Down37°
|
Leveling Angle of Track
|
±10°
|
±10°
|
The HFYX-420GF and HFYX- 430GF photovoltaic drilling rigs are designed with high-torque rotary heads, with a torque of up to 8000N/M, to meet the needs of Φ176-300-400mm large-aperture and ultra-large-aperture photovoltaic piles;
The sunshade is equipped as standard, which is suitable for all kinds of weather, improves the comfort of the operator, and is beautiful and practical.
The drilling rig is equipped with a hoist as standard, which has a strong climbing ability and can meet the original steep slope working environment with the cooperation of the hydraulic winch.
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
