Quick Details
-
Brand Name:
-
Dragon Diamond, Dragon Diamond
-
Weight (KG):
-
3 KG
-
Model Number:
-
Protective Windows
-
Material:
-
High Purity Fused Silica
-
Shape:
-
Plane Lens
-
Usage:
-
Fiber Laser Machine
-
Product name:
-
galvanometer scanner
-
Marking Speed:
-
8000mm/s
-
Setting Time:
-
0.4ms
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
fiber marking machine parts
-
Marketing Type:
-
New Product 2021
-
Brand Name:
-
Dragon Diamond, Dragon Diamond
-
Weight (KG):
-
3 KG
-
Model Number:
-
Protective Windows
-
Material:
-
High Purity Fused Silica
-
Shape:
-
Plane Lens
-
Usage:
-
Fiber Laser Machine
-
Product name:
-
galvanometer scanner
-
Marking Speed:
-
8000mm/s
-
Setting Time:
-
0.4ms
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None

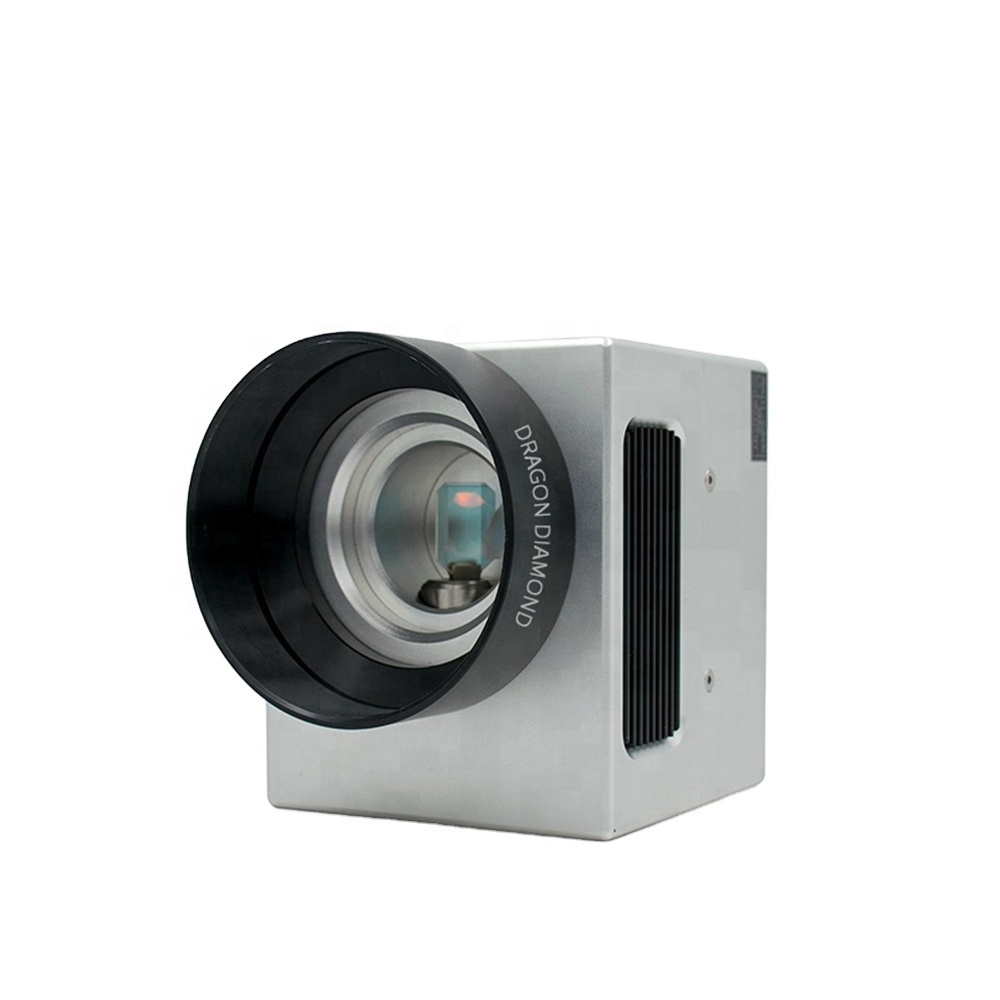

Fiber 3d galvo scan head RC1001 SG7110 7210 10.6um &1064nm fiber Scanning Galvanometer for fiber laser marking machine parts
|
product name |
SG7110 |
|
Working Temperature |
0-45 ℃ |
|
Linearity |
99.90% |
|
Setting Time |
≤ 0.4ms |
|
Scale Drift |
40PPM/C |
|
Zero Drift |
<15 μ Rad./ ℃ |
|
Long-term Drift Over 8 Hours |
<0.5mRad |
|
RMS Current |
2.0A |
|
Peak Current |
15A(Max) |
|
Maximum Scan Angle |
± 15 ° |
|
Storage Temperature |
-10 to+ 60 ℃ |
|
Resolution |
12urad |
|
Repeatability |
8urad |
|
Input Aperture |
10.0mm |
|
Beam Displacement |
13.4mm |
|
Motor Weight |
120g |
|
Frequency |
≤ 800Hz |
