Mobile lighting towers provide ample light for outdoor activities, and it is ideal equipment for huge outdoor gatherings, sports events, outdoor festivals and outdoor celebrations etc.
- Product Details
- {{item.text}}
Quick Details
-
CRI (Ra>):
-
0
-
Input Voltage(V):
-
120-240V
-
Lamp Luminous Flux(lm):
-
0
-
Warranty(Year):
-
1
-
Working Temperature(℃):
-
40
-
Working Time (hours):
-
70
-
Controller:
-
Automatic, LCD display
-
Max. Height:
-
5m, 7m, 9m
-
Type of Lights:
-
Metal Halide or LED
-
Mast lifting & extension:
-
Manual/Hydraulic/Electric
-
Voltage:
-
230V
-
Frequency:
-
50HZ/60HZ
-
Certificate:
-
CE, EPA, EU stage
-
Warranty:
-
1year or 1000 running hours
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Ai Power
-
Model Number:
-
ALT10
-
CRI (Ra>):
-
0
-
Input Voltage(V):
-
120-240V
-
Lamp Luminous Flux(lm):
-
0
-
Warranty(Year):
-
1
-
Working Temperature(℃):
-
40
-
Working Time (hours):
-
70
-
Controller:
-
Automatic, LCD display
-
Max. Height:
-
5m, 7m, 9m
-
Type of Lights:
-
Metal Halide or LED
-
Mast lifting & extension:
-
Manual/Hydraulic/Electric
-
Voltage:
-
230V
-
Frequency:
-
50HZ/60HZ
-
Certificate:
-
CE, EPA, EU stage
-
Warranty:
-
1year or 1000 running hours
Product Description

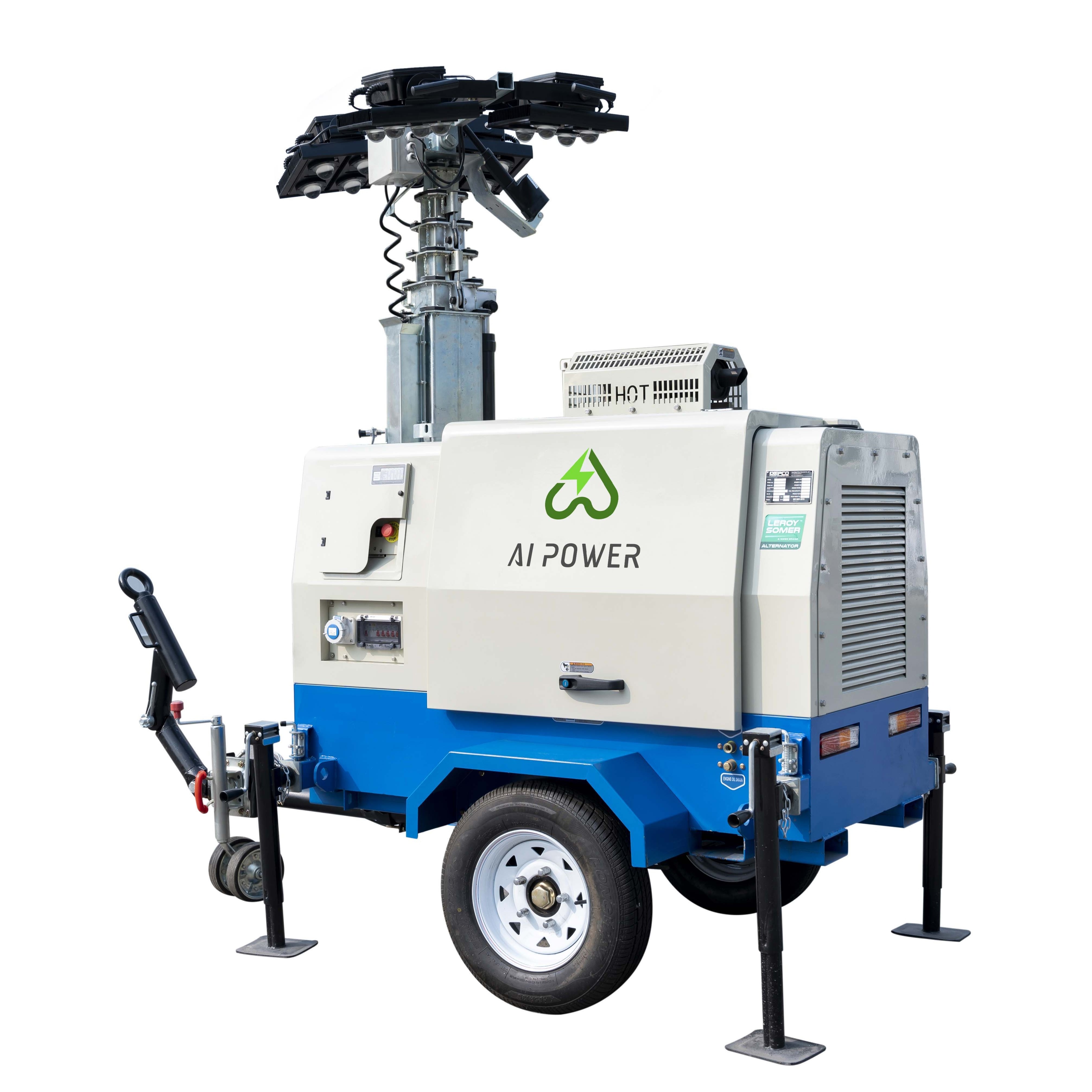

9m Mast 4x1000w Mobile Light Tower Diesel Generator with 5kw 8kw 10kw Lamp Metal Power Lighting Engine
Ai Power focus on the industry in innovative light tower solutions. Our vertical mast and compact light towers have revolutionized industrial mobile lighting. Easy to setup, operate and maintain, our light towers provide maximum power in a minimal footprint. With extended run times and service intervals, LED safety features, innovative engine technologies and programmable controls, our products can be trusted to maximize uptime and return on your investment.
Specification:
4* 200W, 4*280W 4*350W LED lights
|
Light & Battery |
Light style & IP grade
|
LED & IP66
|
|
|
Lights number & power
|
4*100W
|
|
|
LED luminous efficiency（LM/W）
|
110
|
|
|
LED life-span (Hrs)
|
＞50000
|
|
|
Batteries style
|
Deep cycle and maintenance-free lead-acid batteries
|
|
|
Batteries number & capacity (Ah)
|
4 x 200
|
|
|
Battery & lights rated voltage (V，DC)
|
24
|
|
|
Solar module number & most power (W)
|
4X250
|
|
|
Solar module tilt adjusting
|
0°～ 25°
|
|
|
Solar module tilt adjusting method
|
Manually
|
|
Mast & Trailer |
Height (Mast extended fully, m)
|
6.2
|
|
|
Mast extention
|
Manually
|
|
|
Light tilt
|
Manually
|
|
|
Mast sections number
|
5
|
|
|
Trailer suspension system & wheel rim
|
Leaf springs & single axle without brake
|
|
|
Tow bar
|
Retractable & adjustable supporting wheel tow bar
|
|
|
Stabilizing legs & number
|
4 pcs extendable bar with manually retractable jacks
|
|
|
Wheel's rim size & tires
|
14" rim with regular tires
|
|
|
Tow adapter
|
2" ball or 3" ring
|
|
|
Tail lights
|
Tail reflector
|
|
Other Features |
Length x Width x Height (mm)
|
3400 x 1350 x 2160
|
|
|
Weight without any options (kg)
|
1050
|
|
|
Max. load quantity in a 40 feet container
|
7
|
Product Details
Ai Power Lighting towers
Engine Features:
1. World most famous brand diesel engine: Kubota/Mitsubishi/UK, China engine etc.
2. Mufti-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Meccalte etc
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
Soundproof/Slient Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and safety
Control Panel:
1. Automatic control panel(AMF), LCD display
2. Protection systems
3. Emergency stop
Lighting towers for events
