Quick Details
-
Model No.:
-
WFS10
-
Switch:
-
10A(max), 125/250VAC
-
Max. static pressure:
-
10 bar (20 bar for customer-made)
-
Pressure connection:
-
1/4"SAE(7/16"-20UNF),G1/4"NPT for optional
-
Output:
-
one SPDT dry contact output, one or two for optional factory set
-
Protection class:
-
IP65
-
Electrical connection:
-
DIN 43650 /direct connect(105℃ resistance
-
Max. pressure difference:
-
5 bar
-
Media temperature range:
-
-20℃~93℃
Quick Details
-
Media Type:
-
water , gas,oil
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
air conditioning differential pressure water flow switch price
-
Model No.:
-
WFS10
-
Switch:
-
10A(max), 125/250VAC
-
Max. static pressure:
-
10 bar (20 bar for customer-made)
-
Pressure connection:
-
1/4"SAE(7/16"-20UNF),G1/4"NPT for optional
-
Output:
-
one SPDT dry contact output, one or two for optional factory set
-
Protection class:
-
IP65
-
Electrical connection:
-
DIN 43650 /direct connect(105℃ resistance
-
Max. pressure difference:
-
5 bar
-
Media temperature range:
-
-20℃~93℃
Product Description

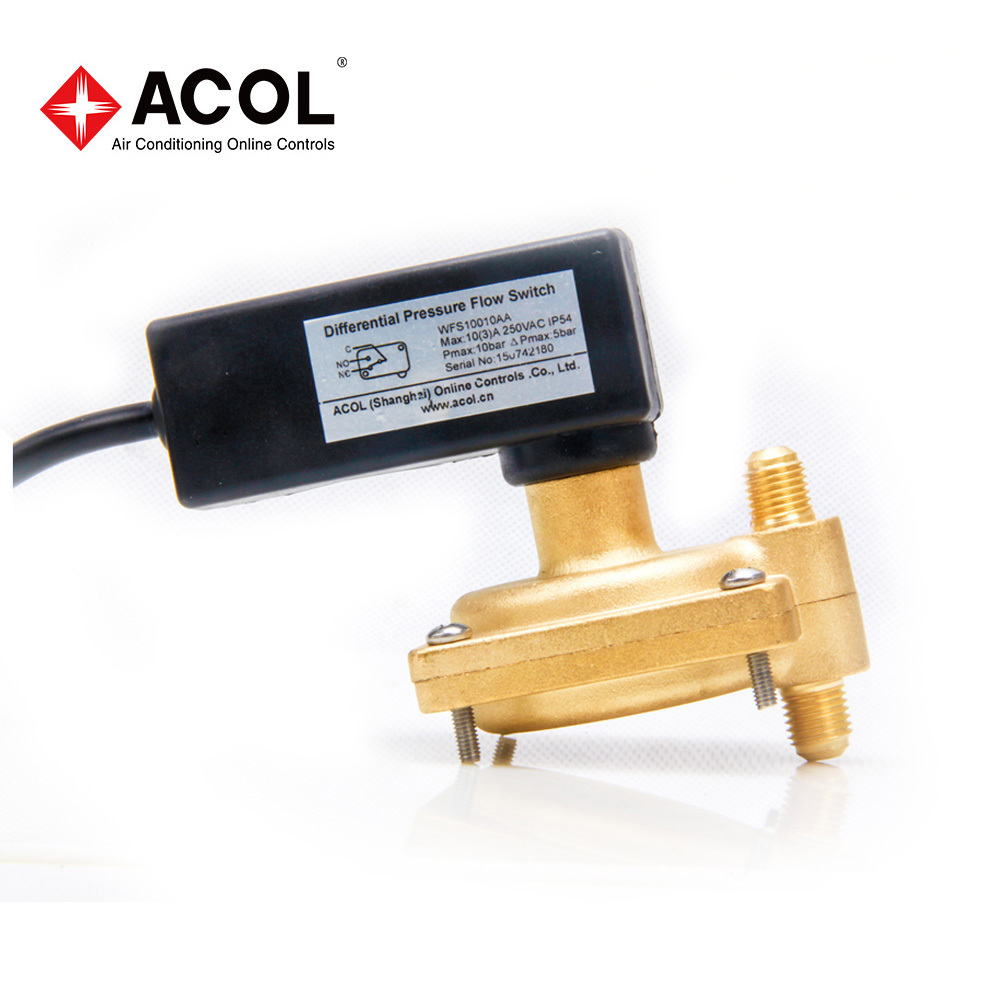

air conditioning differential pressure water flow switch price
| Model No.: | WFS10 |
| Screw type : | AA , BB , BA |
| Max. pressure difference : | 5 bar |
| Set point repeatability tolerance: | ±1% |
| Set point : |
single fixed |
| Set point parameters | ||
| Model | Set point | Hystersis |
| WFS10002 | 2kPa | 1kPa |
| WFS10003 | 3kPa | 1.5kPa |
| WFS10004 | 4kPa | 1.5kPa |
| WFS10005 | 5kPa | 2kPa |
| WFS10006 | 6kPa | 2kPa |
| WFS10008 | 8kPa | 2.5kPa |
| WFS10010 | 10kPa | 3kPa |
| WFS10012 | 12kPa | 3kPa |
| WFS10013 | 13kPa | 3kPa |
| WFS10014 | 14kPa | 3kPa |
| WFS10016 | 16kPa | 3.5kPa |
| WFS10017 | 17kPa | 4kPa |
| WFS10020 | 20kPa | 4.5kPa |
| WFS10025 | 25kPa | 5kPa |
| WFS10030 | 30kPa | 5kPa |
| WFS10035 | 35kPa | 7kPa |
| WFS10040 | 40kPa | 8kPa |
