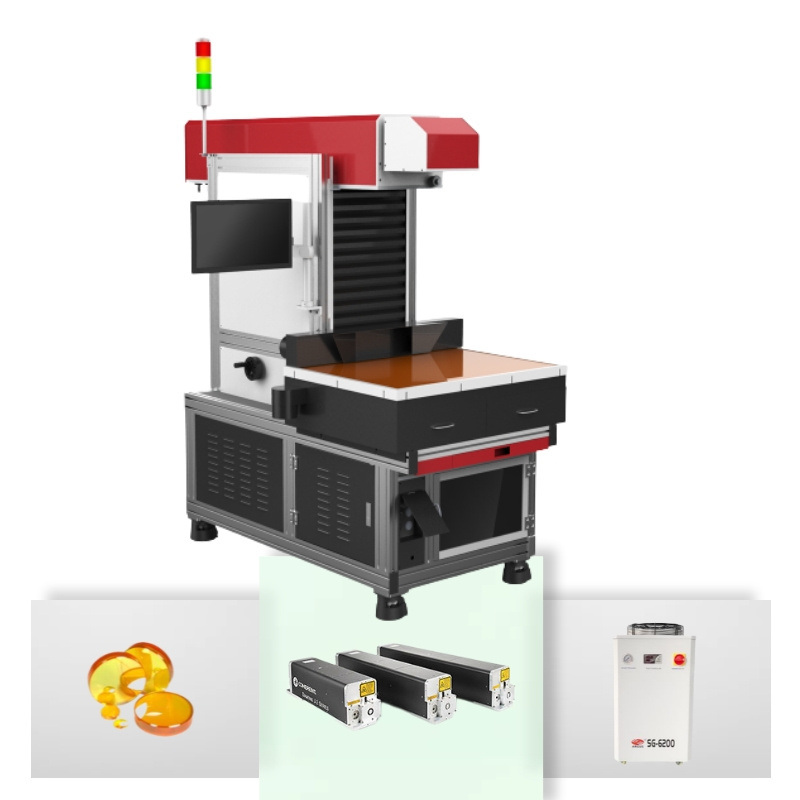

Sunic Hot Sale Dynamic CO2 laser Marking Machine for Paper Leather card laser engraving

Sunic Hot Sale Dynamic CO2 laser Marking Machine for Paper Leather card laser engraving

FOB Reference Price: Get Latest Price

≥1 Sets

US $32000

≥5 Sets

US $29000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: WATER COOLING

Control Software:: Argus software

Place of Origin:: China

Brand Name:: ARGUS

Marking Head Brand:: CTI galvo scanner

Weight (KG):: 800 KG

Marking Area:: 800*800mm

Core Components:: laser source

Model No.:: SCM2000

Marking Method:: Scanning Marking

Life span:: Over 20000 Hours

Output Power:: 150w 250W, 350W,

Max Idle Speed:: 7000mm/s

Power Consumption:: 5kw~7kw

Laser source:: US Coherent co2 laser source

System:: Windows

After-sales Service Provided:: Online Video Technical Support

Quick Details

Working Accuracy:: 0.01mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, JPG

Laser Type:: CO2

Cooling Mode:: WATER COOLING

Control Software:: Argus software

Place of Origin:: China

Brand Name:: ARGUS

Marking Head Brand:: CTI galvo scanner

Weight (KG):: 800 KG

Marking Area:: 800*800mm

Core Components:: laser source

Model No.:: SCM2000

Marking Method:: Scanning Marking

Life span:: Over 20000 Hours

Output Power:: 150w 250W, 350W,

Max Idle Speed:: 7000mm/s

Power Consumption:: 5kw~7kw

Laser source:: US Coherent co2 laser source

System:: Windows

After-sales Service Provided:: Online Video Technical Support

Main Features

1.High marking speed: maximum 7000mm/s marking speed with high-speed galvanometer scanning. Suitable for industrial mass production.

2.Large marking area: Max marking area 600*600mm ,can realize marking, punching, cutting, carving process.

3.Good stability of the equipment: Adopted the full closed optical path, imported of CO2 R.F laser source, strict multiple protection control design, ensure the stability of the entire equipment.

4.Red light indicator, makes you find out the working area easily.

Product Parameter

Model		SCM2000
Max working Area		600*600mm (Optional)
Laser power		150watts/250 watts/350watts
Power Consumption		≤ 5-7kWh
Life Span		Over 20000 hours
Marking Speed		≤7000mm/s
Worktable		MDF/Strip/Honeycomb worktable
Laser Source		US Coherent RF Metal Laser Source
Laser Wavelength		10.64μm
Laser Frequency		20kHz~200kHz
Focusing method		3D dynamic focusing system
System Support		Windows
Output Compatibility		Auto CAD, Photoshop, CorelDRAW etc
File Formats		PLT, DXP, BMP, JPG, AI etc
Software Character		Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting
Power Supply		110V~380V/50Hz~60Hz
Cooling Way		Circulation of Water Cooling

Galvo Scanning System

3D dynamic Galvo head,one time scan area could reach to 800*800mm.
3D dynamic galvanometer
control system ensure the
best processing results .

RF Laser Metal Tube

Original imported metal

RF laser tube with high

laser power,stable laser generation and life time

of more than 20000hrs.

CCD Optional

CCD positioning function
ensures accurate and reliable position measurement greatly improves the production efficiency of the factory and saves labor.

Worktable

Large marking area :
Max marking area

800*800mm.

Top 1 Wedding Invitation Cards Laser Cutting Machine SCM2000 Model

CO2 Dynamic Laser Marking Machine adopts dynamic focusing technology, make the laser dot more fine, faster hollowing speed,better effect, suitable for a wide range of engraving or cutting, here listed advantages as followings:

1.Compared with the traditional marking machine of after-focusing technology, no need to change the different Fθ lens to obtain different marking scope, and laser dot more fine.
2.Fully enclosed free maintenance laser optical system, no need to adjust, can be using after installation.
3.Imported R.F laser tube, high power, good beam quality, stable power, life of 20000 hours.
4.High precision, high speed marking / cutting performance, work efficiency is increased by 20% than similar models.

5.professional temperature cycle of industrial cooling water system makes the machine more stable operation, lower power consumption.
6.Strict and Multiple protection control design, widely applicable environment temperature, ensure the laser marking system, 24 hours of continuous work reliably.

About Sunic Group

Wuhan Sunic Group are a professional laser machines and solar panel products lines equipment manufacturer since 1998.We are specialized in design, research, manufacture, sales and service for laser machines. Sunic Group would like to be customer's technical consultant, support in laser&solar equipment to make further development and progress together.

We supply customized solution for different materials processing , such as invitation cards, wedding cards, pop up cards, Pop up books,candy box,paper products,acrylic, PMMA, LGP, jeans wash,leather, Fabric, textiles ,wood,MDF,laminate materials,marble, package film, metalp, plastic products and so on.

What kind of laser machine and model should I choose?

You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need.

What kind of materials does the laser machine can process?

We have different laser machines, such as Fiber laser, CO2 Laser, UV Laser, Green Laser. Normally fiber laser can process metal and plastic. CO2 laser is for processing non- metallic materials, such as Acrylic, PMMA, Wood, Glass, Leather, Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.

Is it easy to operate?

We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software. Or we can talk by phone email or other contact ways.

What s your guarantee. in case the machine breaks down?

The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

How will you do the after- sale service?

We will firstly check your problems online through Teamviewer, E-mail, Whatsapp or other contact way, if it is easy to handle it, we will guide you onlinet to fix it or send you the spare parts for replacement.

What is your equipment lead time?

Fiber laser marking machine lead time is around 7 working days.CO2 laser engraving&cutting machine lead time is around 2-3 weeks. 3D dynamic CO2 laser marking machine lead time is around 10 working days.
