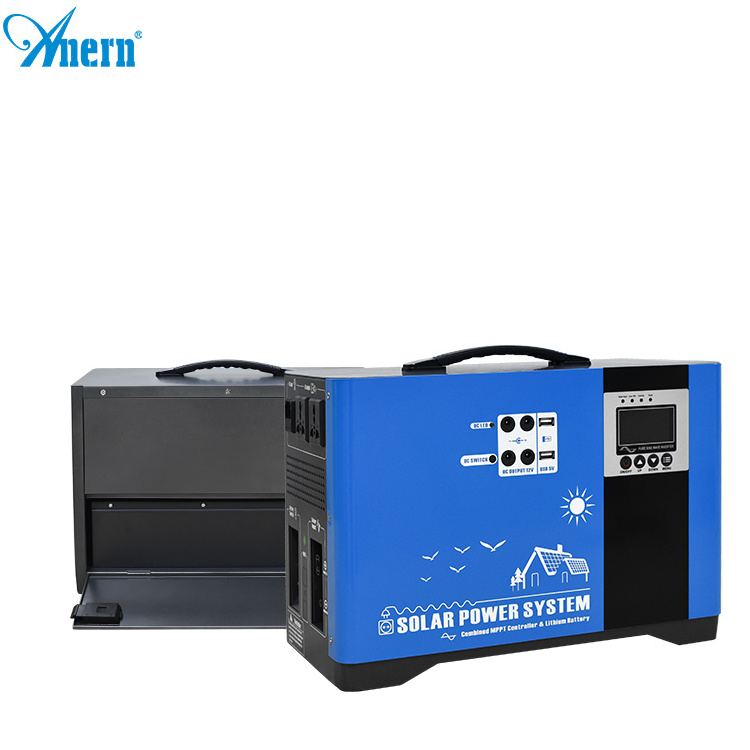

industrial commercial solar power energy generator

industrial commercial solar power energy generator

FOB Reference Price: Get Latest Price

≥500 Pieces

US $0.35

≥1000 Pieces

US $0.25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Ground Mounting

Certificate:: CE,ROHS

Place of Origin:: Guangdong, China

Brand Name:: Anern

Model Number:: AN-MPSG-N

Output Voltage (V):: AC110V/220V

Output Frequency:: 50~60HZ

Work Time (h):: 48

RATED POWER:: 500W/1000W/2000W/3000W/5000W

Display:: Digital LCD

Communication:: RS232

Heat Dissipation/Cooling:: Temperature control by intelligent exhaust fan

Frequency:: 50/60Hz

Output Voltage:: 220VAC

Battery Voltage:: 12V/24V/48V

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon, Polycrystalline Silicon

Battery Type:: Lithium Ion

Controller Type:: MPPT

Mounting Type:: Ground Mounting

Certificate:: CE,ROHS

Place of Origin:: Guangdong, China

Brand Name:: Anern

Model Number:: AN-MPSG-N

Output Voltage (V):: AC110V/220V

Output Frequency:: 50~60HZ

Work Time (h):: 48

RATED POWER:: 500W/1000W/2000W/3000W/5000W

Display:: Digital LCD

Communication:: RS232

Heat Dissipation/Cooling:: Temperature control by intelligent exhaust fan

Frequency:: 50/60Hz

Output Voltage:: 220VAC

Battery Voltage:: 12V/24V/48V

Related Products

One Product Description

Key Features:

◆ Excellent performance because of double CPU intelligent control technology;
◆ 2000 cycles lithium battery and has a 5 years service life ;
◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆ Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Overall automatic protection and alarms induding AC output overload protection. short arcuit protection. Etc;
Specifications:

Model	MPSG-N500	MPSG-N1000
Battery Voltage	12V	24V
Inverter
RATED POWER	500W	1000W
Input Voltage Range	110/220VAC±10%
Input Frequency	45-65Hz
Output Voltage	110/120/220/240VAC(optional)
Output Frequency	50/60Hz
Output Wave	Pure Sine Wave
Speficifation Of Built-in LiFePo4 Lithium Battery	600WH	1200WH
Communication	RS485/WIFI(optional)
Solar Input
Max. PV Power	240W	480W
Range Of Charging Voltage	15-90VDC	30-90VDC
Rated Charge Current	20A(MPPT)
DC Output
5VDC USB Output	2个/MAX 1A
12VDC Output Ports	2个/MAX 5A

Application

Two Product Description

Features:
◆ Excellent performance because of double CPU intelligent control technology;
◆ Built-in LiFePo4 lithium battery;
◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆ Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Overall automatic protection and alarms induding AC output overload protection . short arcuit protection . Etc;

Item. NO.	AN-MPSG
Output power	500W/1000W/2000W/3000W/5000W
Input voltage	AC220V or customized (110V)
Output voltage	220VAC
Charging current	20A/30A
Battery Style	2000 cycles lithium battery
Battery capacity	600WH/1200WH/2260WH/2600WH/4500WH
Charging methods	5VDC-USB / 12VDC output port
Product Size	420220270mm(500W) 430230330mm(1000W) 538330481mm(2000W) 545507580mm(3000W~5000W)
Gross Weight	16kg/23kg/80kg/83kg
Application	Household Appliances, Outdoor Camping, Barbecue, Self-driving Tour, Office, Live, Emergency Supply, etc.
Warranty	3 years

Customer Feedback

Anern Factory

The production of solar energy storage systems requires the integration of the solar controller, solar inverter and solar battery.Each system part is tested independently during the production process. After finishing the machine assembling, the entire machine will be tested with charge and discharge to ensure that the machine can operate normally after it is delivered to the

customer.
