Quick Details
-
Traction cable length:
-
12m
-
Linear velocity:
-
0.3 m/s
-
cable diameters:
-
4.9~13.2mm
-
belt thickness:
-
≤43mm
-
cable pitches:
-
10~25mm
-
cable diameter:
-
4.9~13.2mm
-
rubber cover thickness:
-
can be up to 12mm on the running side, up to 25mm on the carrying side
-
Factory since 1996:
-
rich experience,mature production, strict QC
-
Export since 2008:
-
good feedback, repeated orders from worldwide customers
Quick Details
-
Type:
-
steel cord belt splicing tools
-
Place of Origin:
-
Henan, China
-
Product name:
-
belt splicing tools conveyor rubber belt steel cord stripping machine
-
Traction cable length:
-
12m
-
Linear velocity:
-
0.3 m/s
-
cable diameters:
-
4.9~13.2mm
-
belt thickness:
-
≤43mm
-
cable pitches:
-
10~25mm
-
cable diameter:
-
4.9~13.2mm
-
rubber cover thickness:
-
can be up to 12mm on the running side, up to 25mm on the carrying side
-
Factory since 1996:
-
rich experience,mature production, strict QC
-
Export since 2008:
-
good feedback, repeated orders from worldwide customers

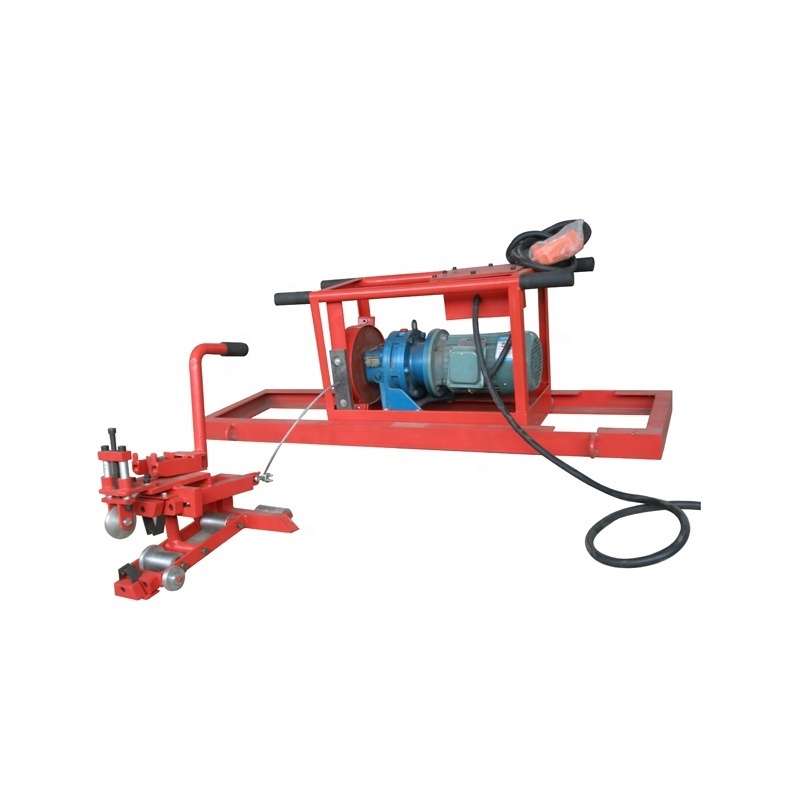

Belt splicing tools conveyor rubber belt steel cord stripping machine
We're a manufacturer for conveyor accessories since 1996. Our products sell very well, we exported to 50 countries since 2008.Proven specialty, consistency and quality. Our main products: wear resistant liner, belt cleaner, skirt board, pulley lagging, impact bar, etc.
Splicing tools of steel cord belts is used to strip off the steel cords from conveyor steel cord belt which is to be spliced.
Technical Data:
1.Voltage:380V
2.Power:1.5kw
3.Linear velocity:0.3m/s
4.Cable diameters:φ4.9~13.2mm
5.Weight:103.8kg(work device:15.3kg, traction device:88.5kg)
6.Belt thickness:≤43mm
Methods
1.Firstly, find out the joints of the steel cord conveyor belt,and peel off 200mm steel cords with conventional methods.
2.Choose suitable upper and lower knives according to the steel rope diameter and the pitches, and then set the stripping machine.
3.The upper knife holds down the first steel rope, and the lower knife drags the second, then make the traction device work.The cable stripping machine can peel off the covering rubber evenly.
Upper and Lower Knives
1) 22-Year Manufacturer, rich experience ensure quality and consistency.
2) Customer feedback is very good: still new after working for 1 year
3) strict control in QC, advnaced facilities, mature production line
4) 9-Year exporter,ceramic rubber liner got very good feedback.Repeated orders from worldwide customers.
Factory since 1996
All types of belt cleaners and pulley lagging
Skirt board, Impact bar, Wear liner, Cord stripper, Custom Rubber & PU products
Production Line & Facilities
Advanced facilities and mature produciton line ensure productivity, quality and consistency. Your reliable partner
Rubber Machine: Internal Mixer
10m x 2m Vulcanizing Machine for Rubber Sheet/ Rubber lagging
Our rubber lagging size is produced in 10m x 2m without any splices
Facilities for rubber and Polyurethane products
Our Laboratory & Testing Machine
Safety Certificate of Approval for Mining Products
